WPMtekDatasheet (PDF)

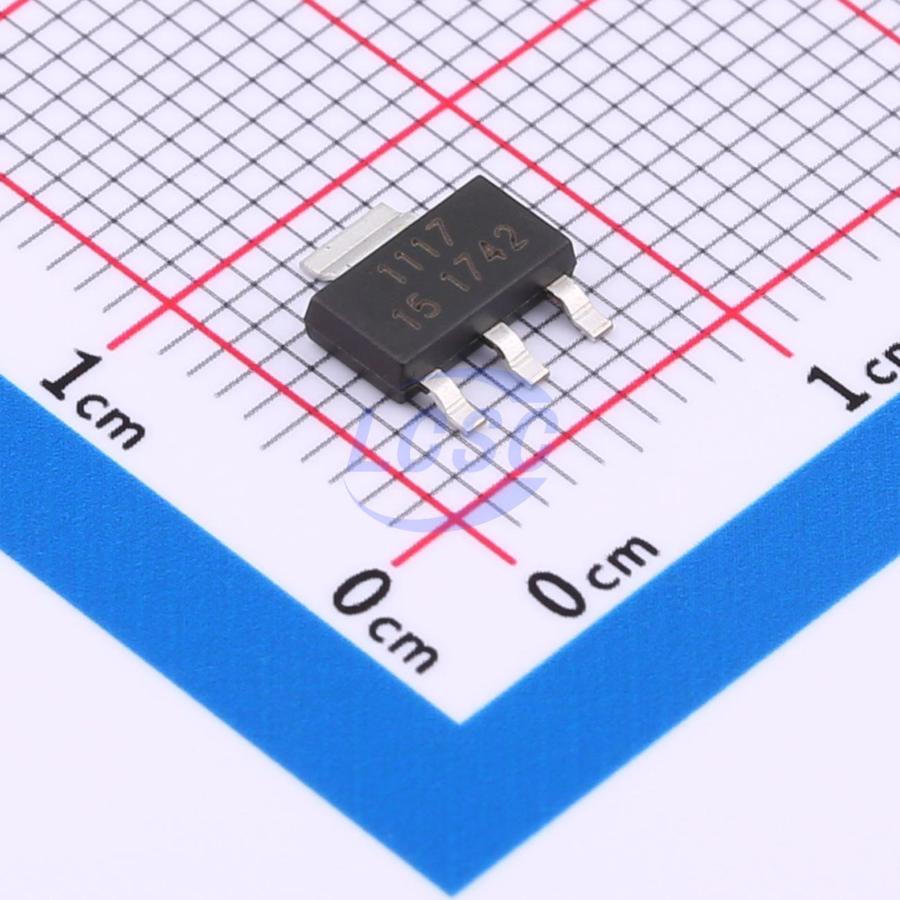

AMS1117-1.5
1.5V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3LROHS CompliantActive
1A Bipolar Linear Regulator
- Manufacturer
- WPMtek
- Manufacturer part #
- AMS1117-1.5
- Store part #
- C16197303
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C16197303
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.51 | ₹75.10 |
| 100+ | ₹5.98 | ₹598.00 |
| 300+ | ₹5.21 | ₹1,563.00 |
| 2,500+ | ₹4.45 | ₹11,125.00 |
| 5,000+ | ₹4.00 | ₹20,000.00 |
| 10,000+ | ₹3.76 | ₹37,600.00 |
10 × ₹7.51
₹75.10
excl. GST
₹88.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-1.5
₹75.10 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.236 g
Overview
Applications
- Computer motherboards, graphics cards
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL equipment
- Post-stage voltage regulation in switching power supplies
Key features
- Three-terminal adjustable output and fixed voltage output versions available (fixed voltages include 1.2V, 1.8V, 2.5V, 3.3V, 5V, etc.; other voltage specifications available upon custom request)
- Maximum output current: 1A
- Output voltage accuracy: ±2%
- Operating voltage range up to 12V
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature TA range: -20℃ ~ 125℃
