GREENMICRODatasheet (PDF)

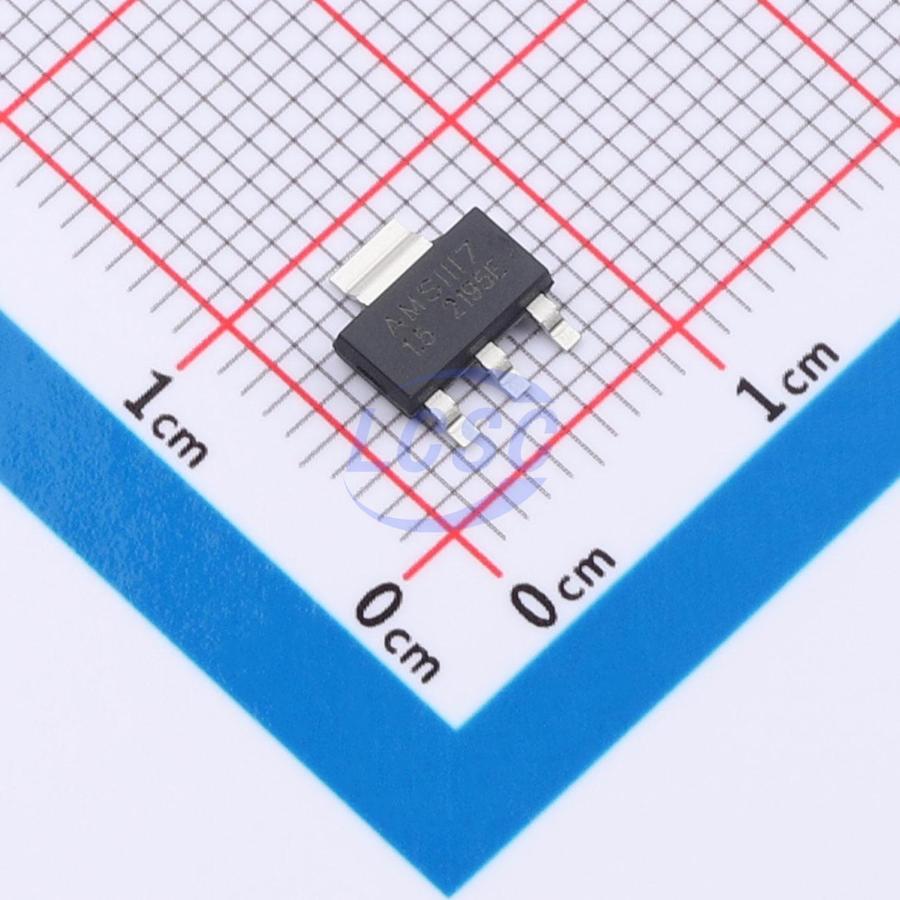

AMS1117-1.5OEC
1.5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- AMS1117-1.5OEC
- Store part #
- C50313799
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C50313799
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.71 | ₹94.20 |
| 200+ | ₹3.63 | ₹726.00 |
| 600+ | ₹3.03 | ₹1,818.00 |
| 2,500+ | ₹2.67 | ₹6,675.00 |
| 10,000+ | ₹2.37 | ₹23,700.00 |
| 20,000+ | ₹2.20 | ₹44,000.00 |
20 × ₹4.71
₹94.20
excl. GST
₹111.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-1.5OEC
₹94.20 for 20 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.334 g
Overview
1117-1.0A is a low dropout linear voltage regulator with 1.0A output current capability. The series includes both fixed and adjustable output voltage versions, with output voltage accuracy of ±1.5%. To ensure stability of the IC and power supply system, it incorporates built-in thermal protection and current limiting protection, and employs trimming techniques to guarantee output voltage accuracy. Available in SOT-223, TO-252-2L, SOT-89, and TO-220 packages.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Switching power supply post-stage regulators
Key features
- Adjustable output voltage from 1.25V to 13.8V with only two external resistors
- Fixed voltage output: 1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5.0V
- Output current capability: 0.8A
- Output voltage accuracy: ±1.5%
- Operating voltage up to 15V
- Line regulation: <0.2%
- Load regulation: <0.4%
