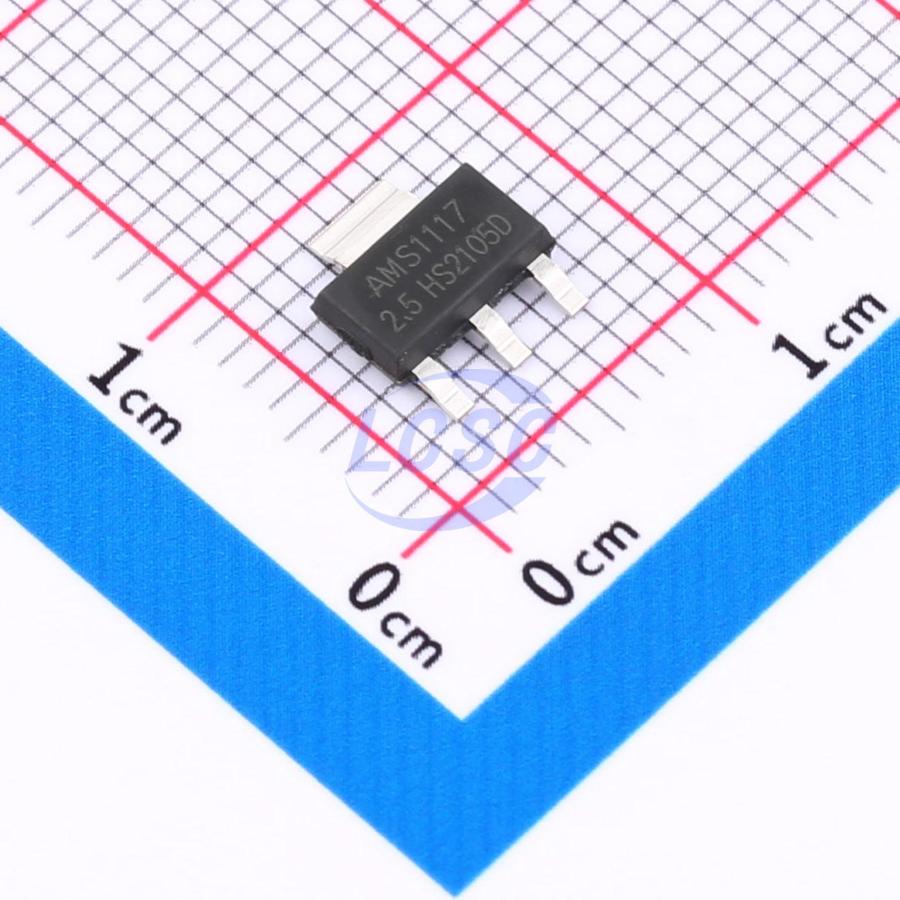

YONGYUTAI

AMS1117-2.5

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223

SOT-223RoHSActive

Three-terminal output low-dropout linear regulator

Manufacturer: YONGYUTAI
Manufacturer part #: AMS1117-2.5
Store part #: C2891838
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,490 in stock

#C2891838

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹7.86	₹78.60
100+	₹6.28	₹628.00
300+	₹5.49	₹1,647.00
2,500+	₹4.43	₹11,075.00
5,000+	₹3.96	₹19,800.00
10,000+	₹3.72	₹37,200.00

Quantity (min 10, multiples of 10)

10 × ₹7.86

₹78.60

excl. GST

₹92.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

AMS1117-2.5

₹78.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 10mA
Output Configuration: Positive
Operating Voltage: 12V
Output Current: 1A
Features: Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.219 g

Overview

The AMS1117 is a three-terminal low dropout linear regulator with an output current of up to 1A. It is available in 1.2V, 1.8V, 2.5V, 3.3V, 5.0V, and adjustable output voltage versions, with a dropout voltage of only 1.2V at 1A. With its excellent performance and exceptional cost-effectiveness, it is suitable for a wide range of electronic products.

Applications

Laptops, PDAs, and notebook computers
Battery chargers
SCSI-II active terminators
Mobile phones
Cordless phones
Battery-powered systems
Portable devices
Post-regulator for switching power supplies

Key features

1.2V dropout voltage at 1A output current
Current limiting protection
Thermal shutdown protection
Available in fixed output voltage versions: 1.2V, 1.8V, 2.5V, 3.3V, 5.0V, and adjustable output voltage version
2% voltage accuracy for 1.2V fixed output
1.5% voltage accuracy for 1.8V, 2.5V, 3.3V, 5.0V fixed output and adjustable output versions
Operating temperature range: -40°C ~ +125°C
