ChipNoboDatasheet (PDF)

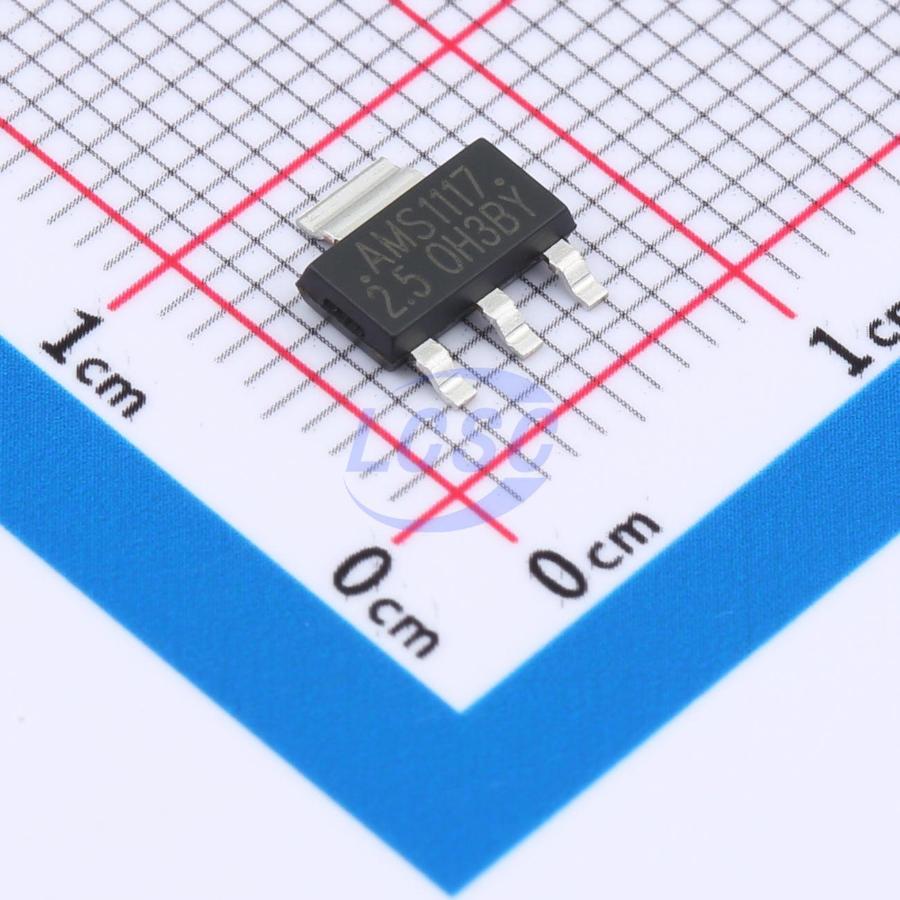

AMS1117-2.5-CN
Linear Voltage Regulator IC Positive Fixed 1 Output 1.2A SOT-223
SOT-223ROHS CompliantActive
800mA Bipolar Linear Regulator
- Manufacturer
- ChipNobo
- Manufacturer part #
- AMS1117-2.5-CN
- Store part #
- C45369269
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,250 in stock
#C45369269
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.37 | ₹53.70 |
| 100+ | ₹4.17 | ₹417.00 |
| 300+ | ₹3.57 | ₹1,071.00 |
| 1,000+ | ₹3.12 | ₹3,120.00 |
| 4,000+ | ₹3.07 | ₹12,280.00 |
| 8,000+ | ₹2.88 | ₹23,040.00 |
10 × ₹5.37
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AMS1117-2.5-CN
₹53.70 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Output Current
- 1.2A
- Operating Voltage
- 15V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
The AMS1117 series is a low-dropout linear regulator with a dropout voltage of 1.3V at 800mA load current. Its standby current is only 2mA, outperforming competitors at 5mA. In addition to fixed output voltage versions (1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), an adjustable version is also available, providing output voltages from 1.25V to 12V with just two external resistors. The series features thermal shutdown to ensure stability of the IC and power system, and employs trimming technology to guarantee output voltage accuracy within 2%. Other accuracy grades (e.g., 1%) are available upon request. The AMS1117 series comes in a SOT-223 power package.
Applications
- Power management for computer motherboards and graphics cards
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Post-stage voltage regulators for switching power supplies
Key features
- Maximum output current: 1.2A
- Operating input voltage range: 15V max
- Line regulation: 0.03%/V (typical)
- Standby current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -20℃ ~ 85℃
