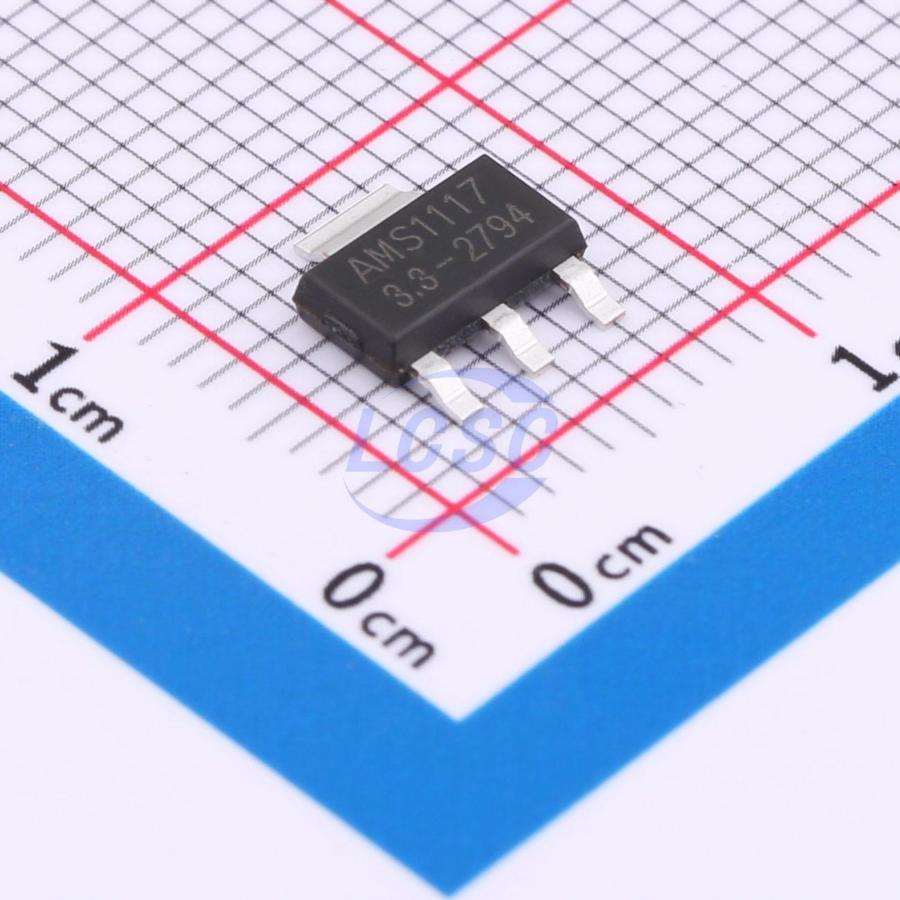

AMS1117-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
LDO Regulator
- Manufacturer
- GR
- Manufacturer part #
- AMS1117-3.3
- Store part #
- C18164485
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49,520 in stock
#C18164485
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.27 | ₹105.40 |
| 200+ | ₹4.09 | ₹818.00 |
| 600+ | ₹3.44 | ₹2,064.00 |
| 2,000+ | ₹3.06 | ₹6,120.00 |
| 10,000+ | ₹2.67 | ₹26,700.00 |
| 20,000+ | ₹2.49 | ₹49,800.00 |
20 × ₹5.27
₹105.40
excl. GST
₹124.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-3.3
₹105.40 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+150℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.13 g
Overview
AMS1117 is a positive output low dropout three-terminal linear voltage regulator. It is available in both fixed voltage output and adjustable voltage output versions. With integrated overcurrent protection and thermal shutdown circuitry to prevent excessive junction temperatures caused by ambient conditions, it is suitable for a wide range of electronic applications.
Applications
- Laptops, PDAs, and notebook computers
- Battery chargers
- SCSI-II active terminators
- Mobile phones
- Cordless phones
- Battery-powered systems
- Portable devices
- Post-regulators for switching power supplies
Key features
- Fixed output voltage versions: 1.5V, 1.8V, 2.5V, 3.3V, 5.0V, and adjustable output
- Adjustable version output voltage accuracy: 1%
- Fixed voltage output accuracy: 2%
- Low dropout voltage: 1.2V at 1A output current
- Current limiting
- Thermal shutdown
- Package: TO-92, SOT89-3
