JingYangDatasheet (PDF)

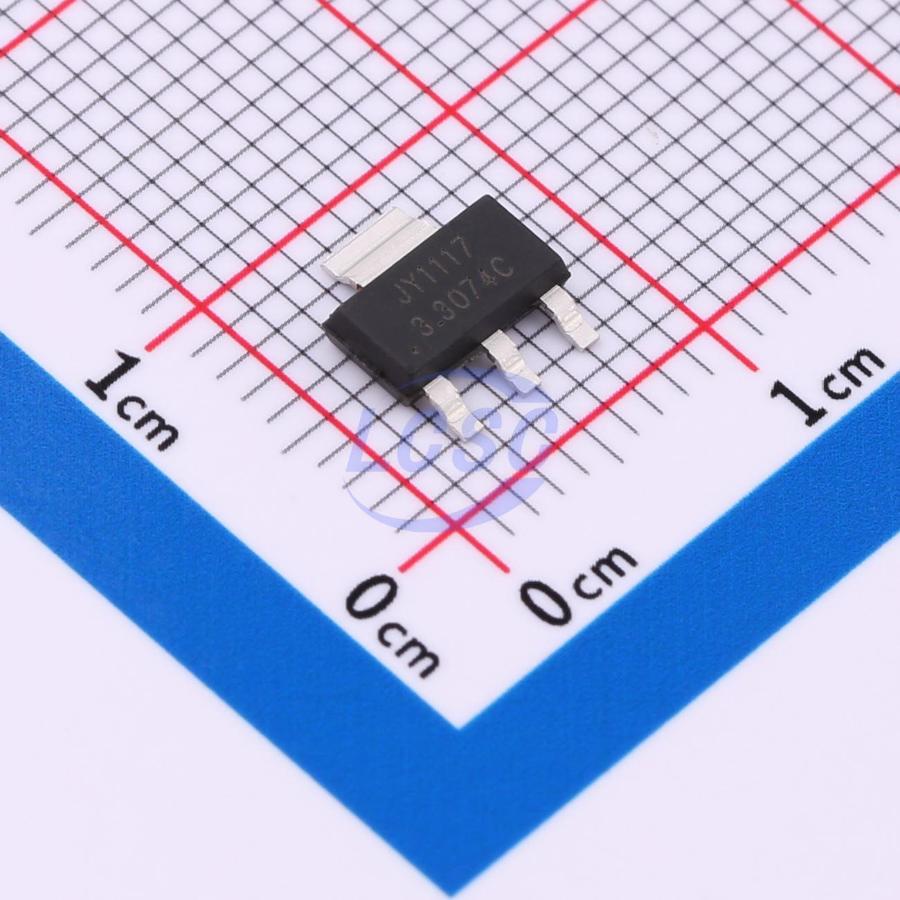

AMS1117-3.3
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
1A Low Dropout Linear Regulator
- Manufacturer
- JingYang
- Manufacturer part #
- AMS1117-3.3
- Store part #
- C22459274
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,445 in stock
#C22459274
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.57 | ₹67.85 |
| 50+ | ₹11.01 | ₹550.50 |
| 150+ | ₹9.72 | ₹1,458.00 |
| 500+ | ₹8.76 | ₹4,380.00 |
| 3,000+ | ₹7.98 | ₹23,940.00 |
| 6,000+ | ₹7.59 | ₹45,540.00 |
5 × ₹13.57
₹67.85
excl. GST
₹80.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AMS1117-3.3
₹67.85 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.226 g
Overview
AMS1117 is a low dropout positive adjustable or fixed- mode regulator with minimum of 1A output current capability. The product is specifically designed to provide well- regulated supply for low voltage IC applications such as high- speed bus termination and low current 3.3V logic supply. AMS1117 is also well suited for other applications such as VGA cards. AMS117 is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well- regulated outputs of 1.25 to 5.0 with VOUT+1.4V to 12V input supply VOLTAGE.
Applications
- Low-voltage IC applications such as high-speed bus termination and low-current 3.3V logic power supply
- VGA cards
Key features
- 1.4V maximum dropout at full load current
- Fast transient response
- Output current limiting
- Built- in thermal shutdown
- Good noise rejection
- MLCC Capacitors are available.
- 3- Terminal Adjustable or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Green (RoHS)
- Packages: SOT223, TO252 and SOT89.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JY1117E33AX#C3038113JingYang · SOT-223-4 | JingYang | SOT-223-4 | 4,210 | ₹10.88 · 4,210 in stock | View |
