GUOXIN JIAPIN SEMICONDUCTORDatasheet (PDF)

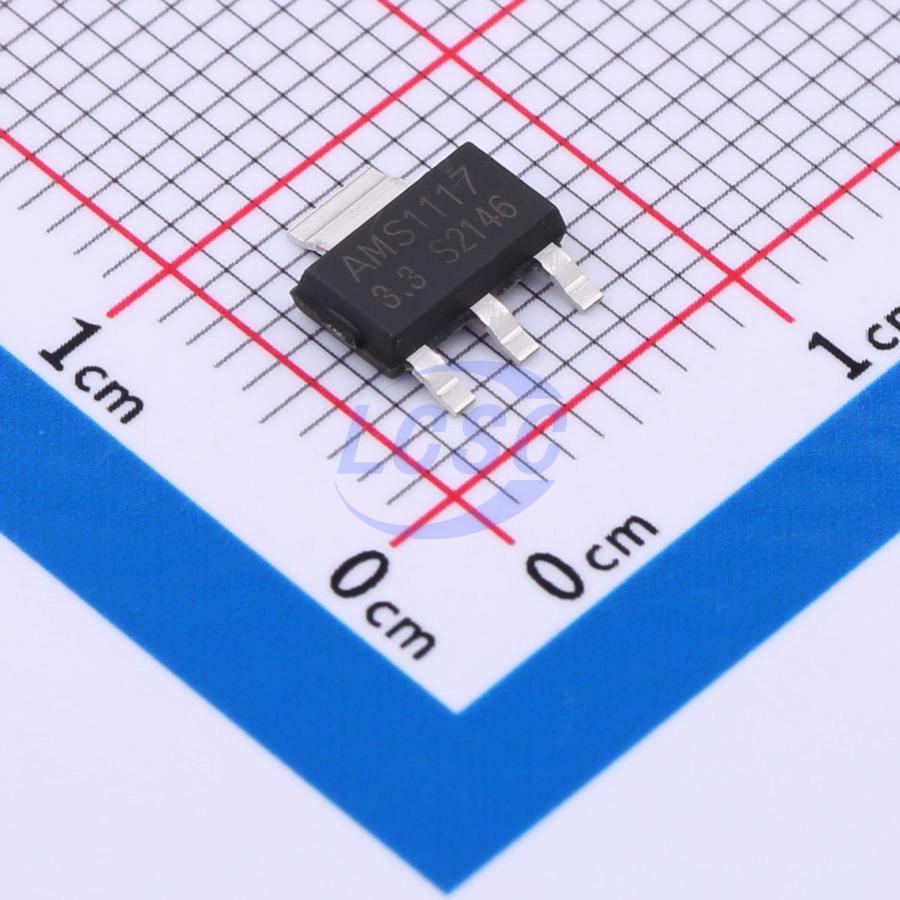

AMS1117-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3
SOT-223-3RoHSActive
1A Low Dropout (LDO) Linear Regulator
- Manufacturer
- GUOXIN JIAPIN SEMICONDUCTOR
- Manufacturer part #
- AMS1117-3.3
- Store part #
- C2992570
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,320 in stock
#C2992570
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.03 | ₹100.60 |
| 200+ | ₹3.97 | ₹794.00 |
| 600+ | ₹3.39 | ₹2,034.00 |
| 2,500+ | ₹2.80 | ₹7,000.00 |
| 10,000+ | ₹2.50 | ₹25,000.00 |
| 20,000+ | ₹2.33 | ₹46,600.00 |
20 × ₹5.03
₹100.60
excl. GST
₹118.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-3.3
₹100.60 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.211 g
Overview
The AMS1117 is a low dropout linear regulator capable of providing 1A output current. This series includes both fixed and adjustable output voltage versions, with an output voltage accuracy of ±1.5%. To ensure the stability of the chip and the power supply system, the AMS1117 incorporates built-in thermal protection and current limiting protection. Additionally, trimming technology is employed to ensure the output voltage accuracy is maintained within ±1.5%. The AMS1117 is available in SOT-223 and TO-252-2L packages.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Switching power supply post-regulator
Key features
- ADJ output voltage adjustable from 1.25V to 13.8V with only two external resistors
- Fixed voltage versions: 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5.0V
- 1A output current capability
- Output voltage accuracy ±1.5%
- Operating voltage up to 15V
- Line regulation less than 0.2%
- Load regulation less than 1.0%
