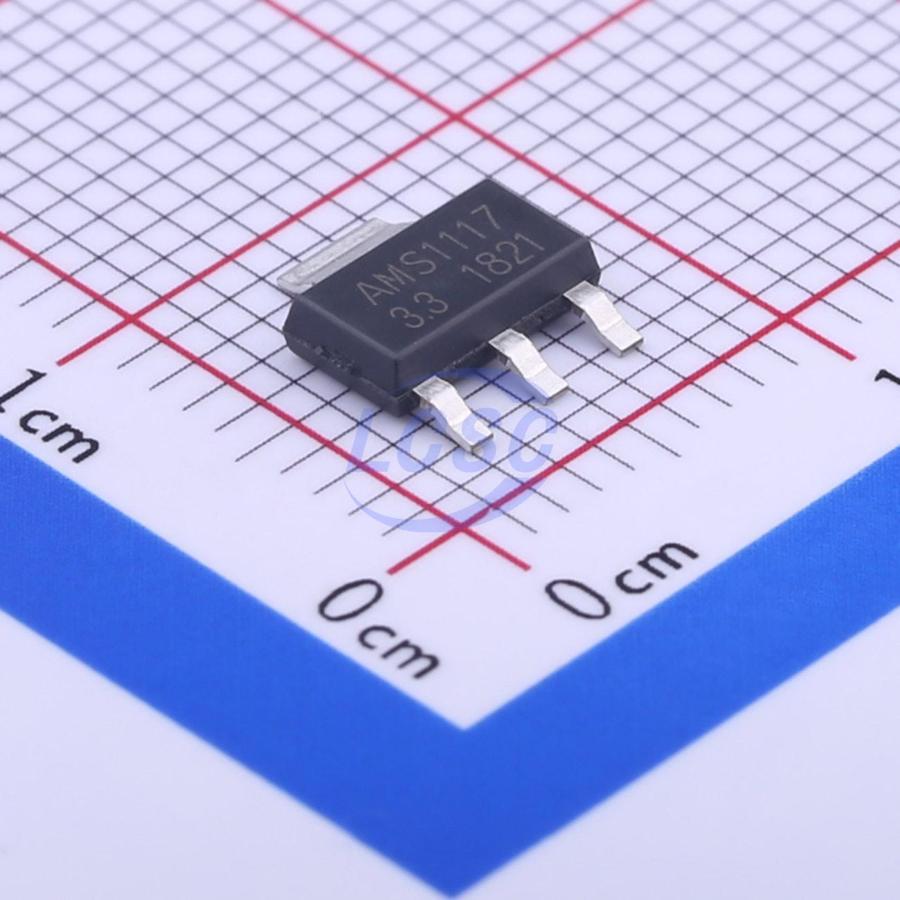

AMS1117-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3
SOT-223-3ROHS CompliantActive
1A Low Dropout (LDO) Linear Regulator
- Manufacturer
- PUOLOP
- Manufacturer part #
- AMS1117-3.3
- Store part #
- C351784
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,350 in stock
#C351784
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.37 | ₹83.70 |
| 100+ | ₹6.77 | ₹677.00 |
| 300+ | ₹5.98 | ₹1,794.00 |
| 1,000+ | ₹5.38 | ₹5,380.00 |
| 4,000+ | ₹4.46 | ₹17,840.00 |
| 8,000+ | ₹4.21 | ₹33,680.00 |
10 × ₹8.37
₹83.70
excl. GST
₹98.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AMS1117-3.3
₹83.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Ta)
- Supply Current (Iq)
- 12mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 2.061 g
Overview
AMS1117 is a low dropout 1A linear voltage regulator.
Applications
- Computer motherboards, graphics cards, LCD monitors and LCD TVs
- DVD decoder boards
- ADSL equipment
- Post-stage voltage regulation in switching power supplies
Key features
- Available in adjustable 3-terminal output and fixed voltage output versions (fixed voltages include 1.2V, 1.8V, 2.5V, 3.3V, 5V, etc.; other voltage specifications available upon customer request)
- Maximum output current: 1A
- Output voltage accuracy up to ±2%
- Stable operating voltage range up to 12V
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature: TA range -20°C ~ 125°C
