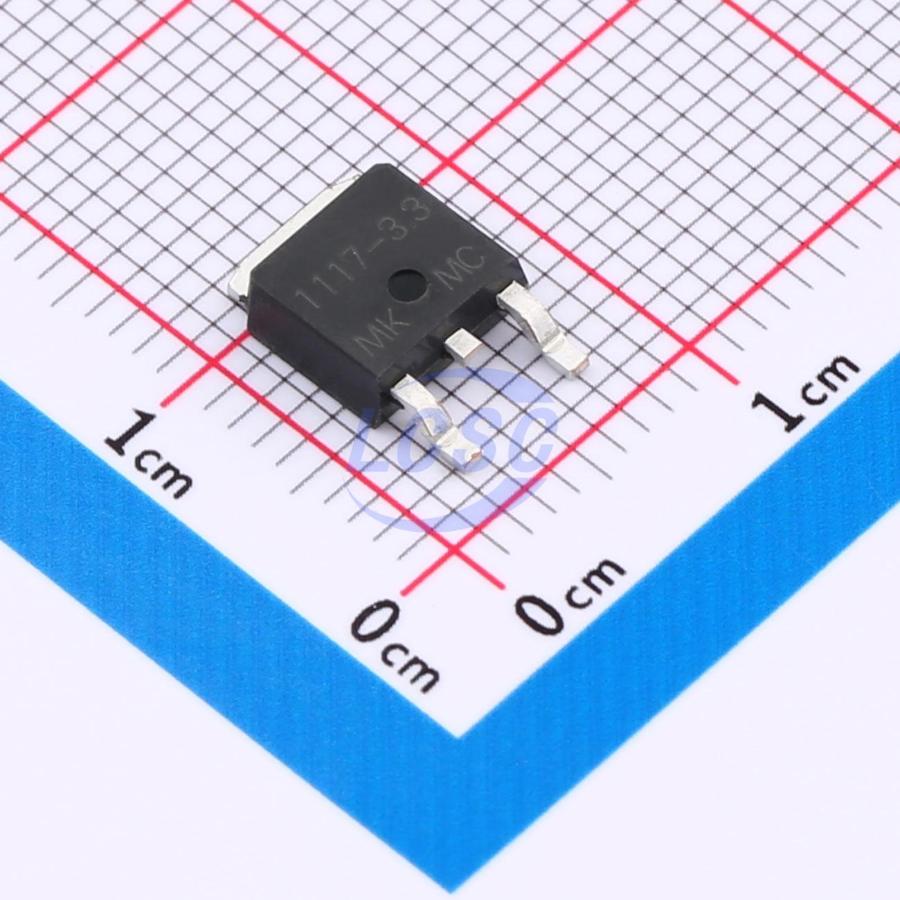

AMS1117-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA TO-252
TO-252RoHSActive
LDO High Voltage Regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- AMS1117-3.3
- Store part #
- C41414107
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,215 in stock
#C41414107
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.01 | ₹80.05 |
| 50+ | ₹12.67 | ₹633.50 |
| 150+ | ₹11.01 | ₹1,651.50 |
| 500+ | ₹9.76 | ₹4,880.00 |
| 2,500+ | ₹8.48 | ₹21,200.00 |
| 5,000+ | ₹7.99 | ₹39,950.00 |
5 × ₹16.01
₹80.05
excl. GST
₹94.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-3.3
₹80.05 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(TJ)
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.445 g
Overview
The 1117 is a positive low-dropout regulator with a 1.2V dropout voltage at 800mA. It is available in two versions: fixed output and adjustable. Fixed output voltages are 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, and 5.0V with 1.5% accuracy; the 1.2V fixed output version has 2% accuracy. With integrated over-temperature protection and current limiting circuitry, the 1117 is an ideal choice for battery-powered and portable computer applications.
Applications
- Laptops, PDAs, and notebook computers
- Battery chargers
- SCSI-II active terminators
- Mobile phones
- Cordless phones
- Battery-powered systems
- Portable devices
- SMPS post regulators
Key features
- Fixed output voltages: 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, 5.0V, and adjustable version with 1.5% accuracy
- Fixed 1.2V output voltage accuracy: 2%
- Low dropout voltage: 1.2V at 800mA output current
- Current limiting
- Thermal shutdown
- Temperature range: -40℃~125℃
