lingxingic

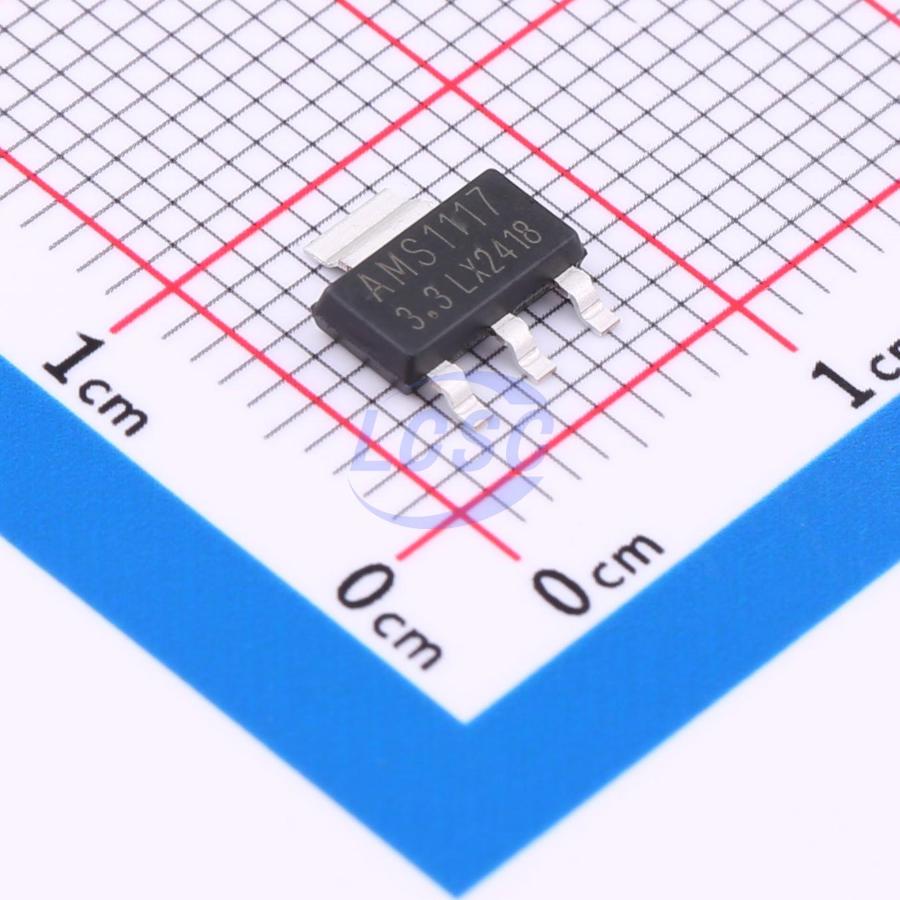

AMS1117-3.3(LX)

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223

SOT-223RoHSActive

1A Low Dropout Fixed/Adjustable Voltage Regulator

Manufacturer: lingxingic
Manufacturer part #: AMS1117-3.3(LX)
Store part #: C24833654
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,540 in stock

#C24833654

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
20+	₹5.27	₹105.40
200+	₹4.18	₹836.00
600+	₹3.57	₹2,142.00
2,500+	₹3.07	₹7,675.00
10,000+	₹2.75	₹27,500.00
20,000+	₹2.59	₹51,800.00

Quantity (min 20, multiples of 20)

20 × ₹5.27

₹105.40

excl. GST

₹124.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AMS1117-3.3(LX)

₹105.40 for 20 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 5mA
Output Configuration: Positive
Operating Voltage: 18V
Output Current: 1A
Features: Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.24 g

Overview

AMS1117-ADJ/1.2/1.5/1.8/2.5/2.85/3.3/5 is a low dropout positive voltage regulator with a maximum output current of 1A. The AMS1117-ADJ is an adjustable output voltage version that requires only two external resistors to regulate the output voltage in the range of 1.25V~13.8V, while AMS1117-1.2/1.5/1.8/2.5/2.85/3.3/5 are fixed output versions at 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V respectively. The IC features built-in thermal protection. Widely used in applications requiring high-precision, low dropout positive voltage regulation, such as portable devices, battery chargers, etc.
