UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,100 in stock
WPMtekDatasheet (PDF)

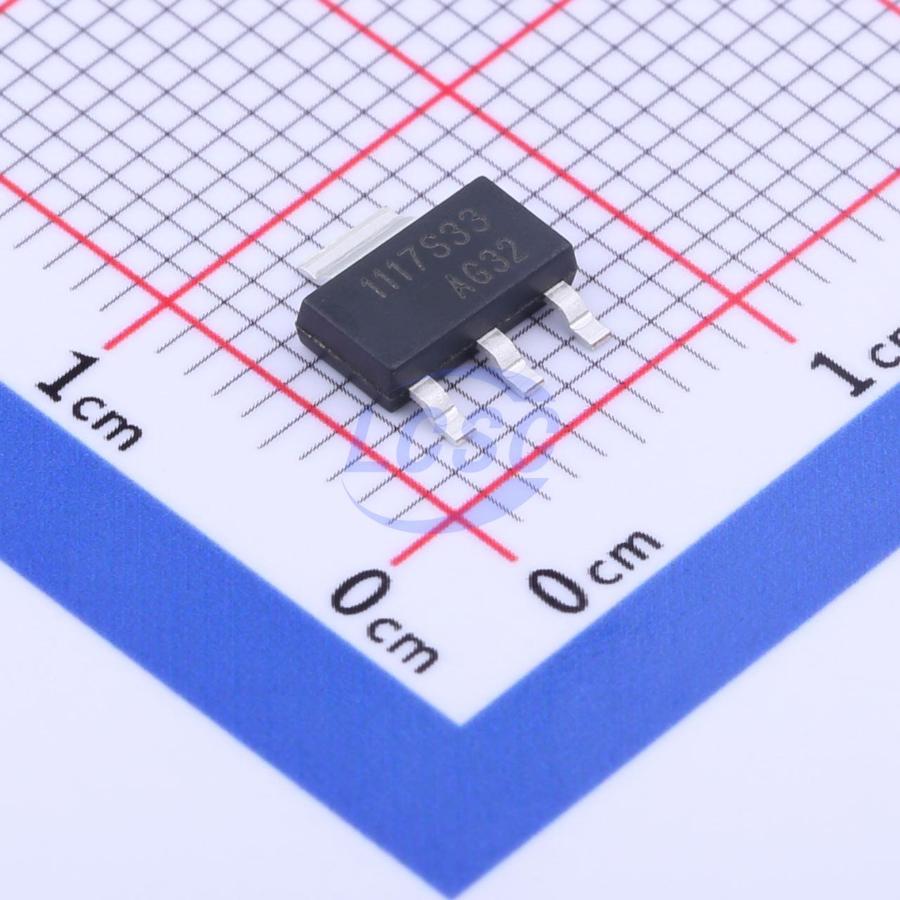

AMS1117-3.3V
3.3V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3LROHS CompliantActive
1A Adjustable / Fixed Low Dropout Linear Regulator
- Manufacturer
- WPMtek
- Manufacturer part #
- AMS1117-3.3V
- Store part #
- C2688239
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,800 in stock
#C2688239
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.67 | ₹86.70 |
| 100+ | ₹7.00 | ₹700.00 |
| 300+ | ₹6.17 | ₹1,851.00 |
| 1,000+ | ₹5.54 | ₹5,540.00 |
| 4,000+ | ₹4.11 | ₹16,440.00 |
| 8,000+ | ₹3.86 | ₹30,880.00 |
10 × ₹8.67
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AMS1117-3.3V
₹86.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.178 g
Overview
Applications
- Computer motherboards, graphics cards
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL equipment
- Post-stage voltage regulation in switching power supplies
Key features
- Three-terminal adjustable output and fixed voltage output versions available (fixed voltages include 1.2V, 1.8V, 2.5V, 3.3V, 5V, etc.; other voltage specifications available upon custom request)
- Maximum output current: 1A
- Output voltage accuracy: ±2%
- Operating voltage range up to 12V
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature TA range: -20℃ ~ 125℃
