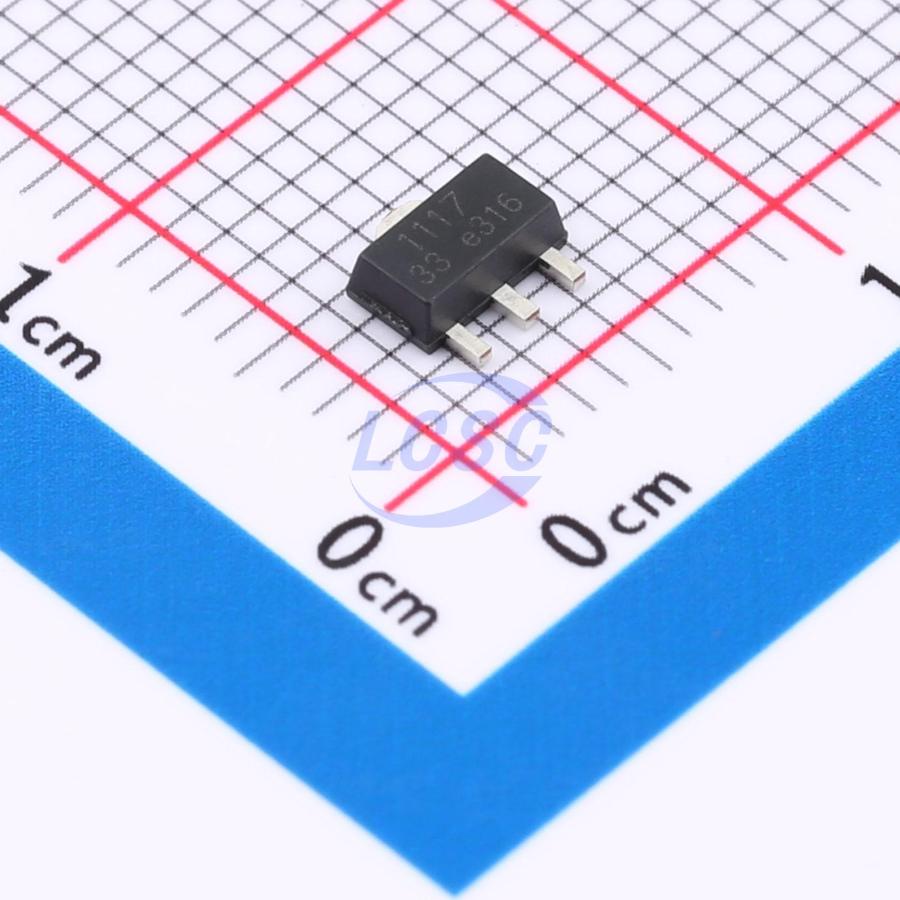

AMS1117-3.3V-JSM

AMS1117 is a series of low dropout voltage, three terminal regulators. Its application circuit is very simple: the fixed version only needs two capacitors and the adjustable version only needs two resistors and two capacitors to work. It is composed of some modules including start-up circuit, bias circuit, bandgap, thermal shutdown, power transistors and its driver circuit and so on. The thermal shut down modules can assure chip and its application system working safety when the junction temperature is larger than 140°C. The bandgap module provides stable reference voltage, whose temperature coefficient is compensated by careful design considerations. The temperature coefficient is under 100 ppm/°C. And the accuracy of output voltage is guaranteed by trimming technique.

Applications

• Power Management for Computer Mother Board
• Graphic Card
• LCD Monitor and LCD TV
• DVD Decode Board
• ADSL Modem
• Post Regulators For Switching Supplies

Key features

• Maximum output current is 1.2A
• Range of operation input voltage: Max 15V
• Line regulation: 0.03%/V (typ.)
• Standby current: 2mA (typ.)
• Load regulation: 0.2%/A (typ.)
• Environment Temperature: -20°C~85°C
