lingxingic

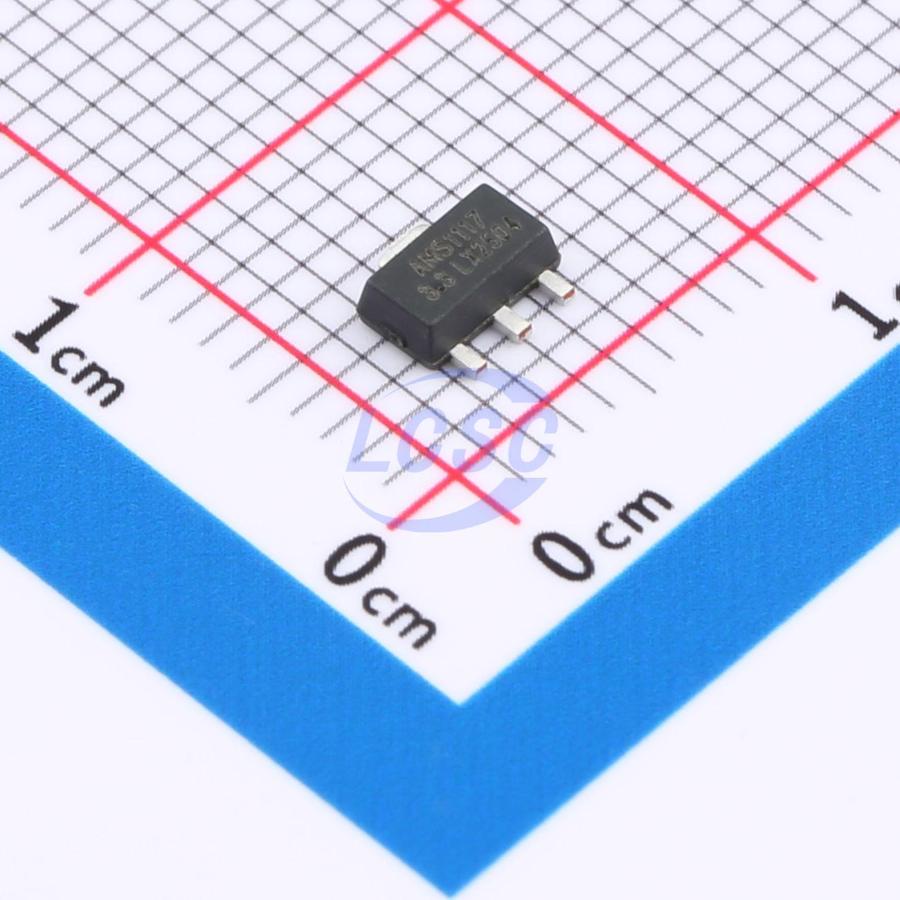

AMS1117-3.3V (LX)

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89-3

SOT-89-3RoHSActive

1A Low Dropout Fixed/Adjustable Voltage Regulator

Manufacturer: lingxingic
Manufacturer part #: AMS1117-3.3V (LX)
Store part #: C48998061
Package / case: SOT-89-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,760 in stock

#C48998061

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹5.19	₹103.80
200+	₹4.09	₹818.00
1,000+	₹3.47	₹3,470.00
2,000+	₹3.10	₹6,200.00
10,000+	₹2.78	₹27,800.00
20,000+	₹2.61	₹52,200.00

Quantity (min 20, multiples of 20)

20 × ₹5.19

₹103.80

excl. GST

₹122.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

AMS1117-3.3V (LX)

₹103.80 for 20 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 2mA
Output Configuration: Positive
Operating Voltage: 18V
Output Current: 1A
Features: Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.153 g

Overview

The AMS1117-ADJ/1.2/1.5/1.8/2.5/2.85/3.3/5 series are low-dropout positive voltage regulators with a maximum output current of 1A. The AMS1117-ADJ is an adjustable output voltage version that requires only two external resistors to set the output voltage within the range of 1.25V to 13.8V; the AMS1117-1.2/1.5/1.8/2.5/2.85/3.3/5 are fixed output voltage versions. This series features built-in thermal protection and is widely used in applications requiring high-accuracy, low-dropout voltage regulation, such as portable devices and battery chargers.
