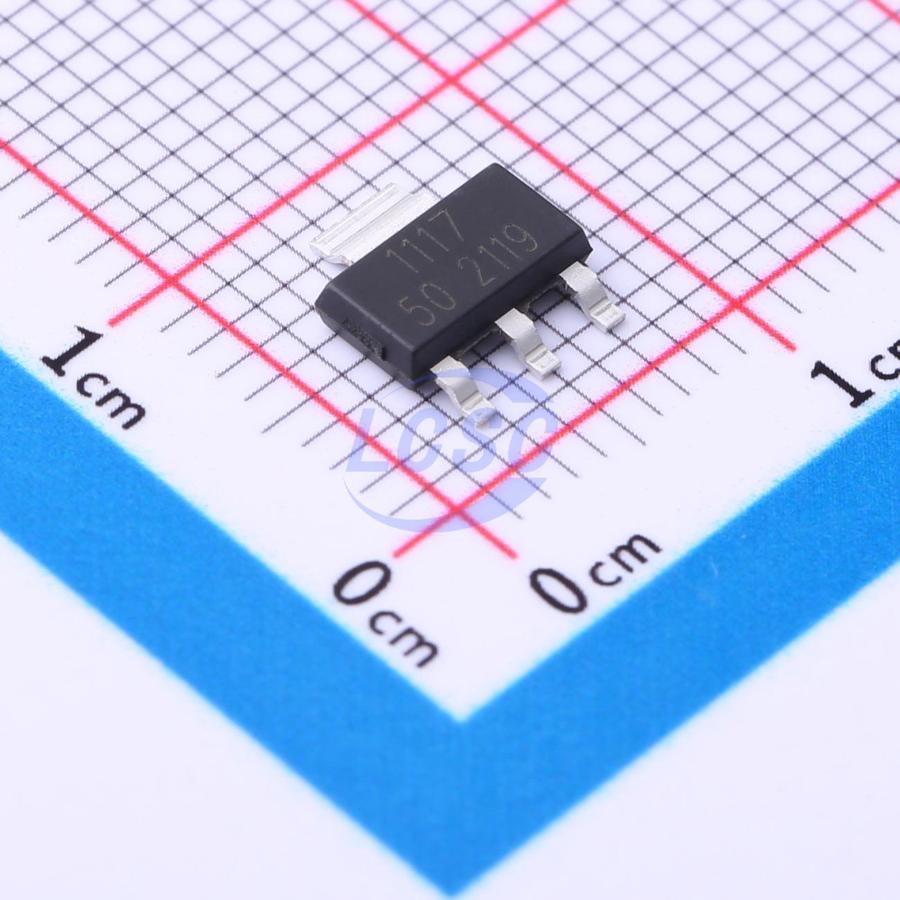

AMS1117-5.0
5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS CompliantActive
1A Adjustable / Fixed Low Dropout Linear Regulator
- Manufacturer
- WPMtek
- Manufacturer part #
- AMS1117-5.0
- Store part #
- C2909825
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C2909825
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.68 | ₹86.80 |
| 100+ | ₹7.01 | ₹701.00 |
| 300+ | ₹6.18 | ₹1,854.00 |
| 2,500+ | ₹4.72 | ₹11,800.00 |
| 5,000+ | ₹4.22 | ₹21,100.00 |
| 10,000+ | ₹3.97 | ₹39,700.00 |
10 × ₹8.68
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-5.0
₹86.80 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.233 g
Overview
Applications
- Computer motherboards, graphics cards
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL equipment
- Post-stage voltage regulation in switching power supplies
Key features
- Three-terminal adjustable output and fixed voltage output versions available (fixed voltages include 1.2V, 1.8V, 2.5V, 3.3V, 5V, etc.; other voltage specifications available upon custom request)
- Maximum output current: 1A
- Output voltage accuracy: ±2%
- Operating voltage range up to 12V
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature TA range: -20℃ ~ 125℃
