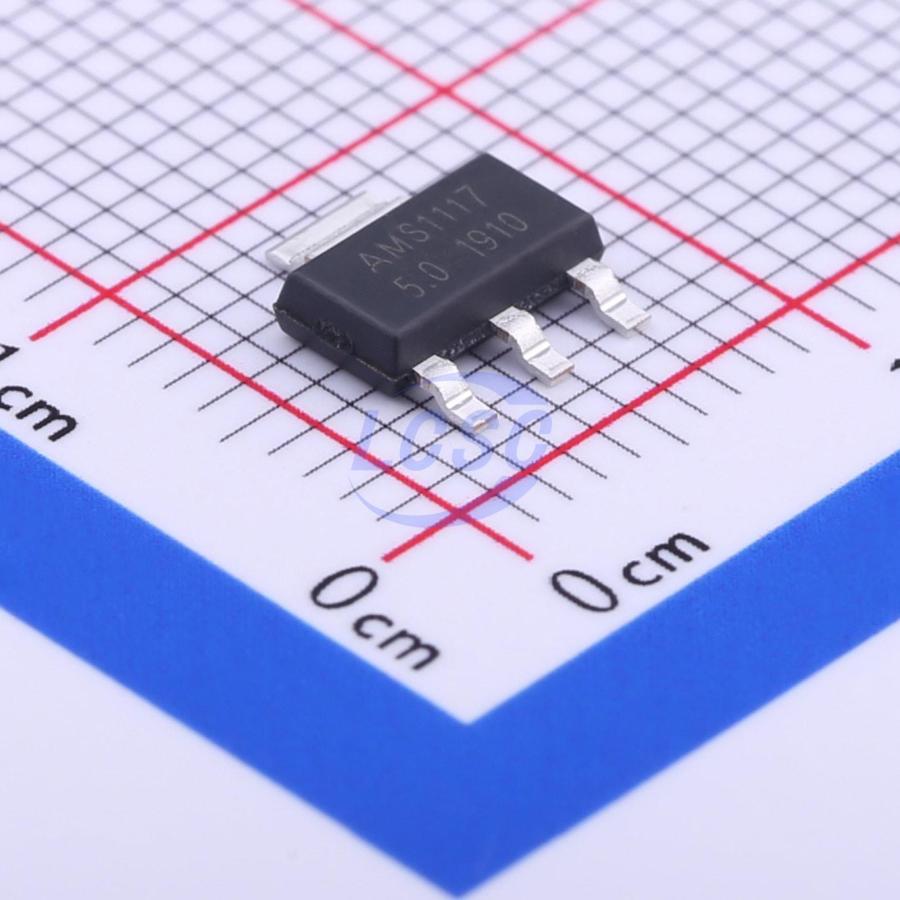

AMS1117-5.0

5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

PopularSOT-223ROHS CompliantActive

1A Low Dropout Voltage Regulator

Manufacturer: Advanced Monolithic Systems
Manufacturer part #: AMS1117-5.0
Store part #: C6187
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

48,575 in stock

#C6187

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹28.24	₹141.20
50+	₹21.48	₹1,074.00
150+	₹18.19	₹2,728.50
500+	₹15.25	₹7,625.00
2,500+	₹14.44	₹36,100.00
5,000+	₹13.96	₹69,800.00

Quantity (min 5, multiples of 5)

5 × ₹28.24

₹141.20

excl. GST

₹166.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AMS1117-5.0

₹141.20 for 5 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 5mA
Output Configuration: Positive
Operating Voltage: 15V
Output Current: 1A
Features: Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.259 g

Overview

The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry. The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.

Applications

High Efficiency Linear Regulators
Post Regulators for Switching Supplies
5V to 3.3V Linear Regulator
Battery Chargers
Active SCSI Terminators
Power Management for Notebook
Battery Powered Instrumentation

Key features

Three Terminal Adjustable or Fixed Voltages: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
Output Current of 1A
Operates Down to 1V Dropout
Line Regulation: 0.2% Max.
Load Regulation: 0.4% Max.
SOT-223, TO-252 and SO-8 package available

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AMS1117-5.0#C6068482GOODWORK · SOT-223	GOODWORK	SOT-223	56,480	₹6.53 · 56,480 in stock	View
ME1117A50B3G#C139610MICRONE · SOT-223	MICRONE	SOT-223	11,240	₹7.46 · 11,240 in stock	View
LD1117-5.0#C347230UMW · SOT-223	UMW	SOT-223	1,71,970	₹6.11 · 1,71,970 in stock	View
LD1117AG-50-AA3-D-R#C5160420UTC · SOT-223	UTC	SOT-223	1,550	₹8.40 · 1,550 in stock	View
AMS1117-5.0RG#C2977151HANSCHIP semiconductor · SOT-223	HANSCHIP semiconductor	SOT-223	1,820	₹6.07 · 1,820 in stock	View

Questions about AMS1117-5.0

Is the Ams1117-5.0 Reliable, and Does It Meet Industry Standards?

The AMS1117-5.0 is designed with built-in thermal shutdown and short-circuit protection to enhance reliability in demanding applications. It is a RoHS-compliant electronic component, making it suitable for environmentally conscious designs while maintaining dependable voltage regulation performance.

Is the Ams1117-5.0 Compatible with Other Voltage Regulator Ics?

Yes, the AMS1117-5.0 is pin-compatible with many standard three-terminal LDO regulators in the AMS1117 family and similar voltage regulator ICs. Always review the datasheet specifications, package type, output voltage, and electrical characteristics before selecting an equivalent replacement component.

What Applications Is the Ams1117-5.0 Commonly Used For?

The AMS1117-5.0 is widely used in power management circuits, battery-powered devices, post-regulation for switching power supplies, battery chargers, and embedded systems. Its stable 5V output and 1A current capability make it a popular choice for consumer, industrial, and portable electronics designs.

What Are the Key Specifications and Features of the Ams1117-5.0 Voltage Regulator?

The AMS1117-5.0 is a 1A low dropout (LDO) voltage regulator that provides a fixed 5V output in a SOT-223 package. Key features include low dropout voltage, short-circuit protection, thermal shutdown, and an operating temperature range of -40°C to +125°C, making it suitable for a wide range of power management applications.
