YONGYUTAIDatasheet (PDF)

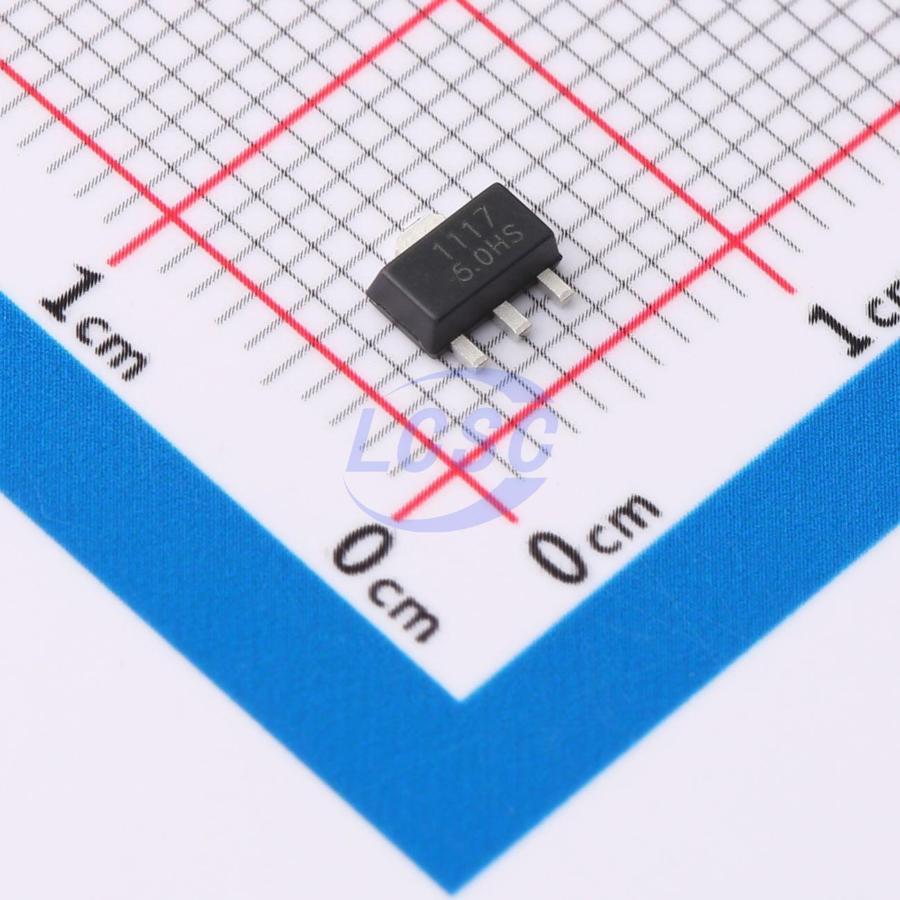

AMS1117-5.0
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89
SOT-89RoHSActive
Three-terminal output low-dropout linear regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- AMS1117-5.0
- Store part #
- C7461670
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C7461670
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.46 | ₹1,638.00 |
| 1,000+ | ₹4.83 | ₹4,830.00 |
| 5,000+ | ₹4.34 | ₹21,700.00 |
| 10,000+ | ₹4.09 | ₹40,900.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AMS1117-5.0
₹79.50 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
The AMS1117 is a three-terminal low dropout linear regulator with an output current of up to 1A. It is available in 1.2V, 1.8V, 2.5V, 3.3V, 5.0V, and adjustable output voltage versions, with a dropout voltage of only 1.2V at 1A. With its excellent performance and exceptional cost-effectiveness, it is suitable for a wide range of electronic products.
Applications
- Laptops, PDAs, and notebook computers
- Battery chargers
- SCSI-II active terminators
- Mobile phones
- Cordless phones
- Battery-powered systems
- Portable devices
- Post-regulator for switching power supplies
Key features
- 1.2V dropout voltage at 1A output current
- Current limiting protection
- Thermal shutdown protection
- Available in fixed output voltage versions: 1.2V, 1.8V, 2.5V, 3.3V, 5.0V, and adjustable output voltage version
- 2% voltage accuracy for 1.2V fixed output
- 1.5% voltage accuracy for 1.8V, 2.5V, 3.3V, 5.0V fixed output and adjustable output versions
- Operating temperature range: -40°C ~ +125°C
