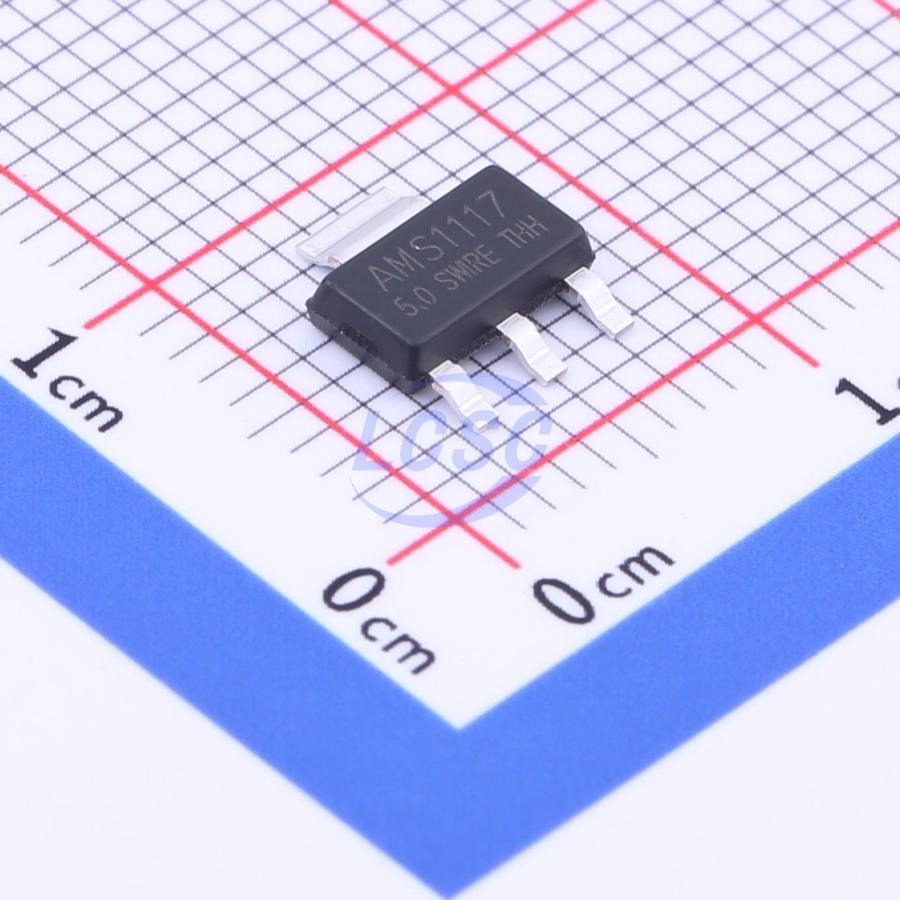

AMS1117-5.0
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3
SOT-223-3ROHS CompliantActive
1A LDO regulator circuit
- Manufacturer
- JSMSEMI
- Manufacturer part #
- AMS1117-5.0
- Store part #
- C917153
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,820 in stock
#C917153
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.82 | ₹78.20 |
| 100+ | ₹6.26 | ₹626.00 |
| 300+ | ₹5.48 | ₹1,644.00 |
| 2,500+ | ₹4.46 | ₹11,150.00 |
| 5,000+ | ₹4.00 | ₹20,000.00 |
| 10,000+ | ₹3.76 | ₹37,600.00 |
10 × ₹7.82
₹78.20
excl. GST
₹92.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-5.0
₹78.20 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.214 g
Overview
AMS1117 is a positive-voltage low-dropout three-terminal linear regulator with a dropout voltage of 1.2V at 1A output current. AMS1117 is available in two versions: fixed voltage output and adjustable voltage output. The fixed output voltage versions (1.5V, 1.8V, 2.5V, 3.3V, 5.0V) and the adjustable version offer 1.5% voltage accuracy; the fixed 1.2V version has an output voltage accuracy of 12%. AMS1117 integrates internal over-temperature protection and current limiting circuitry, suitable for a wide range of electronic applications.
Applications
- Laptops, PDAs, and notebook computers
- Battery chargers
- SCSI-II active terminators
- Mobile phones
- Cordless phones
- Battery-powered systems
- Portable devices
- Post regulators for switching power supplies
Key features
- Output voltage accuracy 1.5% for fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable versions
- Output voltage accuracy 2% for fixed 1.2V
- Low dropout voltage: only 1.2V at 1A output current
- Current limiting
- Thermal shutdown
- Temperature range: -40°C~125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TLV1117-50IDCYR-JSM#C49365118JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 2,490 | ₹17.45 · 2,490 in stock | View | |
| LDL1117S50R-JSM#C49367995JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 2,500 | ₹17.45 · 2,500 in stock | View | |
