XBLWDatasheet (PDF)

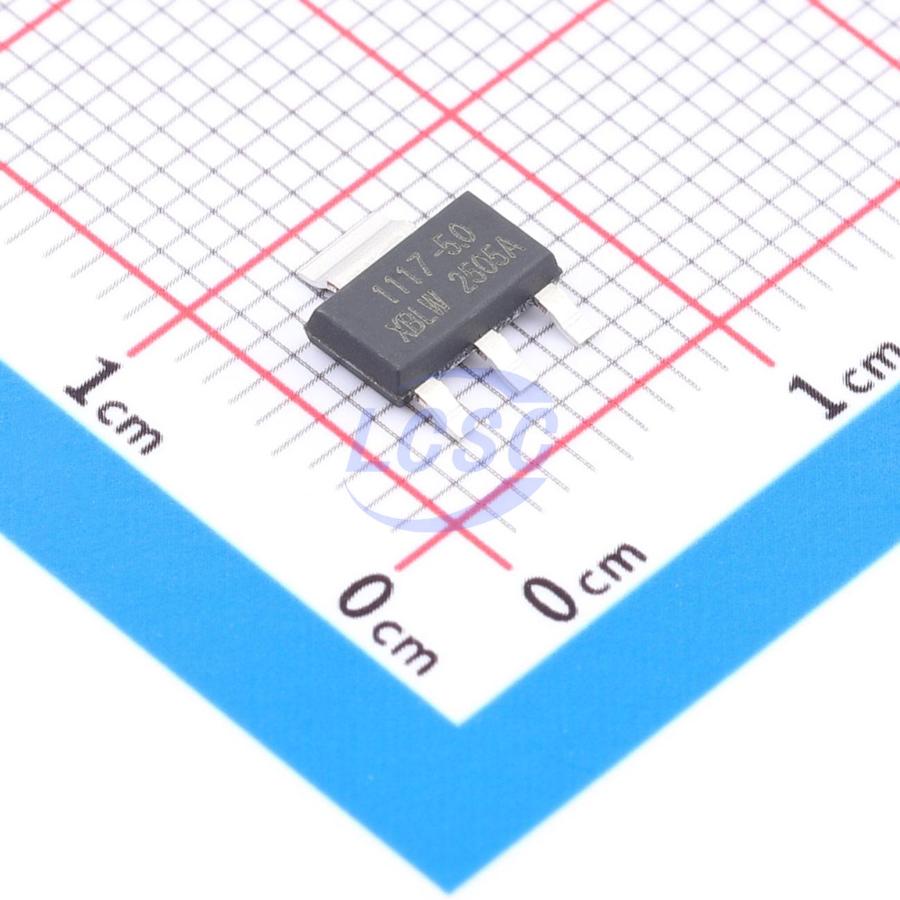

AMS1117-5.0(XBLW)
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantDiscontinued
1A Low Dropout (LDO) Linear Regulator
- Manufacturer
- XBLW
- Manufacturer part #
- AMS1117-5.0(XBLW)
- Store part #
- C18723570
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C18723570
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.05 | ₹50.50 |
| 100+ | ₹3.97 | ₹397.00 |
| 300+ | ₹3.41 | ₹1,023.00 |
| 2,500+ | ₹3.00 | ₹7,500.00 |
| 5,000+ | ₹2.67 | ₹13,350.00 |
| 10,000+ | ₹2.51 | ₹25,100.00 |
10 × ₹5.05
₹50.50
excl. GST
₹59.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-5.0(XBLW)
₹50.50 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.235 g
Overview
XBLW AMS1117 is a low dropout linear regulator capable of delivering 1A output current. This series includes both fixed and adjustable output voltage versions, with an output voltage accuracy of ±1.5%. To ensure the stability of the chip and the power supply system, the XBLW AMS1117 features built-in thermal protection and current limiting protection. Additionally, trimming technology is employed to guarantee the output voltage accuracy is maintained within ±1.5%. The XBLW AMS1117 is available in SOT-223, TO-252-2L, and SOT-89 packages.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TV/DVD decoder boards
- ADSL modem switching power supply post-regulator
Key features
- ADJ output voltage adjustable from 1.25V to 13.8V with only two external resistors
- Fixed voltage versions: 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5.0V
- 1A output current capability
- Output voltage accuracy ±1.5%
- Operating voltage up to 15V
- Line regulation less than 0.2%
- Load regulation less than 1.0%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XBL1117-5.0#C47021215XBLW · SOT-223 | XBLW | SOT-223 | 800 | ₹6.09 · 800 in stock | View |
 | XBL1117-5.0/STR#C49242127XBLW · SOT-89-3L | XBLW | SOT-89-3L | 7,700 | ₹5.33 · 7,700 in stock | View |
