QNHCHIPDatasheet (PDF)

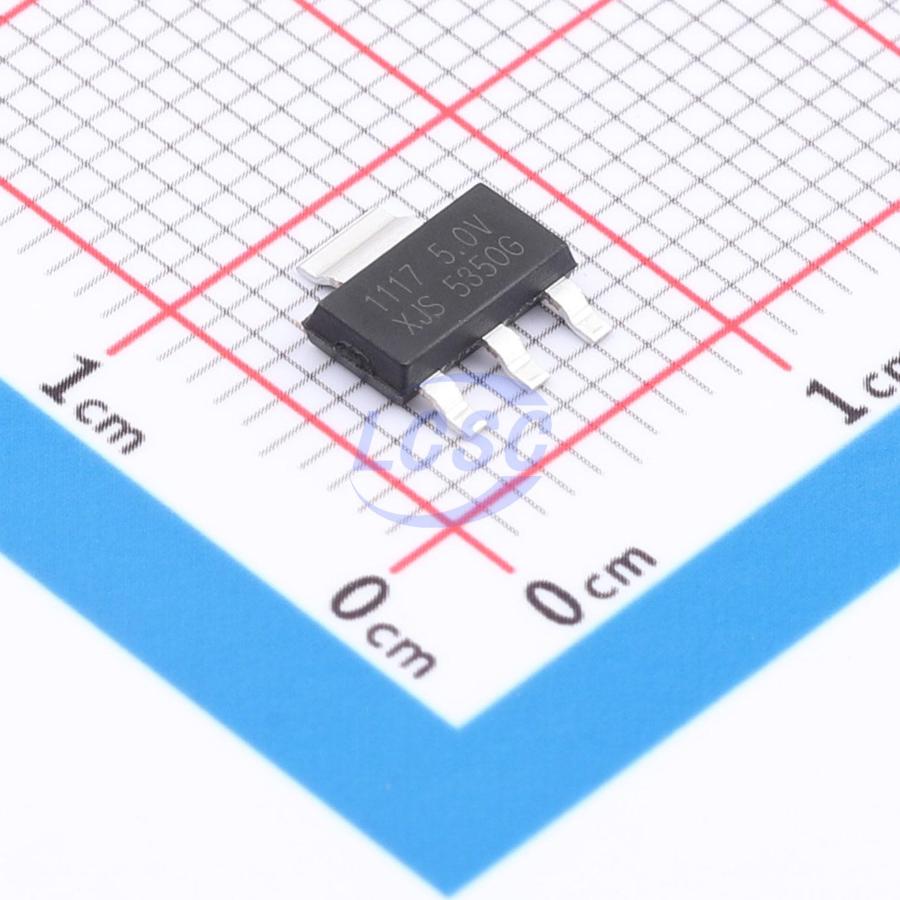

AMS1117-5.0V
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
IC REG LINEAR 5V 1A SOT-223
- Manufacturer
- QNHCHIP
- Manufacturer part #
- AMS1117-5.0V
- Store part #
- C50379994
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C50379994
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.37 | ₹107.40 |
| 200+ | ₹4.19 | ₹838.00 |
| 600+ | ₹3.55 | ₹2,130.00 |
| 2,500+ | ₹3.16 | ₹7,900.00 |
| 10,000+ | ₹2.82 | ₹28,200.00 |
| 20,000+ | ₹2.65 | ₹53,000.00 |
20 × ₹5.37
₹107.40
excl. GST
₹126.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-5.0V
₹107.40 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 4.852 g
Overview
AMS1117 is a family of low dropout linear regulators with a 1.3V dropout voltage at 1A load current. Quiescent current is exceptionally low at only 2mA. The family offers fixed output voltage versions (1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V) as well as an adjustable output version that requires only two external resistors to set the output voltage from 1.25V to 12V. AMS1117 incorporates thermal shutdown protection to ensure stability of both the device and the power supply system. Trimming technology guarantees output voltage accuracy within 2%, with other accuracy grades (e.g., 1%) available upon request. The family is offered in SOT-223, TO-252, and SOT-89 packages.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Post-stage regulators in switching power supplies
Key features
- Output current: 1A
- Operating input voltage range: 15V
- Line regulation: 0.03%/V (typical)
- Standby current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -40℃~125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| QN1117-5.0V#C50379990QNHCHIP · SOT-223 | QNHCHIP | SOT-223 | 1,660 | ₹4.70 · 1,660 in stock | View | |
