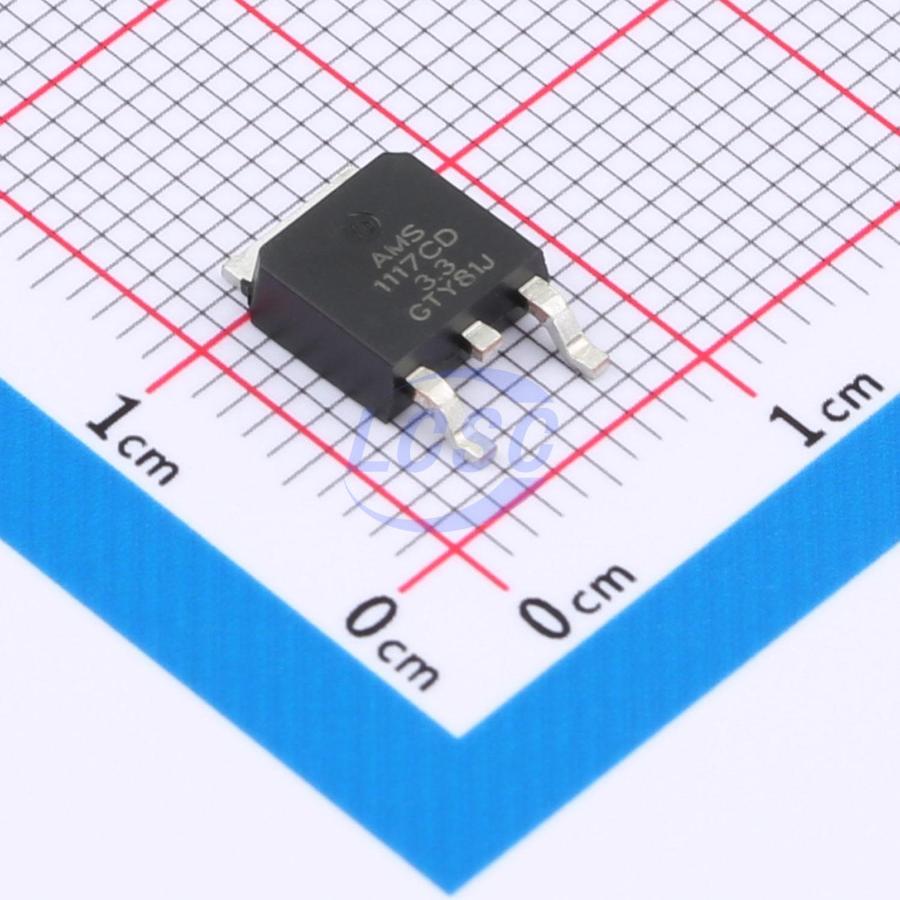

AMS1117CD-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 900mA TO-252
TO-252ROHS CompliantActive
900mA Low Dropout (LDO) Linear Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- AMS1117CD-3.3
- Store part #
- C41361588
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,005 in stock
#C41361588
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.74 | ₹58.70 |
| 50+ | ₹9.45 | ₹472.50 |
| 150+ | ₹8.30 | ₹1,245.00 |
| 500+ | ₹7.44 | ₹3,720.00 |
| 2,500+ | ₹6.75 | ₹16,875.00 |
| 5,000+ | ₹6.40 | ₹32,000.00 |
5 × ₹11.74
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117CD-3.3
₹58.70 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 900mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.456 g
Overview
The AMS1117CD is a low dropout linear regulator with a typical dropout voltage of only 1.4V at 900mA output current. In addition to multiple fixed voltage versions (Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V), an adjustable output version is also available, offering an output voltage range of 1.25V to 10V. Comprehensive overcurrent and thermal protection is provided (with a wide operating temperature range of -10°C to 85°C), ensuring stability of both the IC and the power supply system. Advanced trimming techniques are employed during production to maintain output voltage and reference accuracy within ±1%. Available in SOT-223, TO-252, SOT-89, and SOT-23 packages.
Applications
- Computer motherboards, graphics cards
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL equipment
- Post-stage voltage regulation in switching power supplies
Key features
- Three-terminal adjustable and fixed voltage output versions (fixed voltages include 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, ADJ, etc.; other voltage specifications available upon customer request)
- Maximum output current: 900mA
- Output voltage accuracy up to ±1%
- Stable operating voltage range up to 18V
- Line regulation: 0.2%
- Load regulation: 1.4%
- Ambient temperature: TA range -10°C~85°C
