Advanced Monolithic SystemsDatasheet (PDF)

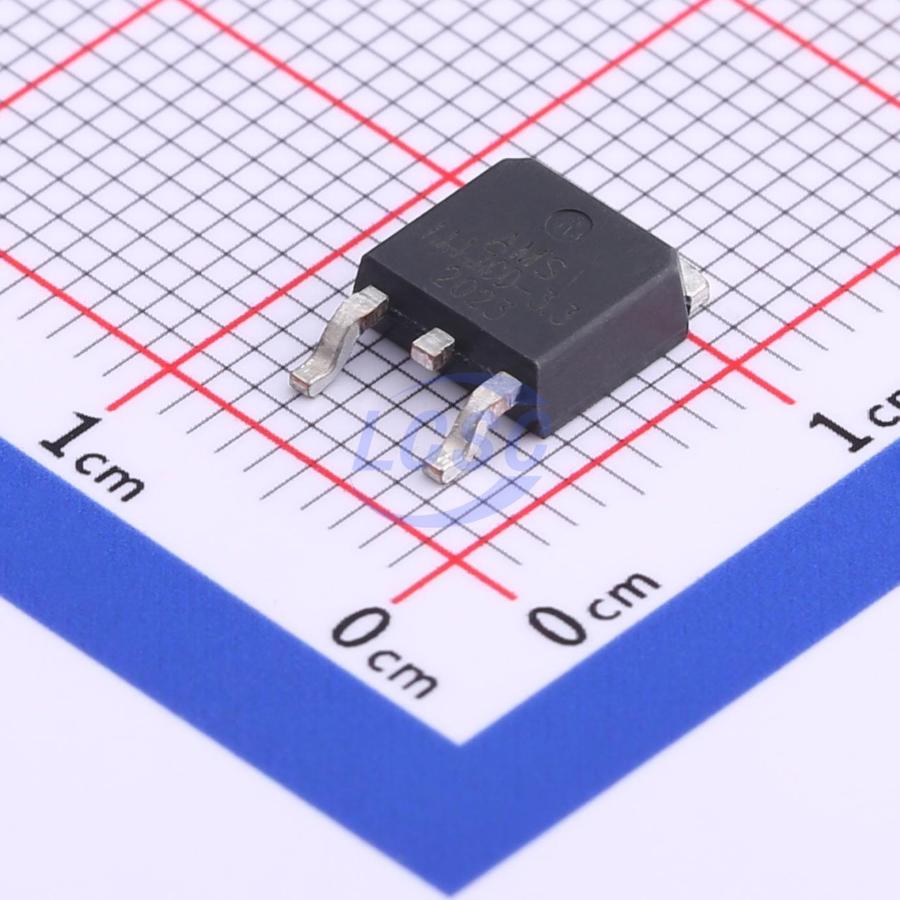

AMS1117CD-3.3
3.3V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252RoHSActive
1A Low Dropout (LDO) Regulator
- Manufacturer
- Advanced Monolithic Systems
- Manufacturer part #
- AMS1117CD-3.3
- Store part #
- C841796
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
93,607 in stock
#C841796
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.14 | ₹71.14 |
| 10+ | ₹56.35 | ₹563.50 |
| 30+ | ₹50.04 | ₹1,501.20 |
| 100+ | ₹41.99 | ₹4,199.00 |
| 500+ | ₹38.51 | ₹19,255.00 |
| 1,000+ | ₹36.55 | ₹36,550.00 |
1 × ₹71.14
₹71.14
excl. GST
₹83.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117CD-3.3
₹71.14 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry. The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.
Applications
- High Efficiency Linear Regulators
- Post Regulators for Switching Supplies
- 5V to 3.3V Linear Regulator
- Battery Chargers
- Active SCSI Terminators
- Power Management for Notebook
- Battery Powered Instrumentation
Key features
- Three Terminal Adjustable or Fixed Voltages: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
- Output Current of 1A
- Operates Down to 1V Dropout
- Line Regulation: 0.2% Max.
- Load Regulation: 0.4% Max.
- SOT-223, TO-252 and SO-8 package available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MC33269DT-3.3/TR#C46614073HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,305 | ₹18.55 · 2,305 in stock | View | |
 | SCJU1117B-3.3#C19269069JSCJ · TO-252-2L | JSCJ | TO-252-2L | 540 | ₹21.71 · 540 in stock | View |
 | CJU1117B-3.3#C3031942JSCJ · TO-252-2 | JSCJ | TO-252-2 | 3,355 | ₹24.32 · 3,355 in stock | View |
 | UZ1085L-33-TN3-R#C125622UTC · TO-252-2(DPAK) | UTC | TO-252-2(DPAK) | 13,800 | ₹26.66 · 13,800 in stock | View |
 | AMS1117-3.3TF#C50313804GREENMICRO · TO-252 | GREENMICRO | TO-252 | 1,380 | ₹9.26 · 1,380 in stock | View |
