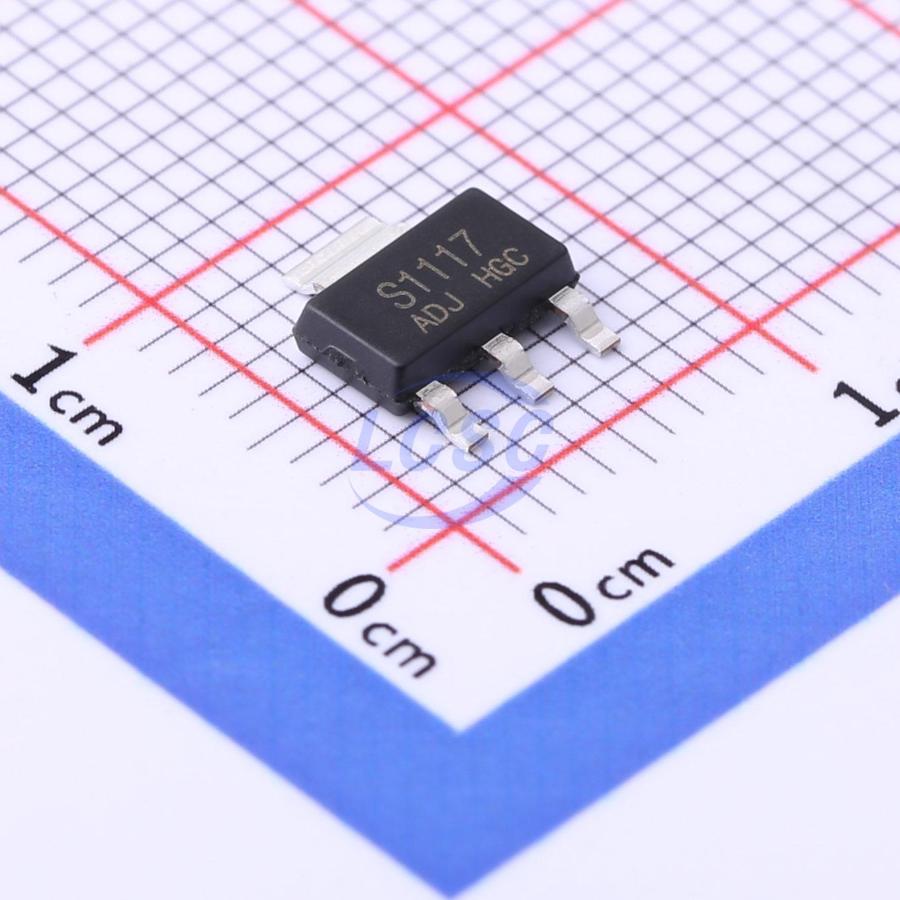

AMS1117DCY-ADJRG
Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA SOT-223-3L
SOT-223-3LROHS CompliantActive
800mA LDO voltage regulator circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- AMS1117DCY-ADJRG
- Store part #
- C2977150
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C2977150
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.21 | ₹72.10 |
| 100+ | ₹5.70 | ₹570.00 |
| 300+ | ₹4.95 | ₹1,485.00 |
| 2,500+ | ₹4.38 | ₹10,950.00 |
| 5,000+ | ₹3.93 | ₹19,650.00 |
| 10,000+ | ₹3.70 | ₹37,000.00 |
10 × ₹7.21
₹72.10
excl. GST
₹85.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117DCY-ADJRG
₹72.10 for 10 + GST
Specifications
- Output Voltage
- 1.238V~5.1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 12V
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.23 g
Overview
AMS1117 is a positive-output low-dropout three-terminal linear voltage regulator with a dropout voltage of 1.2V at 800mA output current. AMS1117 is available in two versions: fixed voltage output and adjustable voltage output. The fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and the adjustable version offer 1% voltage accuracy; the fixed 1.2V version has an output voltage accuracy of 2%. AMS1117 integrates internal overtemperature protection and current limiting circuitry, suitable for a wide range of electronic products.
Key features
- 1% output voltage accuracy for fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable versions
- 2% output voltage accuracy for fixed 1.2V output voltage
- Low dropout voltage: only 1.2V at 800mA output current
- Thermal shutdown
- Current limiting
- Temperature range: -40°C~125°C
