HANSCHIP semiconductorDatasheet (PDF)

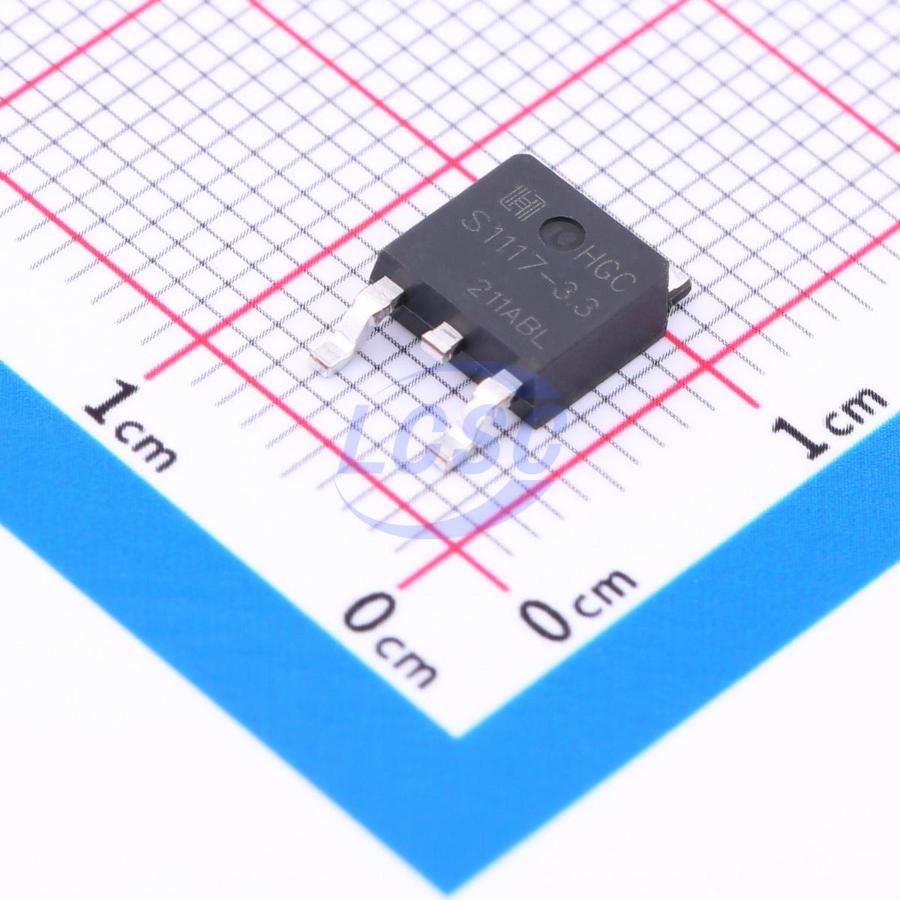

AMS1117KTP-3.3RG
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA TO-252
TO-252ROHS CompliantActive
IC REG LINEAR 3.3V 800mA TO-252
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- AMS1117KTP-3.3RG
- Store part #
- C2977134
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C2977134
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.50 | ₹62.50 |
| 50+ | ₹9.95 | ₹497.50 |
| 150+ | ₹8.68 | ₹1,302.00 |
| 500+ | ₹7.71 | ₹3,855.00 |
| 2,500+ | ₹6.63 | ₹16,575.00 |
| 5,000+ | ₹6.24 | ₹31,200.00 |
5 × ₹12.50
₹62.50
excl. GST
₹73.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117KTP-3.3RG
₹62.50 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 12V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.48 g
Overview
The AMS1117 is a positive-voltage low-dropout three-terminal linear regulator with a 1.2V dropout voltage at 800mA output current. The device is available in fixed and adjustable output voltage versions. Fixed output voltages include 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V. The adjustable version offers 1.5% output voltage accuracy, while the fixed 1.2V output version provides 2% accuracy. With integrated over-temperature protection and current limiting circuitry, it is suitable for a wide range of electronic applications.
Key features
- Fixed output voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V; adjustable version output accuracy: 1.5%
- Fixed 1.2V output accuracy: 2%
- Low dropout voltage: 1.2V at 800mA output current
- Current limiting
- Thermal shutdown
- Temperature range: -40℃ ~ 125℃
