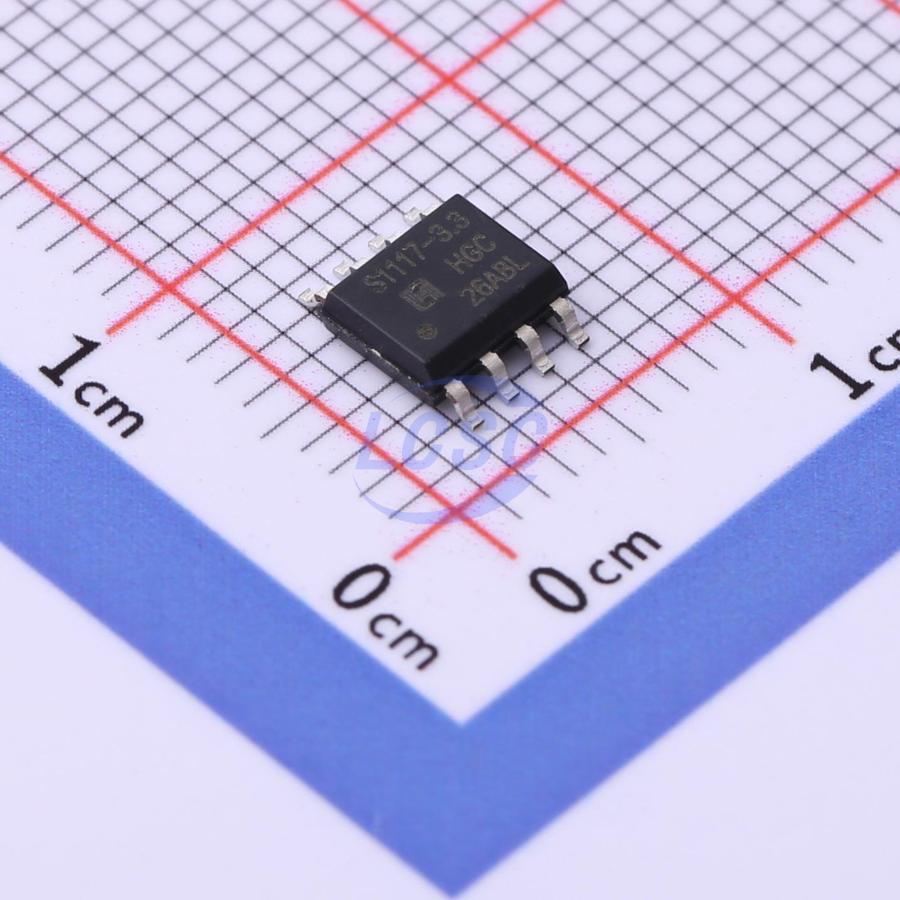

AMS1117M-3.3RG
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA SOP-8
SOP-8ROHS CompliantActive
800mA LDO regulator circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- AMS1117M-3.3RG
- Store part #
- C2977140
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,100 in stock
#C2977140
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.67 | ₹63.35 |
| 50+ | ₹10.07 | ₹503.50 |
| 150+ | ₹8.76 | ₹1,314.00 |
| 500+ | ₹7.78 | ₹3,890.00 |
| 2,500+ | ₹6.24 | ₹15,600.00 |
| 5,000+ | ₹5.85 | ₹29,250.00 |
5 × ₹12.67
₹63.35
excl. GST
₹74.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117M-3.3RG
₹63.35 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
AMS1117 is a positive-voltage low-dropout three-terminal linear voltage regulator with a dropout voltage of 1.2 V at 800 mA output current. AMS1117 is available in two versions: fixed voltage output and adjustable voltage output. Fixed output voltages of 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V and the adjustable version offer 1% voltage accuracy; the fixed 1.2 V version has an output voltage accuracy of 2%. AMS1117 integrates internal over-temperature protection and current limiting circuitry, suitable for a wide range of electronic applications.
Applications
- Laptops, PDAs, and notebook computers
- Battery chargers
- SCSI-II active terminators
- Mobile phones
- Cordless phones
- Battery-powered systems
- Portable devices
- Post regulators for switching power supplies
Key features
- 1% output voltage accuracy for fixed output voltages of 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V, and adjustable versions
- 2% output voltage accuracy for fixed 1.2 V output voltage
- Low dropout voltage: only 1.2 V at 800 mA output current
- Current limiting
- Thermal shutdown
- Temperature range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117D-3.3RG#C53368627HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,440 | ₹7.34 · 2,440 in stock | View |
