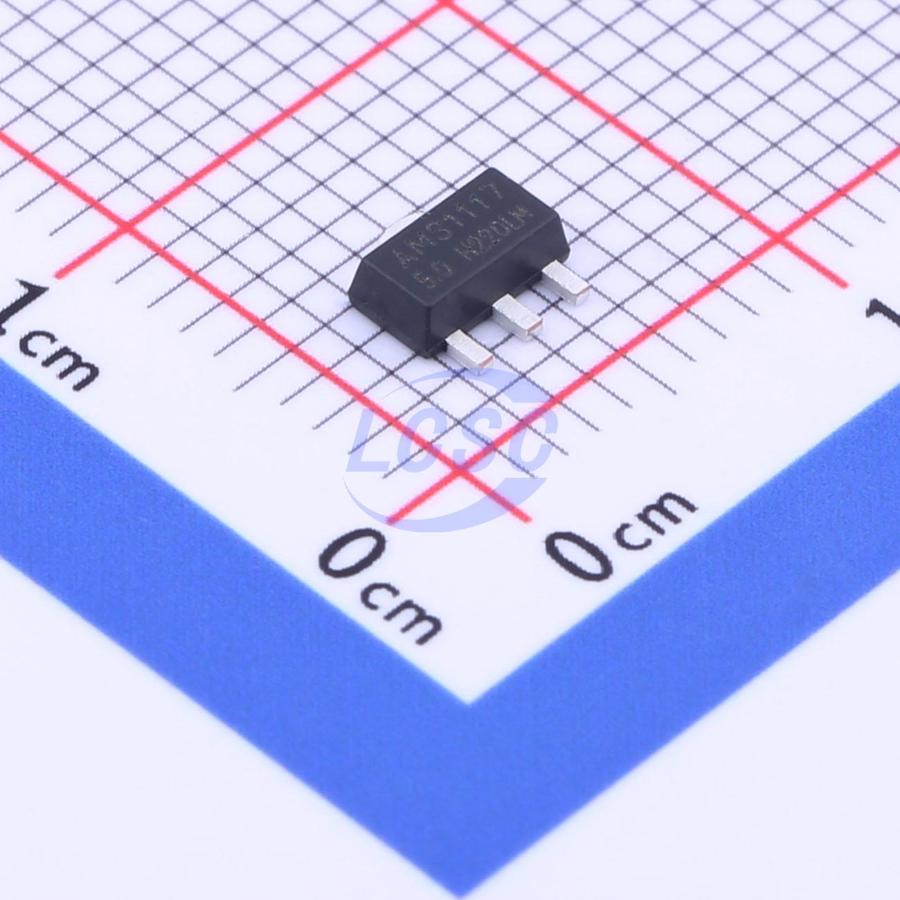

AMS1117S-5.0
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89-3
SOT-89-3ROHS CompliantActive
IC REG LINEAR 5V 1A SOT-89-3
- Manufacturer
- JSMSEMI
- Manufacturer part #
- AMS1117S-5.0
- Store part #
- C917182
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,395 in stock
#C917182
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.45 | ₹77.25 |
| 50+ | ₹12.32 | ₹616.00 |
| 150+ | ₹10.76 | ₹1,614.00 |
| 1,000+ | ₹9.00 | ₹9,000.00 |
| 2,000+ | ₹8.06 | ₹16,120.00 |
| 5,000+ | ₹7.58 | ₹37,900.00 |
5 × ₹15.45
₹77.25
excl. GST
₹91.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AMS1117S-5.0
₹77.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
The AMS1117S series is a family of low dropout regulators capable of delivering up to 1A of output current. The series offers six fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V. An adjustable output voltage version is also available. On-chip precision trimming adjusts the reference/output voltage accuracy to within ±2%. On-chip thermal shutdown prevents excessive junction temperature caused by the combined effects of overload and high ambient temperature. The AMS1117S series is available in SOT-223, TO-252, and SOT89 packages. To improve transient response and stability, a minimum 10μF tantalum capacitor is required at the output.
Applications
- Post-regulator for switching DC/DC converters
- High-efficiency linear regulator
- Battery charger
- Computer add-in cards
- Motherboard clock supply
- LCD displays
- Set-top boxes
Key features
- Low dropout
- Load regulation max 0.5%
- Optimized for low-voltage applications
- On-chip thermal shutdown protection
- Maximum input voltage 30V
- Adjustable or fixed output voltage: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
- Standard SOT-223, TO-252, SOT89 packages
