HANSCHIP semiconductorDatasheet (PDF)

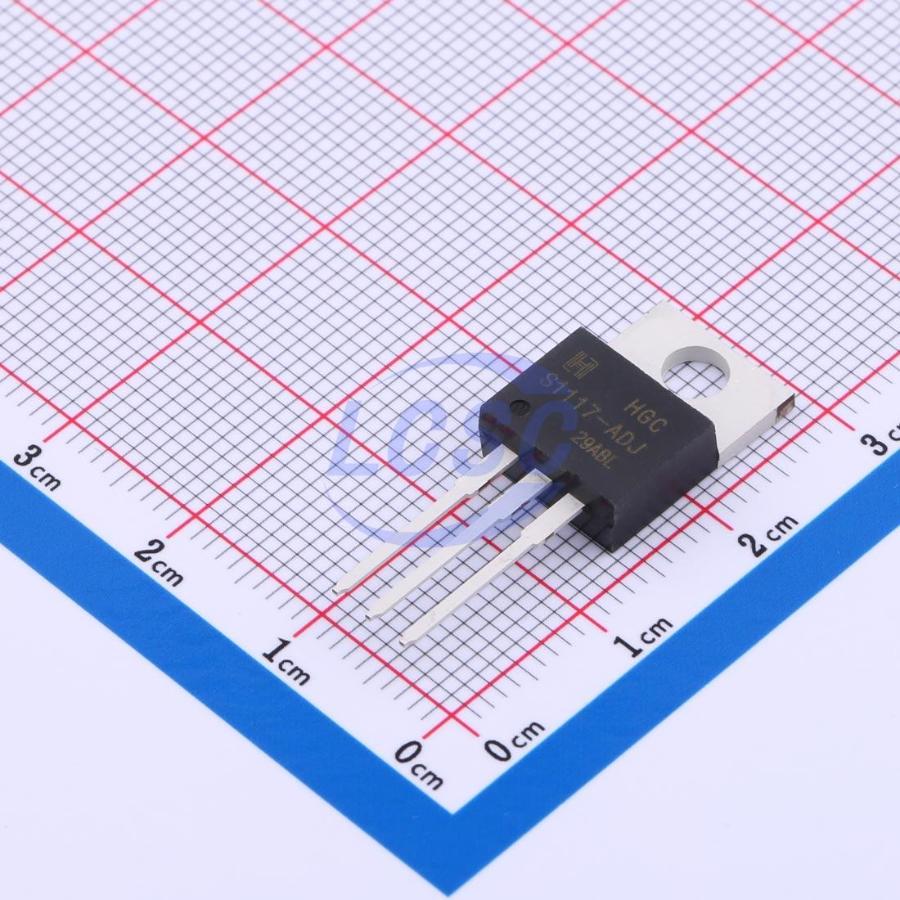

AMS1117T-ADJG
Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA TO-220-3
TO-220-3ROHS CompliantActive
800mA LDO voltage regulator circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- AMS1117T-ADJG
- Store part #
- C2977161
- Package / case
- TO-220-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C2977161
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.02 | ₹150.10 |
| 50+ | ₹22.68 | ₹1,134.00 |
| 150+ | ₹19.87 | ₹2,980.50 |
| 500+ | ₹16.37 | ₹8,185.00 |
| 2,000+ | ₹14.80 | ₹29,600.00 |
| 5,000+ | ₹13.87 | ₹69,350.00 |
5 × ₹30.02
₹150.10
excl. GST
₹177.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AMS1117T-ADJG
₹150.10 for 5 + GST
Specifications
- Output Voltage
- 1.238V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.1mA
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 12V
- Output Type
- Adjustable
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.74 g
Overview
The AMS1117 is a positive-voltage low-dropout three-terminal linear regulator with a 1.2V dropout voltage at 800mA output current. The device is available in fixed and adjustable output voltage versions. Fixed output voltages include 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V. The adjustable version offers 1.5% output voltage accuracy, while the fixed 1.2V output version provides 2% accuracy. With integrated over-temperature protection and current limiting circuitry, it is suitable for a wide range of electronic applications.
Key features
- Fixed output voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V; adjustable version output accuracy: 1.5%
- Fixed 1.2V output accuracy: 2%
- Low dropout voltage: 1.2V at 800mA output current
- Current limiting
- Thermal shutdown
- Temperature range: -40℃ ~ 125℃
