DIODES

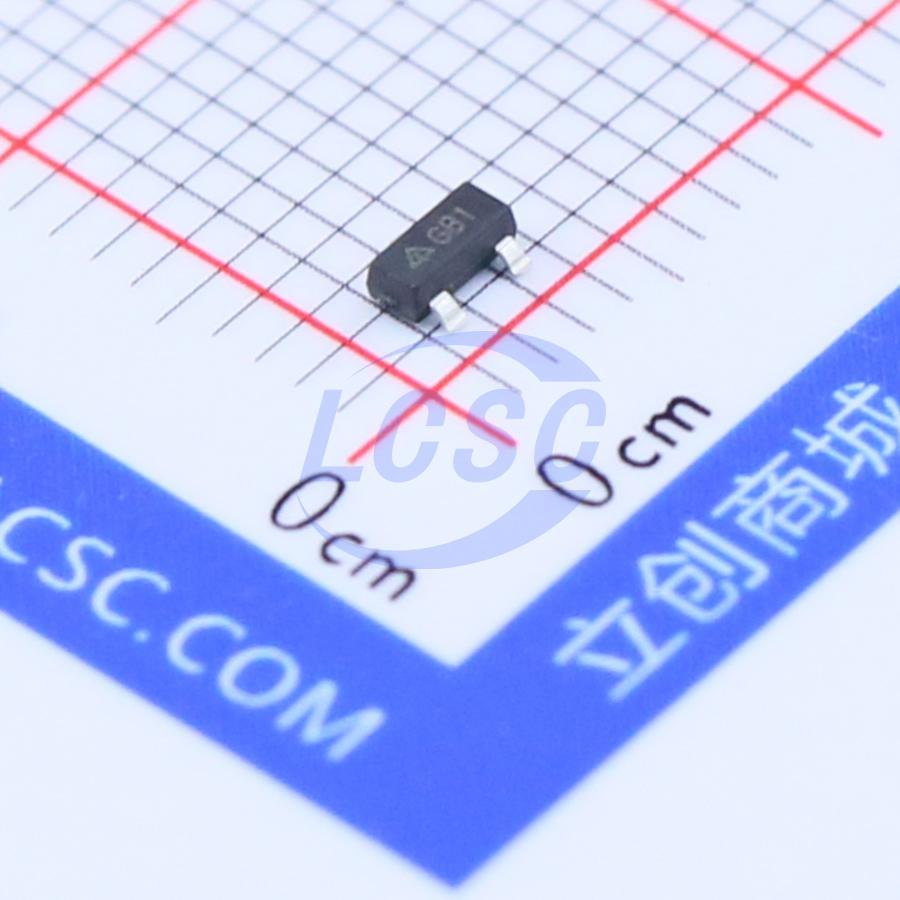

AN431AN-ATRG1

2.5V~36V ±0.5% 100mA Adjustable SOT-23 Voltage Reference RoHS

SOT-23ROHS3 CompliantActive

Adjustable Precision Shunt Regulators

Manufacturer: DIODES
Manufacturer part #: AN431AN-ATRG1
Store part #: C97717
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

39,455 in stock

#C97717

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.88	₹69.40
50+	₹11.01	₹550.50
150+	₹9.58	₹1,437.00
500+	₹8.51	₹4,255.00
3,000+	₹7.65	₹22,950.00
6,000+	₹7.21	₹43,260.00

Quantity (min 5, multiples of 5)

5 × ₹13.88

₹69.40

excl. GST

₹81.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AN431AN-ATRG1

₹69.40 for 5 + GST

Specifications

Output Voltage: 2.5V~36V
Tolerance: ±0.5%
Minimum Cathode Current for Regulation: 1mA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

The AN431 series ICs are three-terminal adjustable shunt regulators with guaranteed thermal stability over a full operation range. These ICs feature sharp turn-on characteristics, low temperature coefficient and low output impedance, which make them ideal substitutes for Zener diodes in applications such as switching power supply, charger and other adjustable regulators. The output voltage of these ICs can be set to any value between VREF (2.5V) and the maximum cathode voltage (36V). The AN431 precision reference is offered in two voltage tolerance: 0.5% and 1.0%. These ICs are available in SOT-23 package.

Applications

Charger
Voltage Adapter
Switching Power Supply
Graphic Card
Precision Voltage Reference

Key features

SOT-23
Programmable Precise Output Voltage from 2.5V to 36V
High Stability under Capacitive Load
Low Temperature Deviation: 4.5mV Typical Low Equivalent Full-range Temperature Coefficient with 20PPM/°C
Typical Low Dynamic Output Resistance: 0.15Ω Typical
Sink Current Capacity from 1mA to 100mA
Low Output Noise
Wide Operating Range of -40 to +125°C
Lead-Free Packages: SOT-23 Totally Lead-Free; RoHS Compliant
Lead-Free Packages, Available in “Green” Molding Compound: SOT-23 Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
