VBsemi ElecDatasheet (PDF)

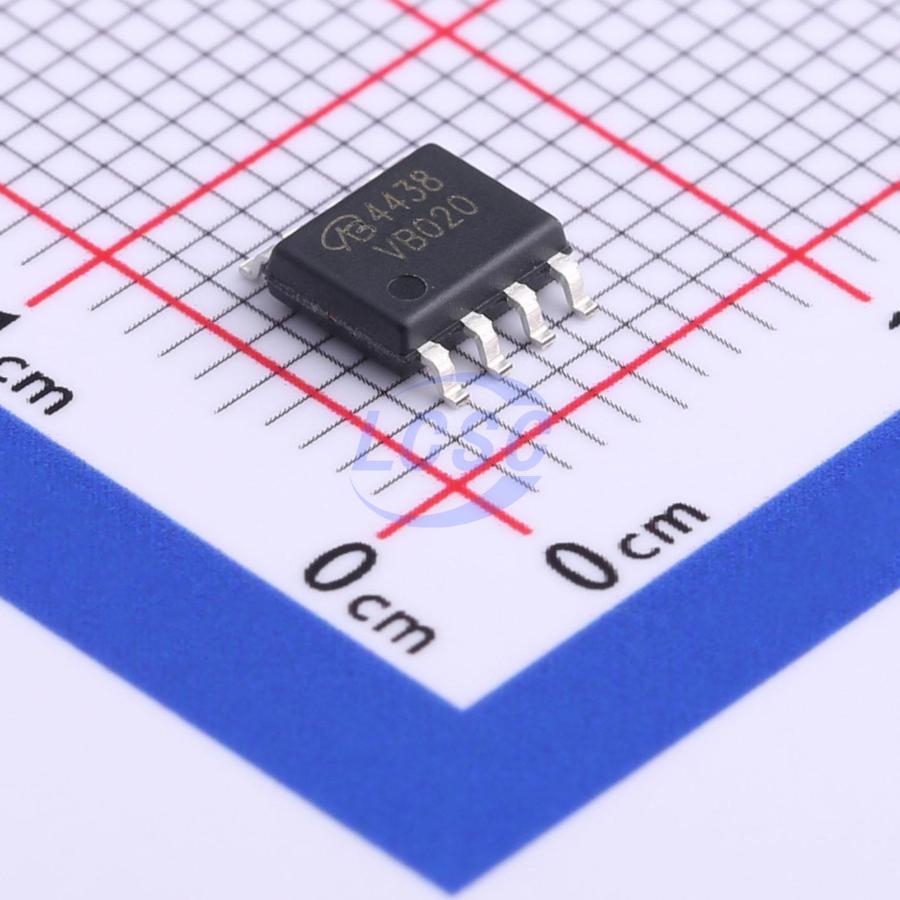

AO4438-VB
N-Channel 60V 7.6A 2.5W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 60V 7.6A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO4438-VB
- Store part #
- C693141
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C693141
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.50 | ₹57.50 |
| 10+ | ₹45.71 | ₹457.10 |
| 30+ | ₹40.52 | ₹1,215.60 |
| 100+ | ₹34.13 | ₹3,413.00 |
| 500+ | ₹29.15 | ₹14,575.00 |
| 1,000+ | ₹27.54 | ₹27,540.00 |
1 × ₹57.50
₹57.50
excl. GST
₹67.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AO4438-VB
₹57.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 90pF
- Current - Continuous Drain(Id)
- 7.6A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 25mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.5nC@4.5V;21nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V;2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- Optimized for "low-side" synchronous rectifier operation
- 100% Rg and UIS tested
- Available in RoHS-compliant, halogen-free package
