VBsemi ElecDatasheet (PDF)

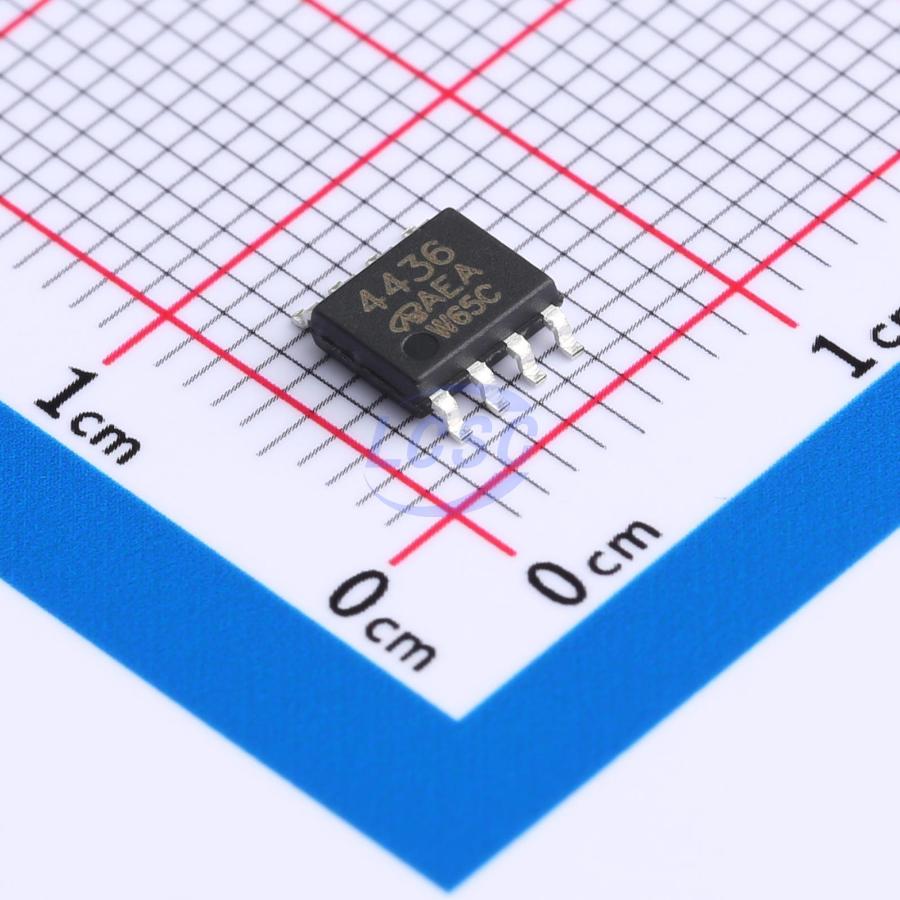

SI4436DY-T1-E3-VB
N-Channel 60V 7.6A 2.5W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 60V 7.6A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4436DY-T1-E3-VB
- Store part #
- C5179591
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C5179591
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.14 | ₹61.14 |
| 10+ | ₹48.74 | ₹487.40 |
| 30+ | ₹43.28 | ₹1,298.40 |
| 100+ | ₹36.77 | ₹3,677.00 |
| 500+ | ₹32.15 | ₹16,075.00 |
| 1,000+ | ₹30.47 | ₹30,470.00 |
1 × ₹61.14
₹61.14
excl. GST
₹72.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4436DY-T1-E3-VB
₹61.14 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 90pF
- Current - Continuous Drain(Id)
- 7.6A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 25mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V;10.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V;2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- Optimized for "low-side" synchronous rectifier operation
- 100% Rg and UIS tested
- Available in RoHS-compliant, halogen-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO4438-VB#C693141VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 17 | ₹57.50 · 17 in stock | View |
 | FDS5351-NL-VB#C7463597VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 300 | ₹62.39 · 300 in stock | View |
 | IRF7478TRPBF-VB#C5878808VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 161 | ₹57.06 · 161 in stock | View |
 | SI4850DY-T1-E3-VB#C6705319VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 3,498 | ₹41.83 · 3,498 in stock | View |
 | RSS065N06-TB-VB#C5444643VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹60.20 · 50 in stock | View |
