AOSDatasheet (PDF)

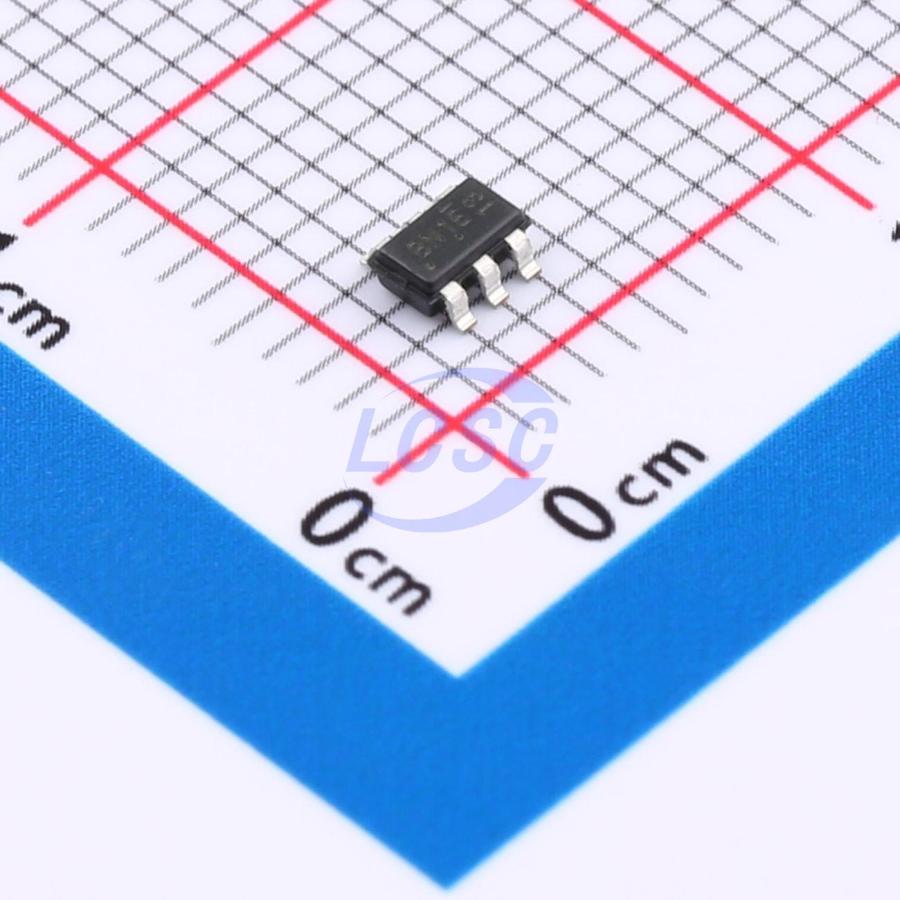

AOZ1282CI-1
1MHz Step-down type Adjustable 600mA 800mV~30.6V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS3 CompliantActive
600mA Simple Buck Regulator
- Manufacturer
- AOS
- Manufacturer part #
- AOZ1282CI-1
- Store part #
- C2070766
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,782 in stock
#C2070766
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.33 | ₹88.33 |
| 10+ | ₹71.17 | ₹711.70 |
| 30+ | ₹62.50 | ₹1,875.00 |
| 100+ | ₹54.01 | ₹5,401.00 |
| 500+ | ₹48.96 | ₹24,480.00 |
| 1,000+ | ₹46.24 | ₹46,240.00 |
1 × ₹88.33
₹88.33
excl. GST
₹104.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AOZ1282CI-1
₹88.33 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Output Voltage
- 800mV~30.6V
- Quiescent Current
- 1.5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The AOZ1282CI-1 is a high efficiency, simple to use, 600mA buck regulator flexible enough to be optimized for a variety of applications. The AOZ1282CI-1 works from a 4.5V to 36V input voltage range, and provides up to 600mA of continuous output current. The output voltage is adjustable down to 0.8V. The fixed switching frequency of 1MHz PWM operation reduces inductor size.
Applications
- Industrial/power meters
- Set top boxes and cable modems
- DVD drives and HDDs
- LCD Monitors & TVs
- Telecom/Networking/Datacom equipment
Key features
- 4.5V to 36V operating input voltage range
- 420mΩ internal NMOS
- Up to 95% efficiency
- Internal compensation
- 600mA continuous output current
- Fixed 1MHz PWM operation
- Internal soft start
- Output voltage adjustable down to 0.8V
- Cycle-by-cycle current limit
- Short-circuit protection
- Thermal shutdown
- Small size SOT23-6L
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOZ1282CI-2#C176766AOS · SOT-23-6 | AOS | SOT-23-6 | On request | Price on request | Quote |
 | R1245N001B-TR-FE#C2468814Nisshinbo Micro Devices Inc. · SOT-23-6W | Nisshinbo Micro Devices Inc. | SOT-23-6W | 100 | ₹251.98 · 100 in stock | View |
 | MSLMR14010ADDCR#C49375284MSKSEMI · SOT-23-6 | MSKSEMI | SOT-23-6 | 334 | ₹49.95 · 334 in stock | View |
 | ETA2807FT2G#C22362744etasolution · FCTSOT-23-6 | etasolution | FCTSOT-23-6 | 2,186 | ₹57.79 · 2,186 in stock | View |
 | LM2842YMK-ADJL/NOPB#C2070620TI · TSOT-23-6 | TI | TSOT-23-6 | 301 | ₹385.96 · 301 in stock | View |
