AOZ1360AIL

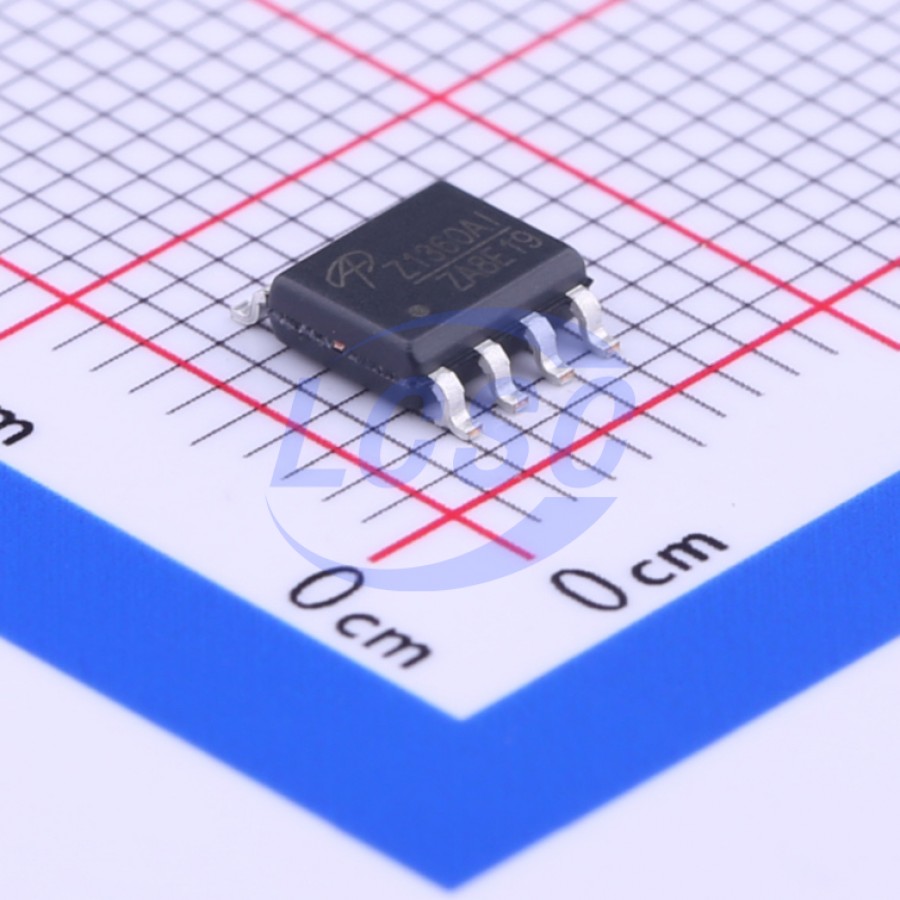

The AOZ1360 is a member of high - side load switch family intended for applications that require circuit protection. The device operates from a source voltage between 5.5V and 28V. The internal current limiting circuit protects the input supply voltage from large current load. The current limit can be set with an external resistor. The AOZ1360 provides thermal protection function that limits excessive power dissipation. The device employs internal soft - start circuitry to control in - rush current due to highly capacitive loads associated with hot - plug events. It features low quiescent current of 220 μA and the supply current reduces to less than 1 μA at shutdown. The AOZ1360 is available in either an SO - 8 or a DFN - 4mm×4mm package which can operate over a - 40°C to + 85°C temperature range. The AOZ1360 is a 35 mΩ P - channel high - side load switch with adjustable soft - start slew - rate control, programmable current limit and thermal shutdown. It operates with an input voltage range from 5.5 V to 28 V.

Applications

• Notebook PCs
• Hot swap supplies

Key features

• 35mΩ maximum on resistance
• Programmable current limit
• 5.5V to 28V operating input voltage
• Low quiescent current
• Under - voltage lockout
• Thermal shutdown protection
• 2.5kV ESD rating
• Available in SO - 8 or DFN - 10 package
