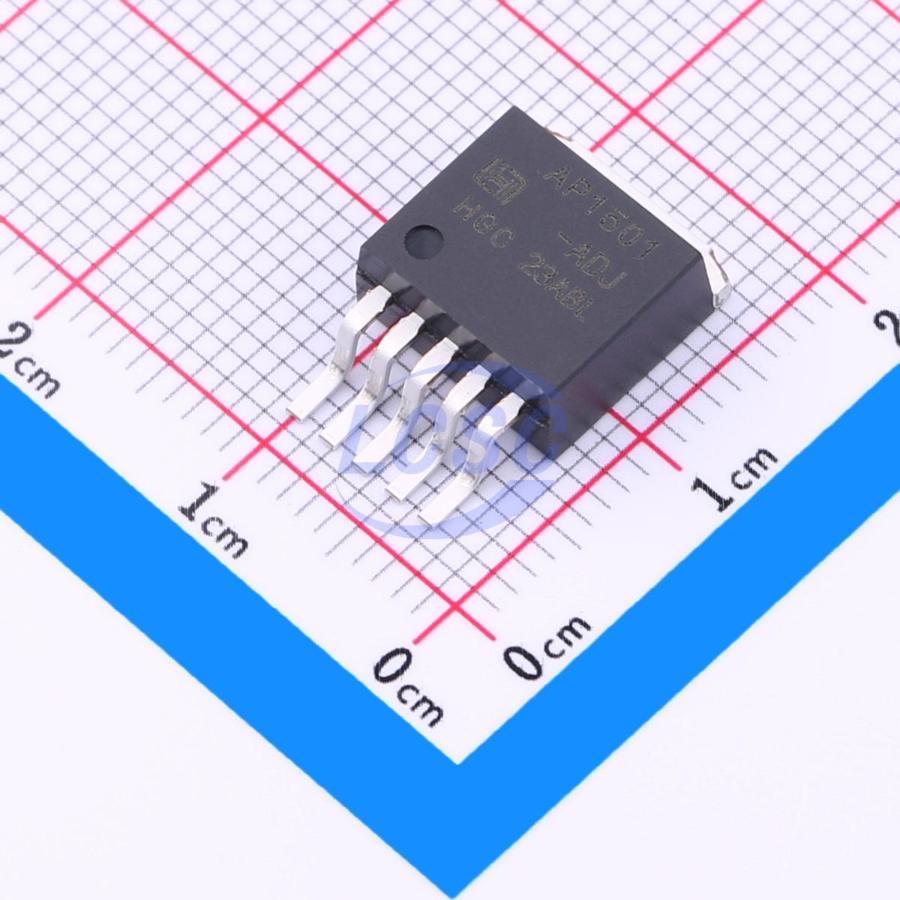

AP1501S-ADJRG

Buck Switching Regulator IC Adjustable 1.23V~37V 1 Output 3A TO-263-5

TO-263-5ROHS CompliantActive

3A 150KHz 40V DC-DC voltage regulator circuit

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: AP1501S-ADJRG
Store part #: C2977122
Package / case: TO-263-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,183 in stock

#C2977122

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹62.45	₹62.45
10+	₹49.71	₹497.10
30+	₹44.27	₹1,328.10
100+	₹37.59	₹3,759.00
500+	₹31.12	₹15,560.00
1,000+	₹29.24	₹29,240.00

Quantity (min 1)

1 × ₹62.45

₹62.45

excl. GST

₹73.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

AP1501S-ADJRG

₹62.45 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 150kHz
Number of Outputs: 1
Function: Step-down type
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 5V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 1.23V~37V
Output Current: 3A
Quiescent Current: 2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.804 g

Overview

AP1501 is a fixed 150kHz PWM DC-DC step-down regulator. The device delivers 3A output current with high efficiency, low output ripple, and excellent line and load regulation. Its PWM control architecture supports linear duty cycle adjustment from 0 to 100%. An on-chip fixed-frequency oscillator and frequency compensation circuit minimize the required external component count, simplifying application design. Additional features include enable control with hysteresis, over-temperature protection, overcurrent protection, and cycle-by-cycle overcurrent protection. When secondary overcurrent protection is triggered, an internal frequency reduction mechanism lowers the switching frequency from 150kHz to 50kHz.

Applications

LCD monitors
LCD TVs
Digital photo frames
TV set-top boxes
Modems
Telephony and networking equipment

Key features

Input voltage range: 4.5V to 40V
Regulated output options: 3.3V, 5V, 12V fixed output and adjustable output version with adjustable range of 1.23V to 37V
Adjustable duty cycle range: 0~100%
Minimum saturation voltage drop: 1.5V
Fixed switching frequency: 150kHz
Fixed output current capability: 3A
Enable switch control with hysteresis
Built-in over-temperature protection and over-current protection
Built-in frequency compensation
High efficiency, high line regulation and load regulation

Alternatives

Similar parts — check the datasheet before substituting.
