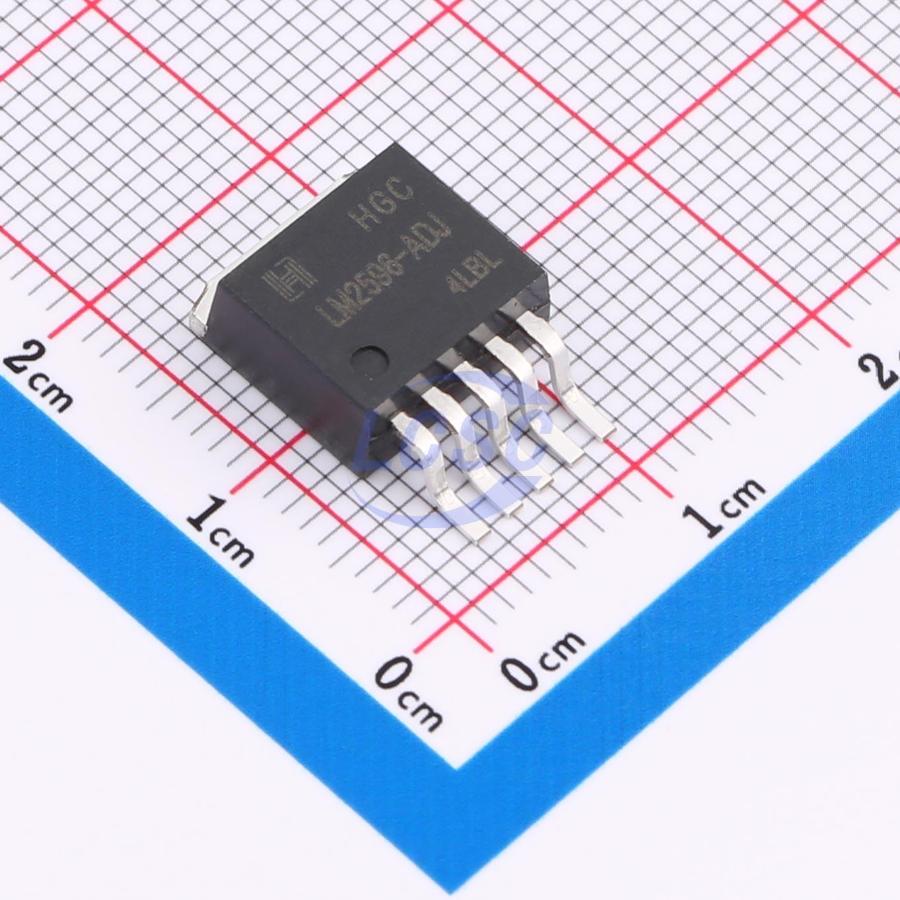

LM2596S-ADJRG

Buck Switching Regulator IC Adjustable 1.23V~37V 1 Output 3A TO-263-5

TO-263-5ROHS CompliantActive

3A 150kHz DC switching voltage regulator circuit

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM2596S-ADJRG
Store part #: C2977091
Package / case: TO-263-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,678 in stock

#C2977091

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹66.92	₹66.92
10+	₹53.24	₹532.40
30+	₹47.36	₹1,420.80
100+	₹40.19	₹4,019.00
500+	₹30.64	₹15,320.00
1,000+	₹28.68	₹28,680.00

Quantity (min 1)

1 × ₹66.92

₹66.92

excl. GST

₹78.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

LM2596S-ADJRG

₹66.92 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 127kHz~173kHz
Number of Outputs: 1
Function: Step-down type
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 5V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 1.23V~37V
Output Current: 3A
Quiescent Current: 2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.804 g

Overview

This is a 150KHz fixed-frequency PWM DC-DC buck converter capable of 3A output current, featuring high efficiency, low ripple, high line regulation, and load regulation. The device operates in PWM mode, enabling linear duty cycle adjustment from 0 to 100%. An on-chip fixed-frequency oscillator and frequency compensation module minimize the required external component count. Additional integrated features include enable control with hysteresis, over-temperature protection, over-current protection, and secondary over-current protection. When secondary over-current protection is triggered, the operating frequency is reduced from 150KHz to 50KHz. The primary function is to convert high-ripple, high-noise, high-voltage DC input into stable, low-ripple, low-noise, low-voltage DC output. The product family is offered in four output voltage versions: fixed 3.3V, 5V, 12V, and an adjustable output voltage version.
