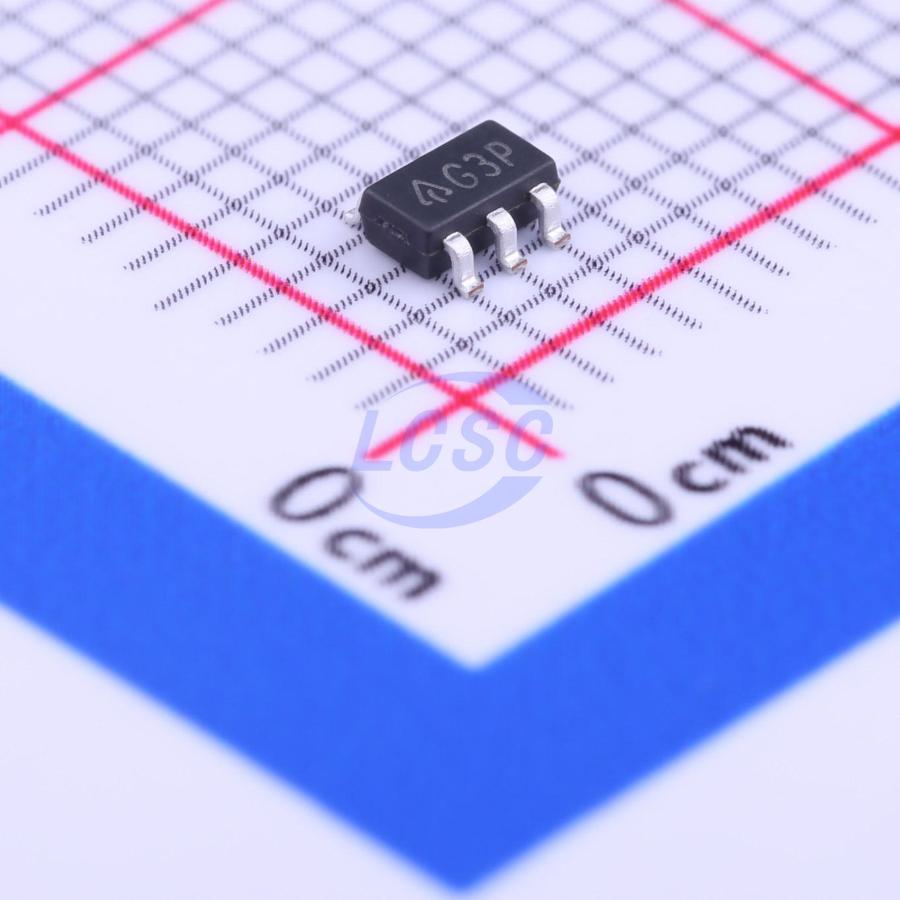

AP2112K-3.3TRG1

The AP2112 is CMOS process low dropout linear regulator with enable function, the regulator delivers a guaranteed 600mA (min.) continuous load current. The AP2112 is available with a fixed output voltage of 1.2V, 1.8V, 2.5V, 2.6V, or 3.3V. The LDO has an output accuracy of ±1.5% and a very fast loop response providing excellent performance for dealing with line and load transients. The AP2112 includes an auto discharge function which connects the output to ground via 60Ω of resistance when the device is disabled. The regulator features low power consumption, and provides SOT25, SOT89-5, and SO-8 packages.

Applications

• Laptop Computer
• LCD Monitor
• Portable DVD

Key features

• Output Voltage Accuracy: ±1.5%
• Output Current: 600mA (Min.)
• Foldback Short Current Protection: 50mA
• Enable Function to Turn ON/OFF VOUT
• Low Dropout Voltage (3.3V): 250mV (Typ.) @lour = 600mA
• Excellent Load Regulation: 0.2%/A (Typ.)
• Excellent Line Regulation: 0.02%/v (Typ.)
• Low Quiescent Current: 55μA (Typ.)
• Low Standby Current: 0.01μA (Typ.)
• Low Output Noise: 50μv RMS
• PSRR: 100Hz -65dB, 1kHz -65dB
• OTSD Protection
• Stable with 1.0μF Flexible Cap: Ceramic, Tantalum and Aluminum Electrolytic
• Operation Temperature Range: -40°C to +85°C
• ESD: MM 400V, HBM 4000V
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
