MSKSEMI

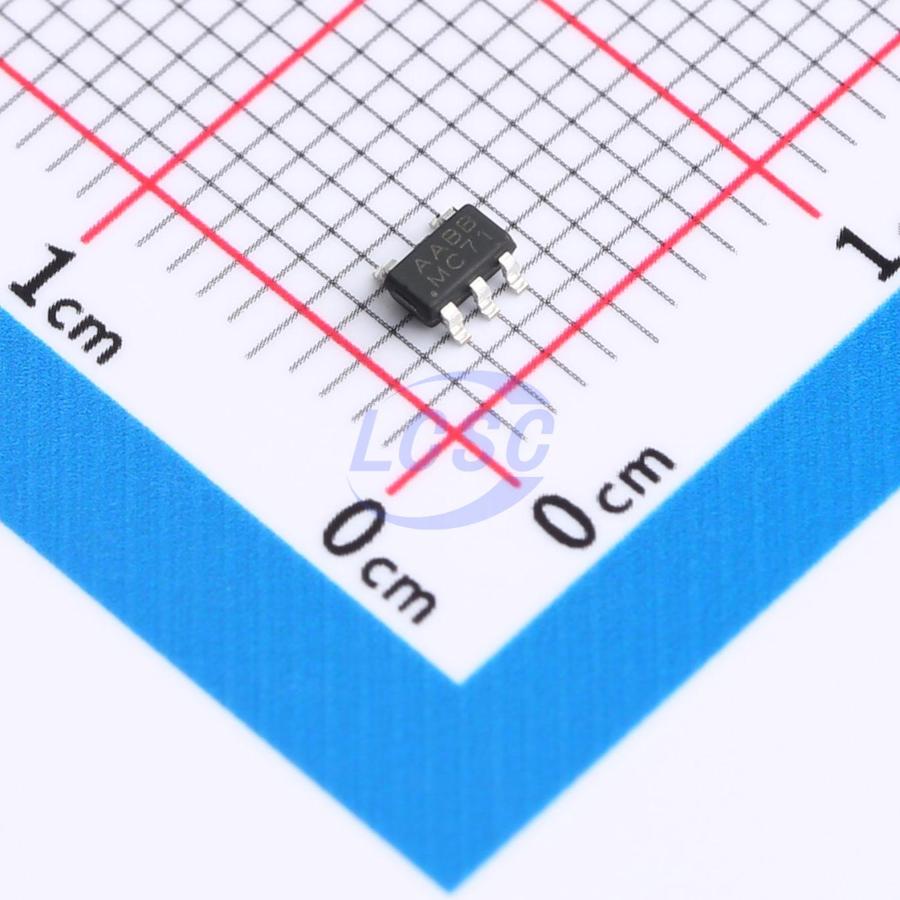

AP2125K-1.8TRG1(MS)

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5

SOT-23-5RoHSActive

Low quiescent current regulator

Manufacturer: MSKSEMI
Manufacturer part #: AP2125K-1.8TRG1(MS)
Store part #: C22365429
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,840 in stock

#C22365429

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.73	₹68.65
50+	₹10.85	₹542.50
150+	₹9.42	₹1,413.00
500+	₹8.33	₹4,165.00
3,000+	₹7.47	₹22,410.00
6,000+	₹7.04	₹42,240.00

Quantity (min 5, multiples of 5)

5 × ₹13.73

₹68.65

excl. GST

₹81.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP2125K-1.8TRG1(MS)

₹68.65 for 5 + GST

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The AP2125K-X.XTRG1(MS) series is a family of low dropout (LDO) regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low power consumption, and compact packaging. The AP2125K-X.XTRG1(MS) offers an ultra-low quiescent current of 2uA, making it particularly well-suited for battery-powered devices and long-term standby applications. It helps reduce system standby power consumption, effectively extending standby time and battery life. The AP2125K-X.XTRG1(MS) is available in a version with an EN enable pin. Pulling the EN pin low enters shutdown mode, in which the quiescent current drops to as low as 100nA (typical). The AP2125K-X.XTRG1(MS) series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and the entire output load current range of 0mA to 300mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtops, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2µA quiescent current (no load)
±2% output voltage accuracy
300mA output current capability
100nA shutdown current (optional version)
Wide input voltage range: 1.2V to 5.5V
Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Ceramic or tantalum capacitor compatible
Current limiting protection
Over-temperature protection
