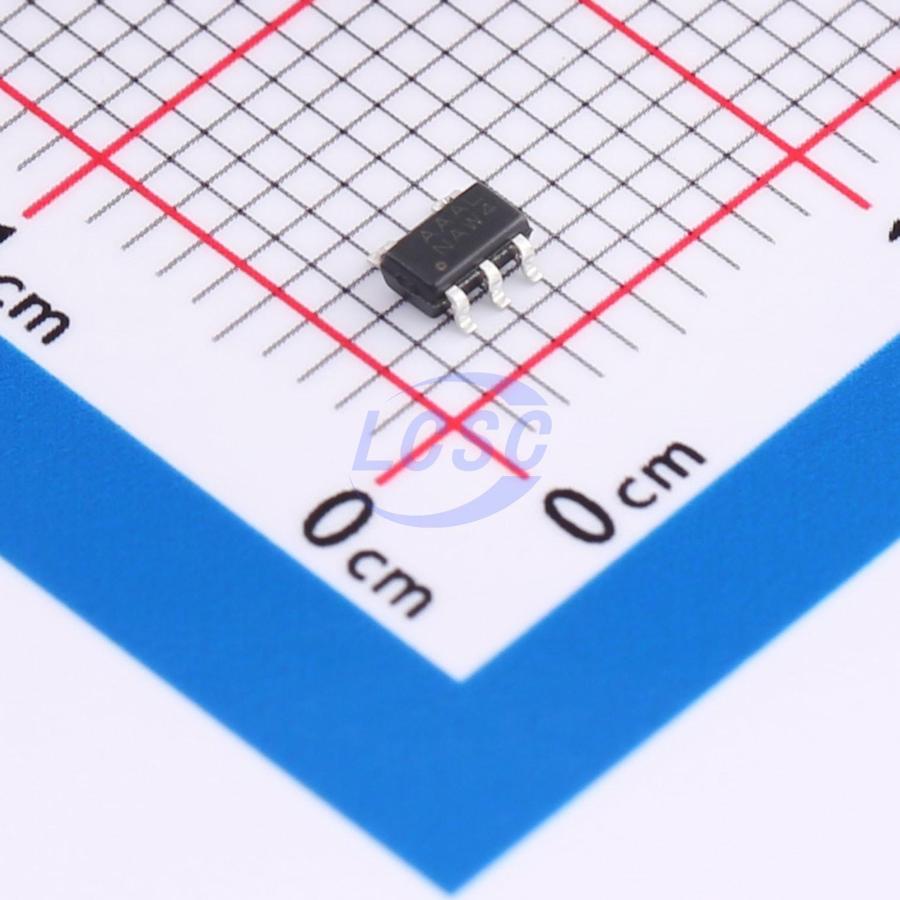

AP2127K-2.5TRG1-MS

The AP2127K-X.XTRG1-MS series is a family of LDO regulators featuring a wide 1.2V to 6V input voltage range, low dropout voltage, low power consumption, and compact packaging. With a quiescent current as low as 2μA, the AP2127K-X.XTRG1-MS is particularly well-suited for battery-powered and long-term standby applications, helping to reduce system standby power consumption and effectively extending standby time and battery life. An EN pin version is available for the AP2127K-X.XTRG1-MS. Pulling the EN pin low activates shutdown mode, in which the quiescent current drops to as low as 10nA (typical). The AP2127K-X.XTRG1-MS series supports ceramic output capacitors and operates stably across the full 1.2V to 6V input voltage range and the entire output load current range of 0mA to 600mA.

Applications

• Handheld, battery-powered devices
• Low-power microprocessors
• Laptops, palmtop computers, and PDAs
• Wireless communication devices
• Audio/video equipment
• Automotive navigation systems

Key features

• 2µA quiescent current (no load)
• ±2% output voltage accuracy
• 600mA output current capability
• 10nA shutdown current (optional version)
• Wide input voltage range: 1.2V to 6V
• Low dropout: 0.32V (at ΔVO = 3.3V / Io = 600mA)
• Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V; ADJ adjustable output with 0.8V reference voltage
• Compatible with ceramic or tantalum capacitors
• Current limiting protection
• Over-temperature protection
• Available in SOT-23-5 package
