DIODES

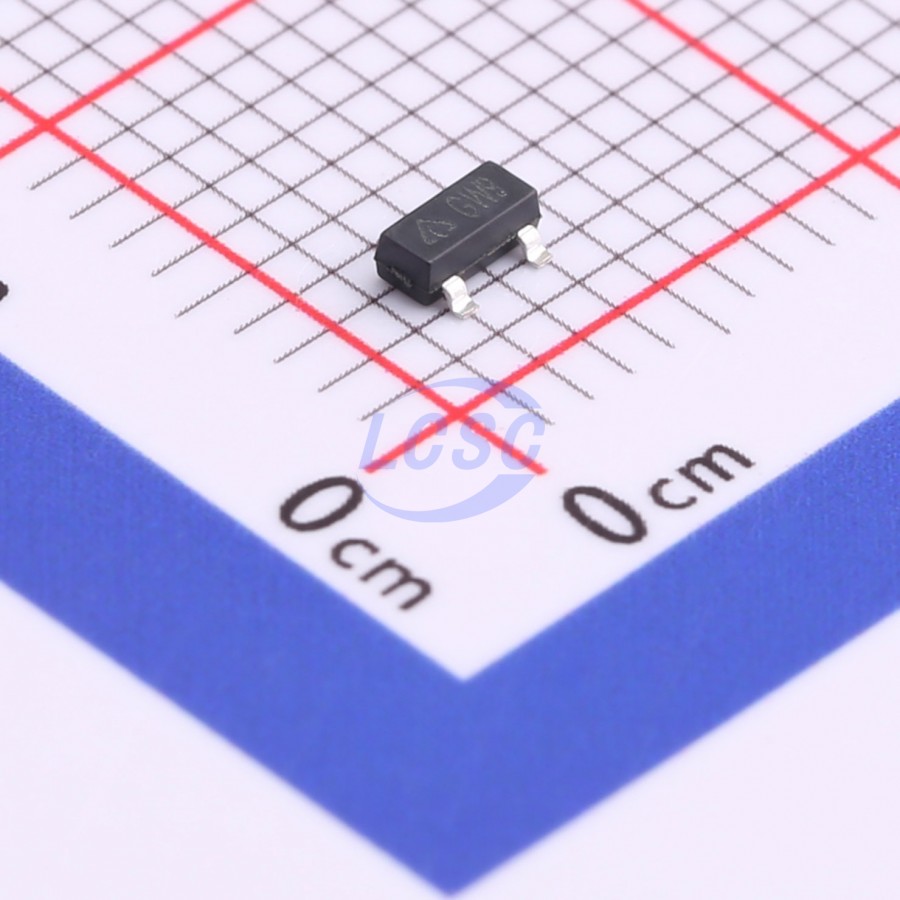

AP2127N-3.3TRG1

3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23ROHS3 CompliantActive

300mA HIGH SPEED, EXTREMELY LOW NOISE CMOS LDO REGULATOR

Manufacturer: DIODES
Manufacturer part #: AP2127N-3.3TRG1
Store part #: C176954
Package / case: SOT-23
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,695 in stock

#C176954

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹24.78	₹123.90
50+	₹19.57	₹978.50
150+	₹17.33	₹2,599.50
500+	₹14.54	₹7,270.00
3,000+	₹13.30	₹39,900.00
6,000+	₹12.54	₹75,240.00

Quantity (min 5, multiples of 5)

5 × ₹24.78

₹123.90

excl. GST

₹146.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP2127N-3.3TRG1

₹123.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 60uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 6V
Features: Enable control;Built-in soft-start;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

The AP2127 Series are positive voltage regulator ICs fabricated by CMOS process. The AP2127 Series have features of low dropout voltage, low noise, high output voltage accuracy, and low current consumption which make them ideal for use in various battery-powered devices. The AP2127 has 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.2V, and 4.75V fixed voltage versions and 0.8V to 5.5V adjustable voltage versions. The AP2127 Series are available in SOT-23 (for fixed versions only), SOT-23-3 (for fixed versions only), SOT-23-5, SOT-89 (for fixed versions only) packages.

Applications

Datacom
Notebook Computers
Mother Board

Key features

Wide Operating Voltage: 2.5V to 6V
High Output Voltage Accuracy: ±2%
High Ripple Rejection: 68dB @ f = 1kHz, 54dB
Low Standby Current: 0.1μA
Low Dropout Voltage: 170mV @ 300mA for VOUT = 3.3V, 140mV @ 300mA for VOUT = 4.75V
Low Quiescent Current: 60μA Typical
Low Output Noise: 60μVRMS @ VOUT = 0.8V
Short Current Limit: 50mA
Over Temperature Protection
Compatible with Low ESR Ceramic Capacitor: 1μF for CIN and COUT
Excellent Line/Load Regulation
Soft Start Time: 50μs
Auto Discharge Resistance: RDS(ON) = 60Ω
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SL9350L33SC#C7543326Slkor · SOT-23-3	Slkor	SOT-23-3	2,880	₹9.87 · 2,880 in stock	View
CJ6205A33M#C2829387JSCJ · SOT-23-3L	JSCJ	SOT-23-3L	1,725	₹13.60 · 1,725 in stock	View
AP2125N-3.3TRG1#C150715DIODES · SOT-23	DIODES	SOT-23	3,625	₹18.71 · 3,625 in stock	View
ME6118A33M3G#C427591MICRONE · SOT23-3	MICRONE	SOT23-3	560	₹9.57 · 560 in stock	View
ME6211A33M3G-N#C168807MICRONE · SOT-23-3	MICRONE	SOT-23-3	14,620	₹8.48 · 14,620 in stock	View
