DIODES

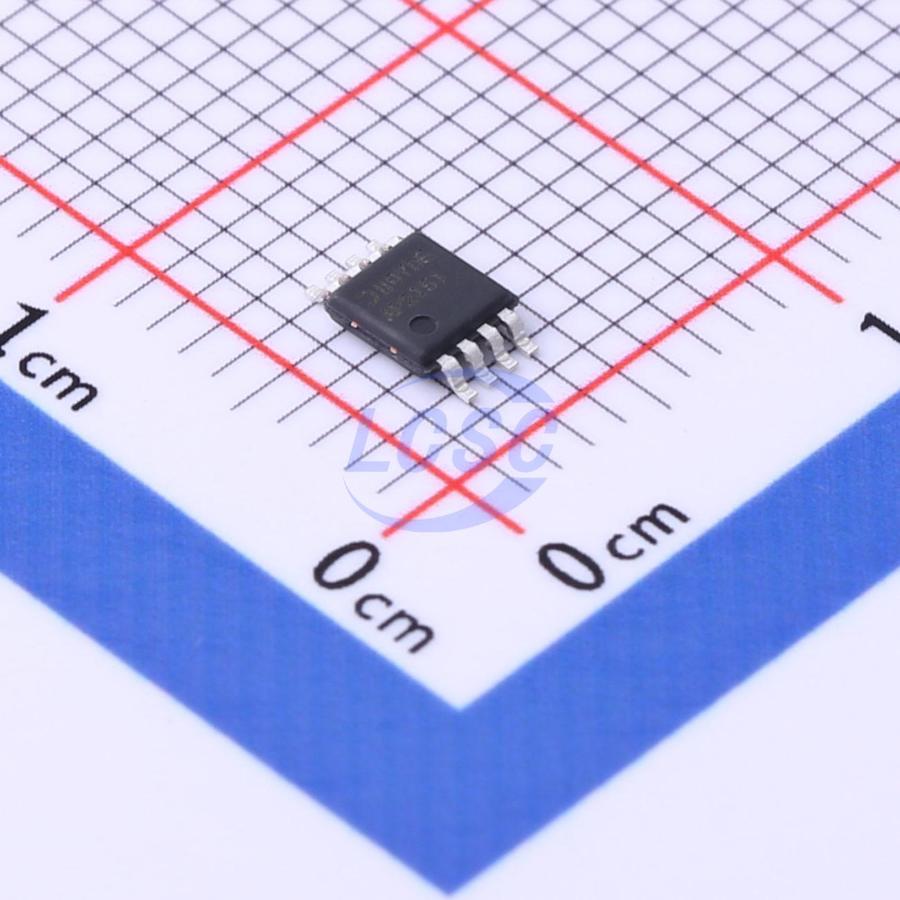

AP2151MPG-13

1 Active High 500mA High Side Switch MSOP-8-EP Power Distribution Switches, Load Drivers RoHS

MSOP-8-EPROHS3 CompliantActive

Single Channel Current-Limited Power Switch

Manufacturer: DIODES
Manufacturer part #: AP2151MPG-13
Store part #: C2759967
Package / case: MSOP-8-EP
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,475 in stock

#C2759967

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹46.01	₹230.05
50+	₹36.51	₹1,825.50
150+	₹32.45	₹4,867.50
500+	₹27.37	₹13,685.00
2,500+	₹25.11	₹62,775.00
5,000+	₹23.76	₹1,18,800.00

Quantity (min 5, multiples of 5)

5 × ₹46.01

₹230.05

excl. GST

₹271.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AP2151MPG-13

₹230.05 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Soft-start;Reverse current blocking
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 500mA
RDS(on): 95mΩ
Operating Voltage: 2.7V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.364 g

Overview

The AP2141 and AP2151 are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. This family of devices complies with USB 2.0 and is available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. All devices are available in SO-8, MSOP-8EP, SOT25 and UDFN2018-6 packages.

Applications

Consumer Electronics – LCD TV & Monitor, Game Machines
Communications – Set-Top Box, GPS, Smartphone
Computing – Laptop, Desktop, Servers, Printers, Docking Station, HUB

Key features

Single USB Port Power Switches
Over-Current and Thermal Protection
0.8A Accurate Current Limiting
Reverse Current Blocking
95mΩ On-Resistance
Input Voltage Range: 2.7V to 5.5V
0.6ms Typical Rise Time
Very Low Shutdown Current: 1μA (Max)
Fault Report (FLG) with Blanking Time (7ms Typ)
ESD Protection: 4kV HBM, 400V MM
Active High (AP2151) or Active Low (AP2141) Enable
Ambient Temperature Range -40°C to +85°C
SOT25, SO-8, MSOP-8EP (Exposed Pad), and U-DFN2018-6: Available in “Green” Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
15kV ESD Protection per IEC 61000-4-2 (With External Capacitance)
UL Recognized, File Number E322375 IEC60950-1 CB Scheme Certified
