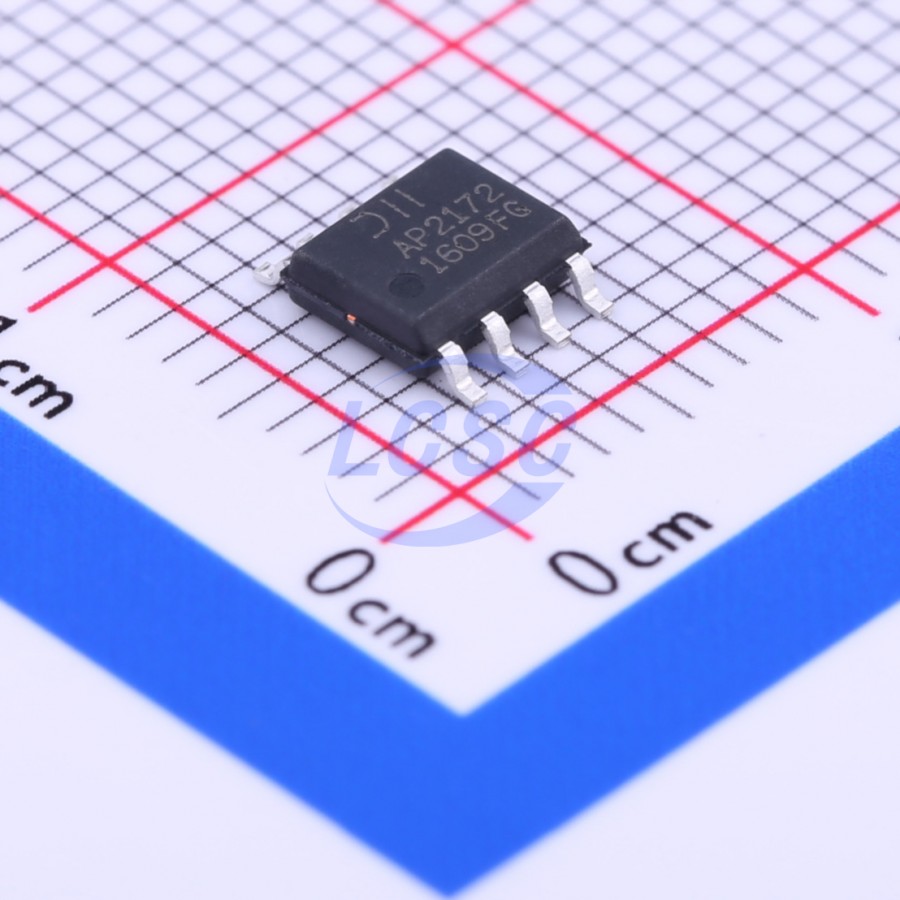

DIODES

AP2172SG-13

2 Active High 1A High Side Switch SOIC-8 Power Distribution Switches, Load Drivers RoHS

SOIC-8ROHS3 CompliantActive

Dual Channel Current-Limited Power Switch

Manufacturer: DIODES
Manufacturer part #: AP2172SG-13
Store part #: C264084
Package / case: SOIC-8
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,469 in stock

#C264084

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
1+	₹62.62	₹62.62
10+	₹51.32	₹513.20
30+	₹46.42	₹1,392.60
100+	₹40.26	₹4,026.00
500+	₹37.69	₹18,845.00
1,000+	₹36.00	₹36,000.00

Quantity (min 1)

1 × ₹62.62

₹62.62

excl. GST

₹73.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AP2172SG-13

₹62.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Soft-start
number of channels: 2
Control Input Logic: Active High
Maximum Continuous Current: 1A
RDS(on): 120mΩ
Operating Voltage: 2.7V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.411 g

Overview

The AP2162 and AP2172 are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. All devices are available in SO-8 and MSOP-8EP packages.

Applications

Consumer Electronics – LCD TV & Monitor, Game Machines
Communications – Set-Top-Box, GPS, Smartphone
Computing – Laptop, Desktop, Servers, Printers, Docking Station, HUB

Key features

Dual USB Port Power Switches
Over-Current and Thermal Protection
1.5A Accurate Current Limiting
Reverse Current Blocking
115mΩ On-Resistance
Input Voltage Range: 2.7V - 5.5V
0.6ms Typical Rise Time
Very Low Shutdown Current: 1μA (max)
Fault Report (FLG) with Blanking Time (7ms typ)
ESD Protection: 4.5KV HBM, 350V MM
Active High (AP2172) or Active Low (AP2162) Enable
Ambient Temperature Range -40°C to +85°C
SO-8 and MSOP-8EP (Exposed Pad): Available in “Green” Molding Compound (No Br, Sb) Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified
