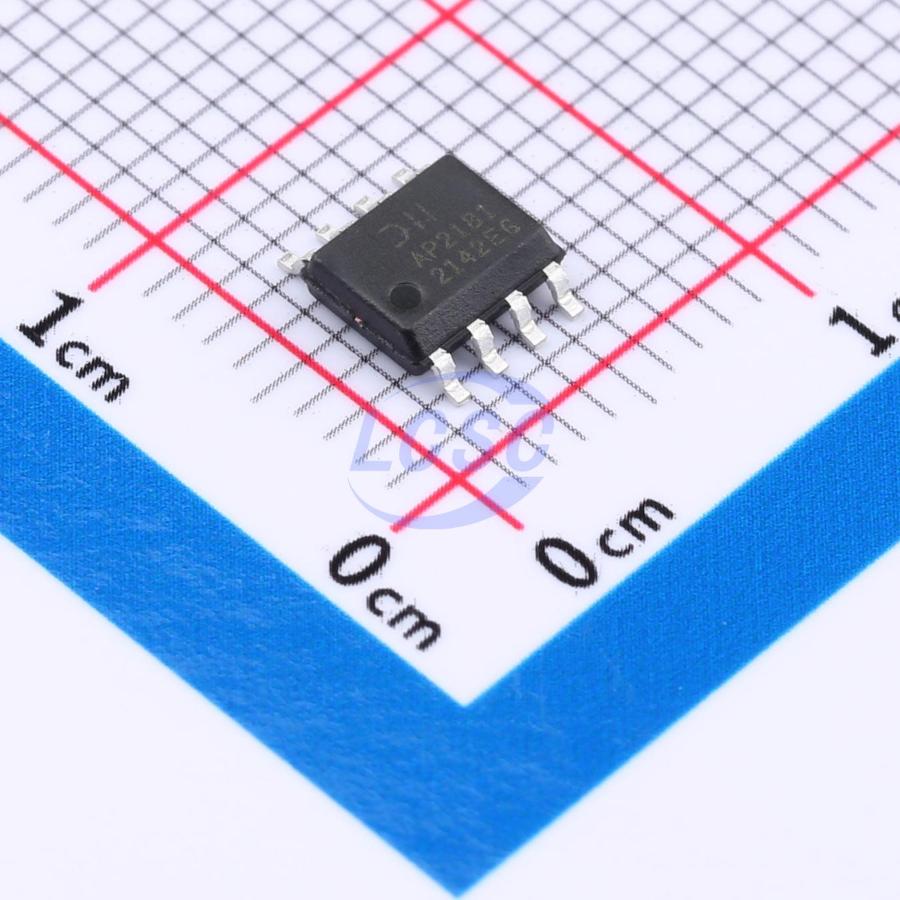

AP2181SG-13

The AP2181 and AP2191 are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and is available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. All devices are available in SO-8, MSOP-8EP, SOT25 and U-DFN2018-6 packages.

Applications

• Consumer Electronics – LCD TVs & Monitors, Game Machines
• Communications – Set-Top-Boxes, GPS Systems, Smartphones
• Computing – Laptops, Desktops, Servers, Printers, Docking Stations, HUBs

Key features

• Single USB Port Power Switches
• Over-Current and Thermal Protection
• 2.1A Accurate Current Limiting
• Reverse Current Blocking
• 95mΩ On-Resistance
• Input Voltage Range: 2.7V – 5.5V
• 0.6ms Typical Rise Time
• Very Low Shutdown Current: 1μA (max)
• Fault Report (FLG) with Blanking Time (7ms typ)
• ESD Protection: 4kV HBM, 300V MM
• Active Low (AP2181) or Active High (AP2191) Enable
• Ambient Temperature Range: -40°C to +85°C
• SOT25, SO-8, MSOP-8EP (Exposed Pad), and U-DFN2018-6: Available in “Green” Molding Compound (No Br, Sb)
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• UL Recognized, File Number E322375 IEC60950-1 CB Scheme Certified
