DIODESDatasheet (PDF)

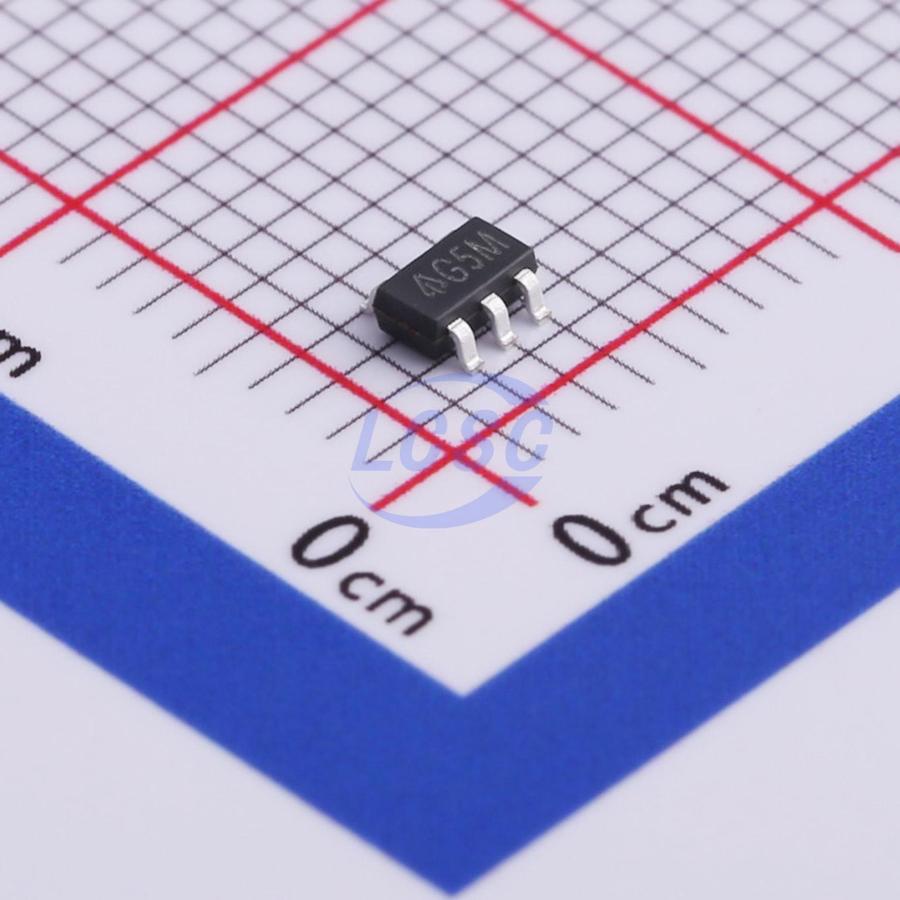

AP2210K-ADJTRG1
1.25V~12.7V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
300mA Low Noise Ultra Low Dropout Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP2210K-ADJTRG1
- Store part #
- C507874
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,225 in stock
#C507874
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.66 | ₹123.30 |
| 50+ | ₹20.80 | ₹1,040.00 |
| 150+ | ₹18.87 | ₹2,830.50 |
| 500+ | ₹17.41 | ₹8,705.00 |
| 3,000+ | ₹15.32 | ₹45,960.00 |
| 6,000+ | ₹14.74 | ₹88,440.00 |
5 × ₹24.66
₹123.30
excl. GST
₹145.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2210K-ADJTRG1
₹123.30 for 5 + GST
Specifications
- Output Voltage
- 1.25V~12.7V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 180uA
- Output Configuration
- Positive
- Operating Voltage
- 13.2V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Reverse-polarity current protection;Noise bypass terminal
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The AP2210 is a 300mA ULDO regulator which provides very low noise, ultra-low dropout voltage (typically 250mV at 300mA), very low standby current (1μA maximum), and excellent power supply ripple rejection (PSRR 75dB at 100Hz). This device is used in battery powered applications, such as handsets and PDAs; and in noise sensitive applications, such as RF electronics. The AP2210 also features individual logic compatible enable/shutdown control inputs, a low power shutdown mode for extended battery life, overcurrent protection, overtemperature protection, and reversed current protection. The AP2210 has 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 5.0V, and ADJ versions. The AP2210 is available in the space saving SOT-23-3 and SOT-23-5 packages.
Applications
- Cellular Phones
- Cordless Phones
- Wireless Communicators
- PDAs/Palmtops
- PC Motherboards
- Consumer Electronics
Key features
- Up to 300mA Output Current
- Excellent ESR Stability
- Low Standby Current
- Low Dropout Voltage: VDROP = 250mV at 300mA
- High Output Accuracy: ±1%
- Good Ripple Rejection Ability: 75dB at 100Hz and lour = 100μA
- Tight Load and Line Regulation
- Low Temperature Coefficient
- Over-Current Protection
- Thermal Protection
- Reverse Current Protection
- Logic-controlled Enable
- Moisture Sensitivity: Level 3 Per J-STD-020
- Totally Lead-Free; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
