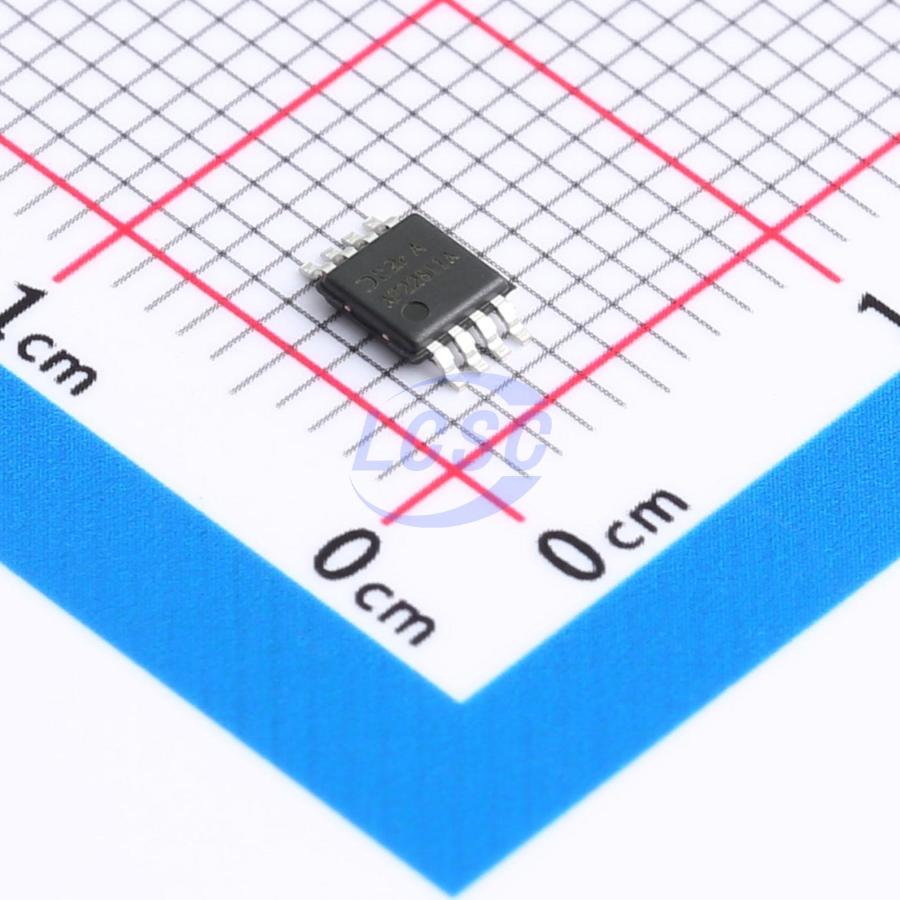

DIODES

AP22811AM8-13

High Side Switch 1 Channel 2A MSOP-8

MSOP-8ROHS3 CompliantActive

Single-channel power distribution load switch

Manufacturer: DIODES
Manufacturer part #: AP22811AM8-13
Store part #: C2150445
Package / case: MSOP-8
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,176 in stock

#C2150445

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹39.71	₹39.71
10+	₹35.03	₹350.30
30+	₹32.95	₹988.50
100+	₹30.35	₹3,035.00
500+	₹29.30	₹14,650.00
1,000+	₹28.61	₹28,610.00

Quantity (min 1)

1 × ₹39.71

₹39.71

excl. GST

₹46.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AP22811AM8-13

₹39.71 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Reverse voltage protection
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 2A
RDS(on): 50mΩ
Operating Voltage: 2.7V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.27 g

Overview

The DIODES AP22811 is a single channel current-limited integrated high-side power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with both polarities of Enable input. The device has fast short-circuit response time for improved overall system robustness, and has an integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and under-voltage lockout functionality. A 6ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. The AP22811 is available in standard Green SOT25 and MSOP-8 packages with RoHS compliance.

Applications

Integrated load switches in Ultrabook PC’s
Power up/down sequencing in Ultrabook PC’s
Notebooks
Netbooks
Set-top boxes
SSD (solid state drives)
Consumer electronics
Tablet PC
Telecom systems

Key features

Input Voltage Range: 2.7V to 5.5V
50mΩ On-Resistance
Built-in Soft-Start with 0.6ms Typical Rise Time
Fault Report (FLG) with Blanking Time (6ms Typ.)
ESD Protection: 2kV HBM, 200V MM
Active Low (B) or Active High (A) Enable Protection
Over Current with Auto Recovery
Short Circuit with Auto Recovery
Over Temperature with Auto Recovery
Output Reverse Current/Voltage Protection
Thermally Efficient Low Profile Package
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
