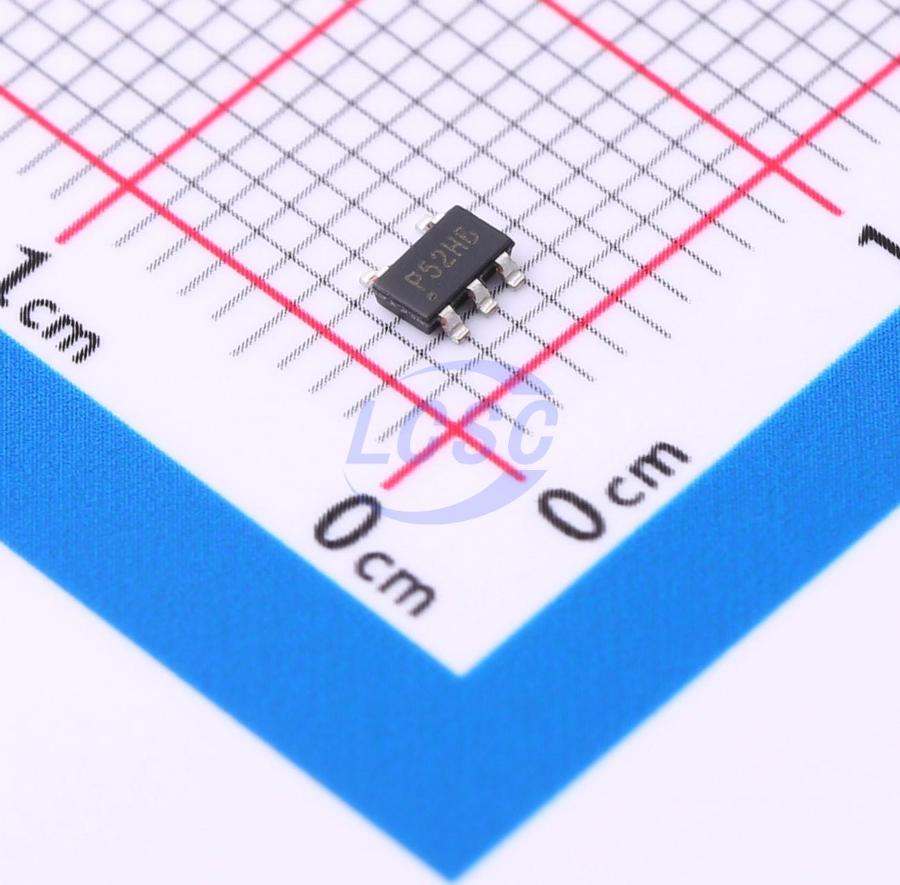

DIODES

AP22815AWT-7

1 3A High Side Switch TSOT-25 Power Distribution Switches, Load Drivers RoHS

TSOT-25ROHS3 CompliantActive

SINGLE CHANNEL POWER DISTRIBUTION SWITCH WITH OUTPUT OVP

Manufacturer: DIODES
Manufacturer part #: AP22815AWT-7
Store part #: C2150007
Package / case: TSOT-25
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,065 in stock

#C2150007

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹134.48	₹134.48
10+	₹109.05	₹1,090.50
30+	₹96.55	₹2,896.50
100+	₹80.39	₹8,039.00
500+	₹73.07	₹36,535.00
1,000+	₹69.18	₹69,180.00

Quantity (min 1)

1 × ₹134.48

₹134.48

excl. GST

₹158.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP22815AWT-7

₹134.48 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start
number of channels: 1
Control Input Logic: Active High;Active Low
Maximum Continuous Current: 3A
RDS(on): 40mΩ
Operating Voltage: 3V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.11 g

Overview

The AP22815/615 are 3A, single-channel, current-limited, high-side power switches with output overvoltage protection (OVP) optimized for USB and other hot-swap applications. The AP22815/615 comply with USB standards and are available with both polarities of Enable input. The devices also possess fixed and adjustable current-limited features optimized for applications requiring precise current-limiting support. They have USB PD3.0 fast role-swap functions, and the output voltage recovers to a valid USB voltage range within 110μs during the USB PD fast role-swap event. The devices have fast short-circuit and output overvoltage response times for improved system robustness. Both the TSOT25 and TSOT26 packages integrate discharge circuitry inside the OUT pin. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuits, and offer output overvoltage, reverse-current, overcurrent, overtemperature, and short-circuit protection, as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the open-drain flag output prevents false overcurrent, overvoltage, and overtemperature reporting, and does not require any external components. The AP22815 is available in a standard green TSOT25 package with RoHS compliancy. The AP22615 is available in a standard Green TSOT26 package with RoHS compliancy.
