DIODESDatasheet (PDF)

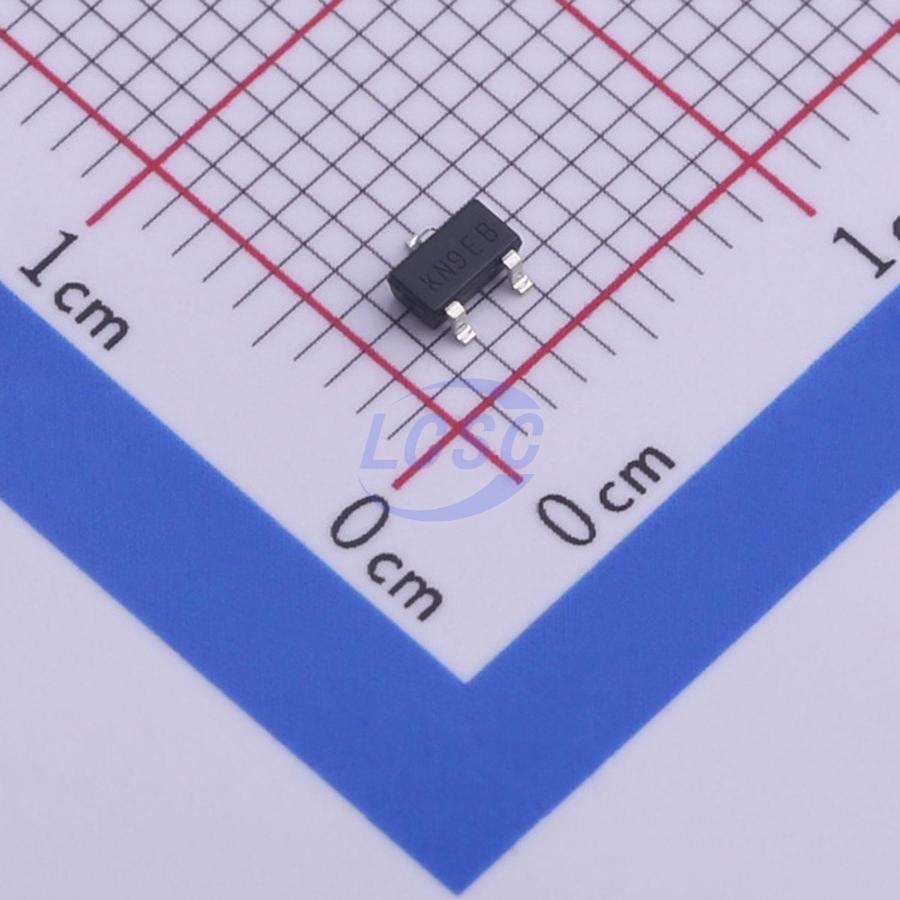

AP2331W-7
1 200mA 2.7V~5.2V SC-59 Current Regulation/Management RoHS
SC-59ROHS3 CompliantActive
Single-channel current-limiting load switch
- Manufacturer
- DIODES
- Manufacturer part #
- AP2331W-7
- Store part #
- C460346
- Package / case
- SC-59
- Category
- Current Regulation/Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,155 in stock
#C460346
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.43 | ₹142.15 |
| 50+ | ₹22.32 | ₹1,116.00 |
| 150+ | ₹19.70 | ₹2,955.00 |
| 500+ | ₹16.42 | ₹8,210.00 |
| 3,000+ | ₹14.61 | ₹43,830.00 |
| 6,000+ | ₹13.73 | ₹82,380.00 |
5 × ₹28.43
₹142.15
excl. GST
₹167.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2331W-7
₹142.15 for 5 + GST
Specifications
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start
- Number of Channels
- 1
- Maximum Continuous Current
- 200mA
- Voltage - Supply
- 2.7V~5.2V
- RDS(on)
- 250mΩ
- Operating Temperature
- -40℃~+85℃
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
The AP2331 is a single channel current-limited integrated high-side power switcher optimized for hot-swap applications. The devices have fast short-circuit response time for improved overall system robustness and provide a complete protection solution for application subject to heavy capacitive loads and the prospect of short circuit. It offers reverse-current blocking, over-current, over-temperature and shortcircuit protection, as well as controlled rise time and under-voltage lockout functionality. The device is available in SOT23, SC59 and U-DFN2020-3 packages.
Applications
- LCD TVs & Monitors
- Set-Top Boxes, Residential Gateways
- Laptops, Desktops, Servers
- Printers, Docking Stations, HUBs
- Smart Phones, e-Readers
Key features
- Input Voltage Range: 2.7V - 5.2V
- Fast Short-Circuit Response Time
- 0.4A Accurate Current Limiting
- 250mΩ On-Resistance
- Reverse-Current Blocking
- Built-In Soft-Start with 0.7ms Typical Turn-On Time
- Over-Current Protection
- Over-Voltage Protection
- Short-Circuit and Thermal Protection
- ESD Protection: 3KV HBM, 300V MM
- Ambient Temperature Range: -40°C to +85°C
- Available in “Green” Molding Compound (No Br, Sb)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- UL Recognized, File Number E322375
- IEC60950-1 CB Scheme Certified
