DIODES

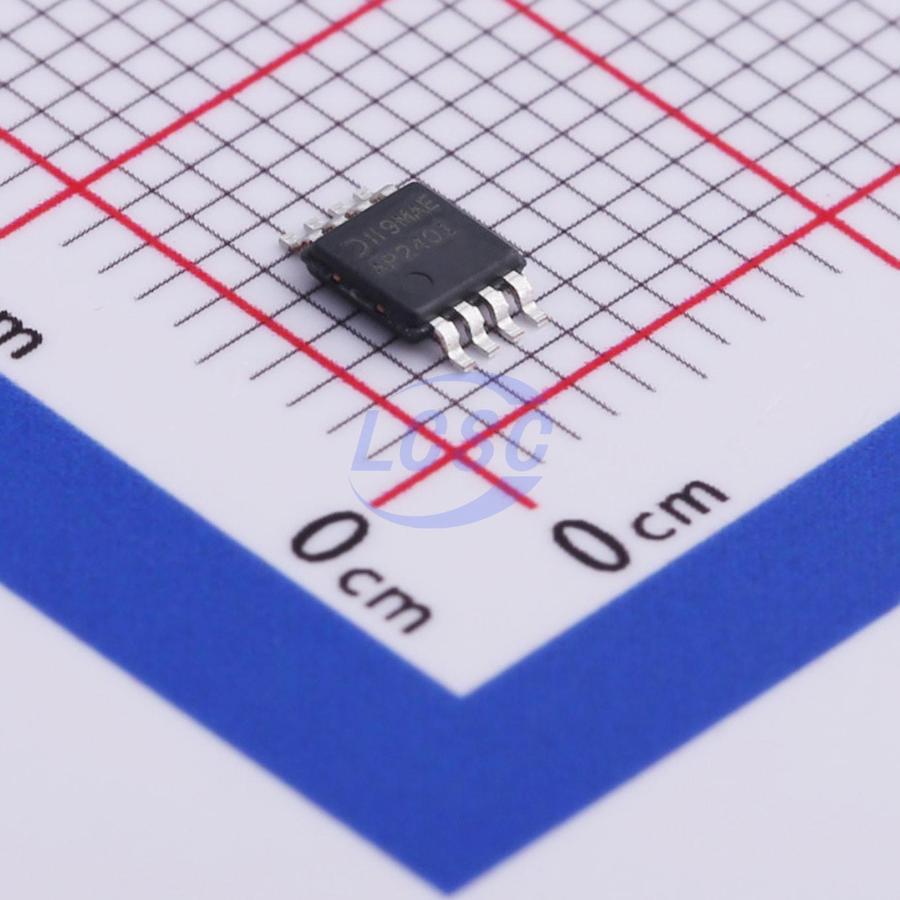

AP2401MP-13

1 Active Low 2A High Side Switch MSOP-8-EP Power Distribution Switches, Load Drivers RoHS

MSOP-8-EPROHS3 CompliantDiscontinued

Single Channel Current-Limited Power Switch with Latch-Off

Manufacturer: DIODES
Manufacturer part #: AP2401MP-13
Store part #: C507876
Package / case: MSOP-8-EP
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,300 in stock

#C507876

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹26.06	₹130.30
50+	₹22.94	₹1,147.00
150+	₹21.60	₹3,240.00
500+	₹19.94	₹9,970.00
2,500+	₹19.18	₹47,950.00
5,000+	₹18.75	₹93,750.00

Quantity (min 5, multiples of 5)

5 × ₹26.06

₹130.30

excl. GST

₹153.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AP2401MP-13

₹130.30 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Latch protection
number of channels: 1
Control Input Logic: Active Low
Maximum Continuous Current: 2A
Operating Voltage: 2.7V~5.5V
RDS(on): 70mΩ
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Discontinued
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.057 g

Overview

The AP2401 and AP2411 are single channel current-limited integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with both polarities of enable input. The devices have fast short-circuit response time for improved overall system robustness, and have integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. AP2401 and AP2411 will be latched off after 7ms deglitch. All devices are available in SO-8, MSOP-8, MSOP-8EP, U-DFN3030-8 and U-DFN2020-6 packages.

Applications

LCD TVs & Monitors
Set-Top-Boxes, Residential Gateways
Laptops, Desktops, Servers, e-Readers
Printers, Docking Stations, HUBs

Key features

Single Channel Current-Limited Power Switch
Output Discharge Function
Output Current Latch-Off when OCP Triggered
Fast Short-Circuit Response Time: 2µs
2.5A Accurate Current Limiting
Reverse Current Blocking
70mΩ On-Resistance
Input Voltage Range: 2.7V - 5.5V
Built-In Soft-Start with 0.6ms Typical Rise Time
Over-Current and Thermal Protection
Fault Report (FLG) with Blanking Time (7ms typ)
ESD Protection: 2kV HBM, 200V MM
Active Low (AP2401) or Active High (AP2411) Enable
Ambient Temperature Range: -40°C to +85°C
SO-8, MSOP-8, MSOP-8EP, U-DFN3030-8 and U-DFN2020-6: Available in “Green” Molding Compound (No Br, Sb)
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	AP2301MPG-13#C110467DIODES · MSOP-8-EP	DIODES	MSOP-8-EP	2,445	₹16.29 · 2,445 in stock	View
	AP2501MP-13#C2680474DIODES · MSOP-8-EP	DIODES	MSOP-8-EP	On request	Price on request	Quote
