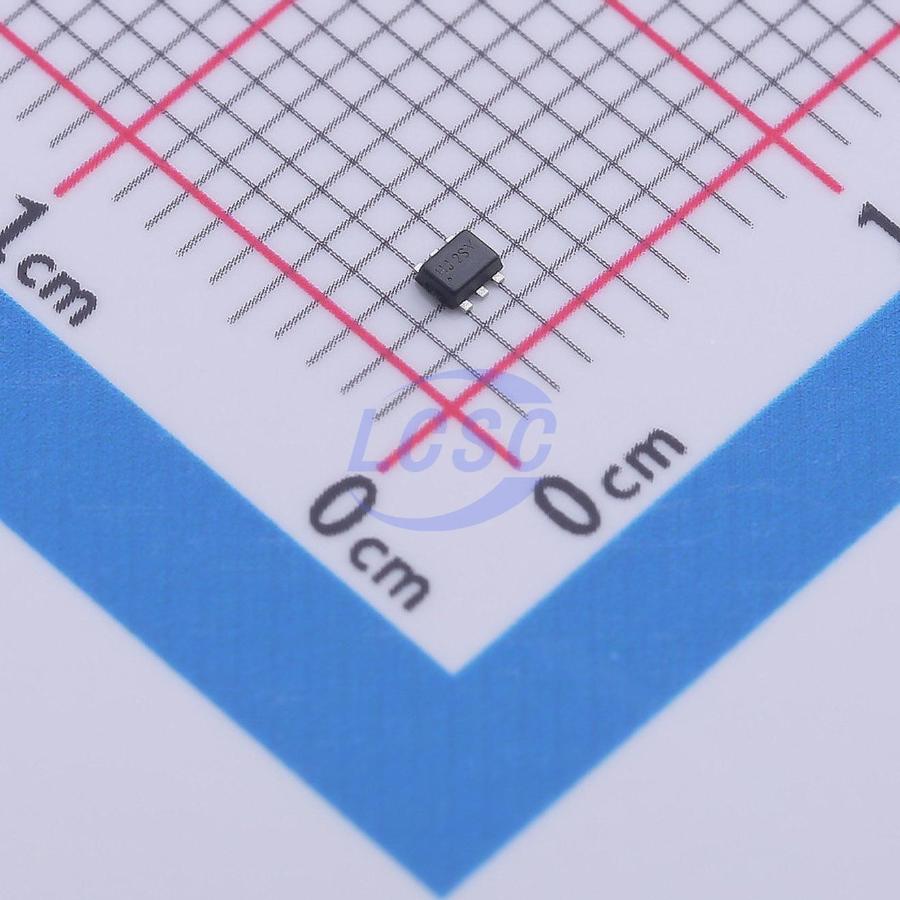

DIODES

AP61100Z6-7

2.2MHz Step-down type Adjustable 600mV~3.6V 1A SOT-563 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-563ROHS3 CompliantActive

1A Low IQ Synchronous Buck Converter

Manufacturer: DIODES
Manufacturer part #: AP61100Z6-7
Store part #: C1858397
Package / case: SOT-563
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,730 in stock

#C1858397

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹29.40	₹147.00
50+	₹23.76	₹1,188.00
150+	₹21.35	₹3,202.50
500+	₹18.34	₹9,170.00
3,000+	₹17.00	₹51,000.00
6,000+	₹16.19	₹97,140.00

Quantity (min 5, multiples of 5)

5 × ₹29.40

₹147.00

excl. GST

₹173.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP61100Z6-7

₹147.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Output discharge;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~3.6V
Output Current: 1A
Quiescent Current: 15uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.001 g

Overview

The DIODESTM AP61100/AP61102 is a 1A, synchronous buck converter with a wide input voltage range of 2.3V to 5.5V. The device fully integrates a 110mΩ high-side power MOSFET and an 80mΩ lowside power MOSFET to provide high-efficiency step-down DC-DC conversion. The AP61100/AP61102 device is easily used by minimizing the external component count due to its adoption of Constant On-Time (COT) control to achieve fast transient response, easy loop stabilization, and low output voltage ripple. The device is available in a SOT563 package.

Applications

5V distributed power bus supplies
White goods and small home appliances
FPGA, DSP, and ASIC supplies
Network video cameras
Wireless routers
Consumer electronics General purpose point of loads

Key features

VIN: 2.3V to 5.5V
Output Voltage (VOUT): 0.6V to 3.6V
1A Continuous Output Current
0.6V ±2% Reference Voltage
15μA Low Quiescent Current (Pulse Frequency Modulation)
2.2MHz Switching Frequency (VIN = 5V, VOUT = 1.8V)
Up to 89% Efficiency at 5mA Light Load
Programmable Operation Mode Through EN
Pulse Frequency Modulation
Pulse Width Modulation Regardless of Output Load
Power-Good Indicator
Protection Circuitry
Undervoltage Lockout (UVLO)
VIN Overvoltage Protection (OVP)
Peak Current Limit
Valley Current Limit
Thermal Shutdown
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
