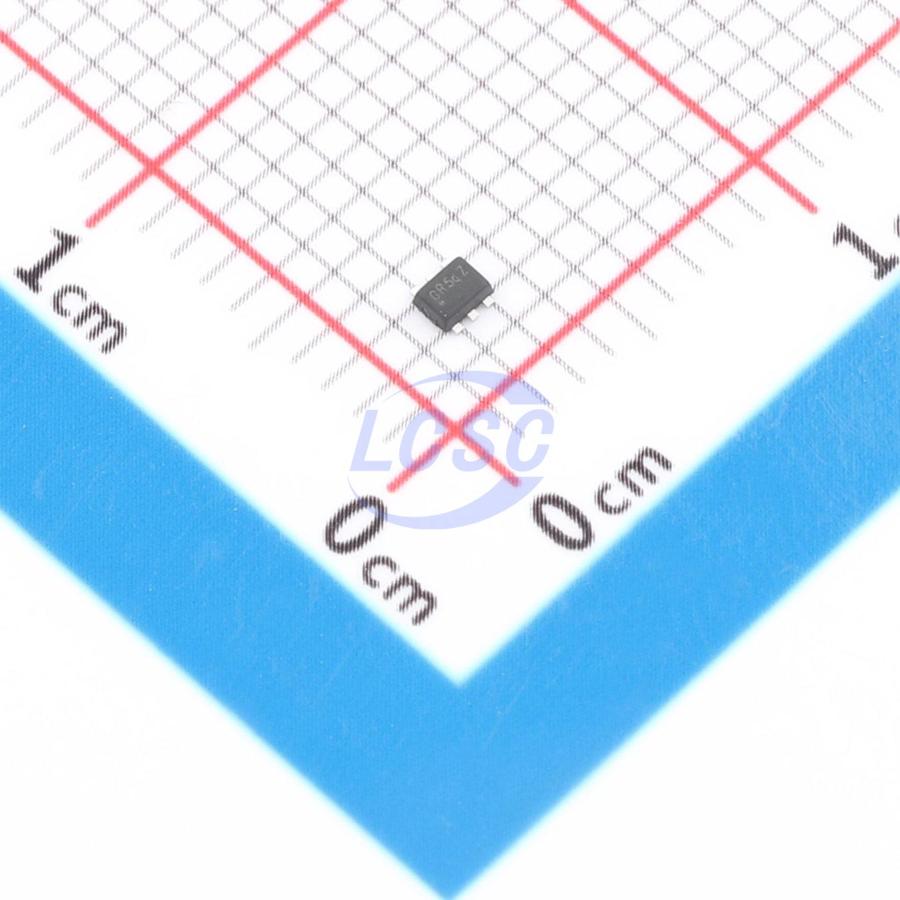

AP61203Z6-7

The DIODES AP61200 / DIODES AP61201 / DIODES AP61202 / DIODES AP61203 is a 2A, synchronous buck converter with a wide input voltage range of 2.3V to 5.5V. The device fully integrates a 110mΩ high-side power MOSFET and an 80mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion. The AP61200/AP61201/AP61202/AP61203 device is easily used by minimizing the external component count due to its adoption of Constant On-Time (COT) control to achieve fast transient response, easy loop stabilization, and low output voltage ripple. The device is available in a SOT563 package.

Applications

• 5V distributed power bus supplies
• White goods and small home appliances
• FPGA, DSP, and ASIC supplies
• Network video cameras
• Wireless routers
• Consumer electronics General purpose point of loads

Key features

• VIN: 2.3V to 5.5V
• Output Voltage (VOUT): 0.6V to 3.6V
• 2A Continuous Output Current
• 0.6V ±2% Reference Voltage
• 19μA Low Quiescent Current (Pulse Frequency Modulation)
• 1.3MHz Switching Frequency VIN = 5V, VOUT Δ = 1.8V
• Up to 89% Efficiency at 5mA Light Load Operation Mode Options
• Pulse Frequency Modulation: AP61200 and AP61202
• Force Pulse Width Modulation: AP61201 and AP61203
• Power-Good Indicator
• AP61202 and AP61203
• Protection Circuitry
• Undervoltage Lockout (UVLO)
• VIN Overvoltage Protection (OVP)
• Peak Current Limit
• Valley Current Limit
• Thermal Shutdown
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
