VBsemi ElecDatasheet (PDF)

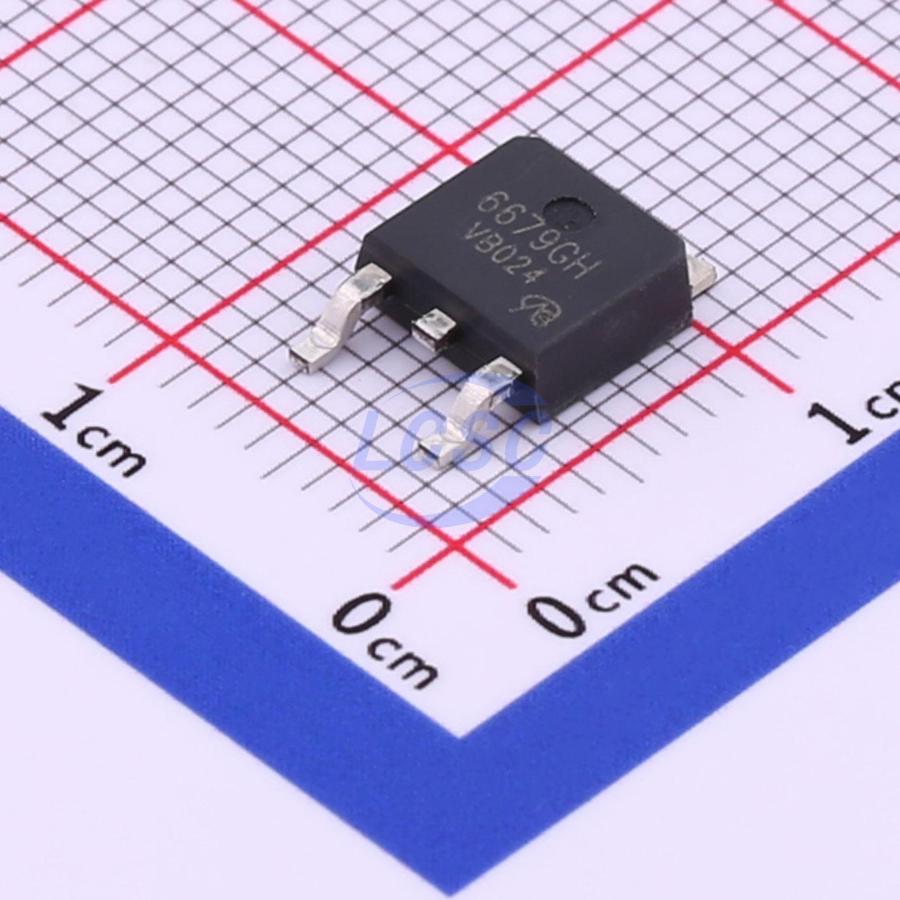

AP6679GH-VB
P-Channel 30V 58A 87W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 30V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP6679GH-VB
- Store part #
- C692963
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C692963
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.45 | ₹80.45 |
| 10+ | ₹66.47 | ₹664.70 |
| 30+ | ₹59.48 | ₹1,784.40 |
| 100+ | ₹52.50 | ₹5,250.00 |
| 500+ | ₹39.73 | ₹19,865.00 |
| 1,000+ | ₹37.53 | ₹37,530.00 |
1 × ₹80.45
₹80.45
excl. GST
₹94.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP6679GH-VB
₹80.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.565nF
- Current - Continuous Drain(Id)
- 58A
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 87W
- Reverse Transfer Capacitance (Crss)
- 715pF
- RDS(on)
- 9mΩ@10V;11mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 240nC@15V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.394 g
Overview
Key features
- Compliant to RoHS Directive2002/95/EC
- P-Channel MOSFET
