DIODES

AP7115-25WG-7

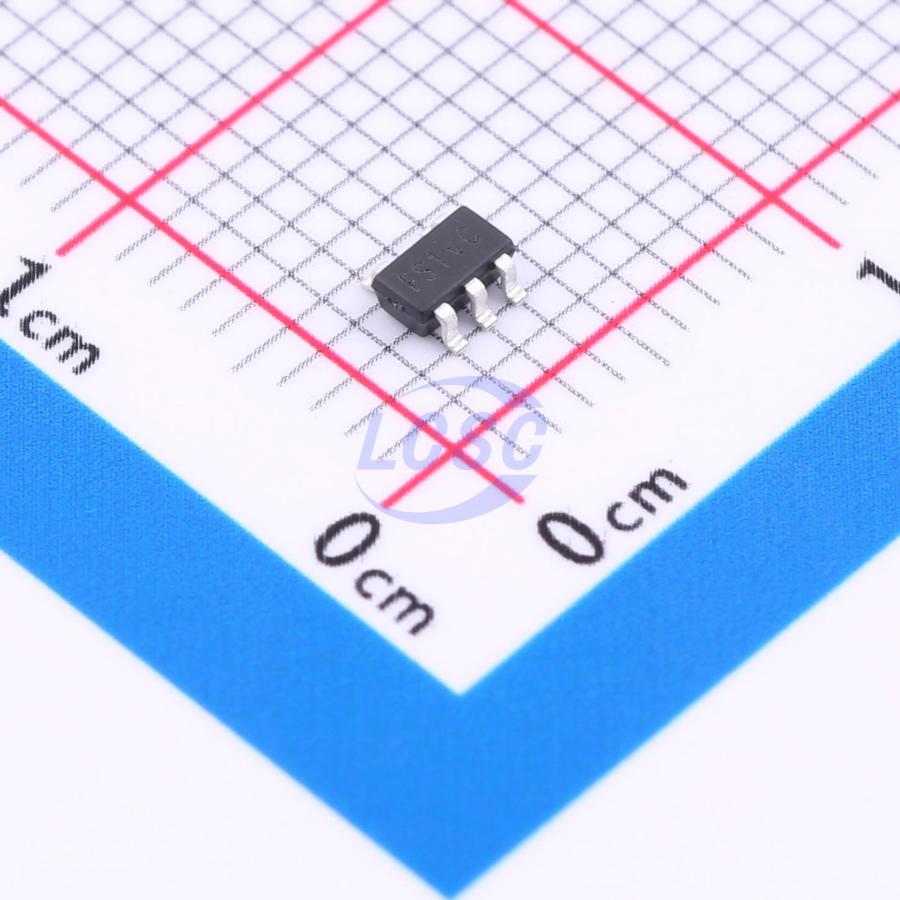

2.5V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25ROHS CompliantActive

150mA Low Dropout Linear Regulator with Shutdown

Manufacturer: DIODES
Manufacturer part #: AP7115-25WG-7
Store part #: C2978916
Package / case: SOT-25
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,870 in stock

#C2978916

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.34	₹56.70
50+	₹10.04	₹502.00
150+	₹9.39	₹1,408.50
500+	₹8.92	₹4,460.00
3,000+	₹8.52	₹25,560.00
6,000+	₹8.32	₹49,920.00

Quantity (min 5, multiples of 5)

5 × ₹11.34

₹56.70

excl. GST

₹66.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP7115-25WG-7

₹56.70 for 5 + GST

Specifications

Output Voltage: 2.5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 80uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 150mA
Features: Enable control;Noise bypass terminal;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.058 g

Overview

The AP7115 is a 150mA, fixed output voltage, low dropout linear regulator. The device includes pass element, error amplifier, band gap reference, current-limit and thermal shutdown circuit. The characteristics of low dropout voltage and low quiescent current make it suitable for use in battery powered devices. The typical quiescent current is approximately 50μA. Several fixed output voltages are available from 1.0V to 3.5V. Additional protection is provided with built-in current-limit and thermal-shutdown functions.

Applications

Wireless Communication
GSM/GPRS Cellular Phones
Handheld Mobile Devices
Battery Powered Devices
CD-ROM, DVD, and LAN Cards
PC and Notebook Peripherals

Key features

Wide Input Voltage Range from 2.5V to 5.5V
200mV Low Dropout Voltage at 150mA Output Current
Guaranteed 150mA Output Current
Low Quiescent Current 50μA
Output Voltage from 1.0V to 3.5V
±2% Output Voltage Accuracy
Low Temperature Drift at Output Voltage
High PSRR
Fast Transient Response
Current Limit Protection
Short Circuit Protection
Thermal Shutdown Protection
SOT25 and SOT353: Available in “Green” Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
