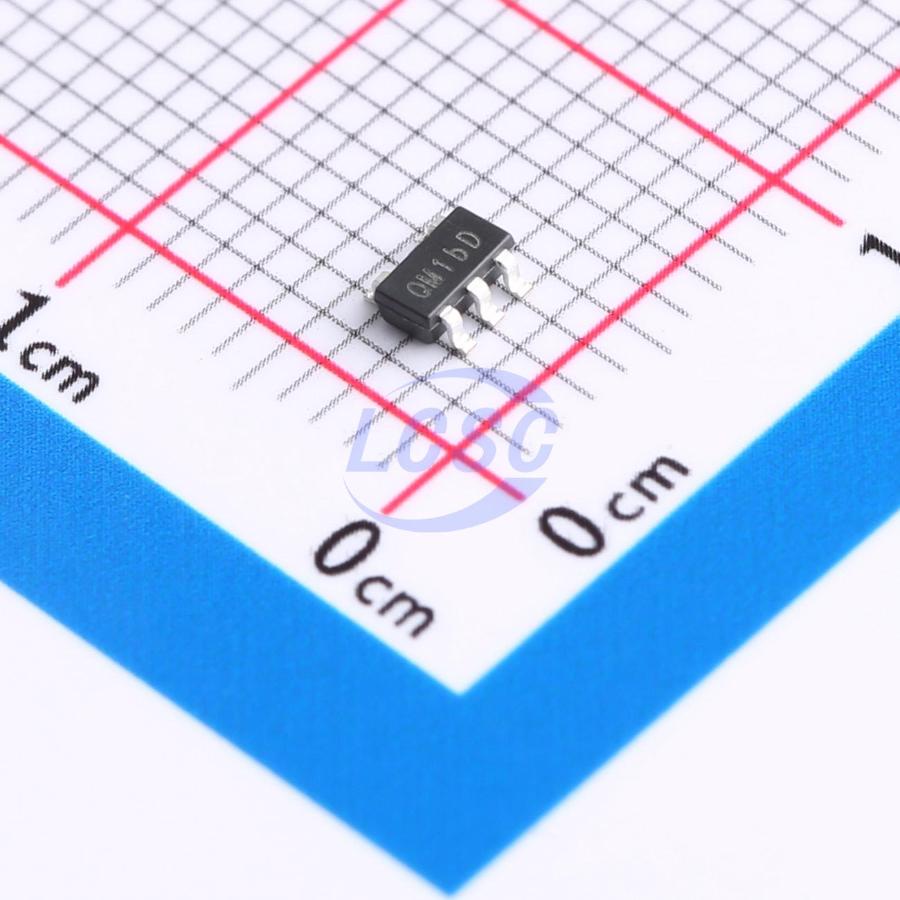

AP7331-15WG-7

1.5V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25ROHS3 CompliantActive

300mA, LOW QUIESCENT CURRENT, FAST TRANSIENT LOW DROPOUT LINEAR REGULATOR

Manufacturer: DIODES
Manufacturer part #: AP7331-15WG-7
Store part #: C156275
Package / case: SOT-25
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,610 in stock

#C156275

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.02	₹90.10
50+	₹14.97	₹748.50
150+	₹13.45	₹2,017.50
500+	₹12.31	₹6,155.00
3,000+	₹11.40	₹34,200.00
6,000+	₹10.95	₹65,700.00

Quantity (min 5, multiples of 5)

5 × ₹18.02

₹90.10

excl. GST

₹106.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP7331-15WG-7

₹90.10 for 5 + GST

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 65uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 6V
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The AP7331 is a 300mA, adjustable and fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7331 is available in SOT25 and DFN2020-6 packages.

Applications

XDSL Routers
Wireless LAN Cards
Desktop and Notebook Computers
Battery Powered Equipments

Key features

300mA Low Dropout Regulator with EN
Very low IQ over full load: 65μA
Wide input voltage range: 2V to 6V
Wide adjustable output: 0.8V to 5.0V
Fixed output options: 1.0V to 3.3V
PSRR: 65dB typical at 100Hz
Fast start-up time: 80μs
Stable with low ESR, 1μF ceramic output capacitor
Excellent Load/Line Transient Response
Low dropout: 300mV typical at 300mA
Current limit protection
Short circuit protection
Thermal shutdown protection
Ambient temperature range: -40°C to 85°C
SOT25 and DFN2020-6: Available in “Green” Molding Compound (No Br, Sb)
